SctApi Namespace Reference

Should probably move this out of SctApi pacakge and into SCT/src as this doesn't depend on anything in SctApi. More...

Data Structures

class ConfigUtility

compares ABCDModule structs and their sub-types More...

class CrateException

Exception to be thrown by public API methods. More...

class Crate

A representation of the crate controller. More...

struct RodStatus

class CrateImpl

A representation of the crate controller. More...

class DCSAccess

High level access to DCS. More...

class DCSAccessDummy

Provide dummy answers to everything... More...

class Idiosyncrasy

class Log

A logging class, just an ofstream that opens a fixed file. More...

class PrimBuilder

struct PrimListWrapper

Wrap the SctPixelRod::RodPrimList class. More...

class Scan

class ScanDefImpl

class ScanMonitor

High-level scan interface for use over IPC. More...

class ScanMonitorImpl

class PreLoadConfigurations

little class holds information for thread to load module configurations from config service The thread which starts with this object starts loading up the configurations from the config service, but does not send those to the ROD. More...

class SctApi

SctApi class. More...

class SctApiConfigCache

This is supposed to mirror the module configuration banks on the rod. More...

struct SctApiCounters

class SctApiDDC

class Debug

Manage debug options, singleton class. More...

class SctApiException

struct RodLabel

struct CrateLabel

struct ModuleMask

class RodScanEx

This information is used per ROD, stored in a map in ScanEx. More...

class ScanEx

Internal scan class with lots more information. More...

class ScanControl

Interface used by doScan to control and retrieve data from a histogram. More...

class ScanControlRODHisto

Control a histogram on a ROD. More...

class ScanControlTIMHisto

TIM takes control of sending the triggers. More...

class ScanControlAsyncHisto

SctApi delegates control of sending the triggers. More...

class RodInfo

class Trigger

class TriggerImpl

class IdiosyncrasyServer

Namespaces

namespace AutoConf

namespace ROOT

namespace Utility

Typedefs

typedef std::list< std::string > ModuleList

Enumerations

enum DebugOptions {
  DEBUG_DIAG, DEBUG_DIAG2, DEBUG_DUMP_PRIM_BINARY, DEBUG_DIAG_RESPONSE,
  DEBUG_MODULE_CONFIG, DEBUG_SAVE_PRIM, DEBUG_SAVE_HISTOGRAM, DEBUG_SAVE_RAW_CAPTURE,
  DEBUG_USE_RAW_PRIMITIVE, DEBUG_VERBOSE_PROBE, DEBUG_PRINT_IN_PRIM, DEBUG_PRINT_OUT_PRIM,
  DEBUG_PRINT_CALIB, DEBUG_PRINT_RAW, DEBUG_LOG_PRINT_PRIM, DEBUG_EXTRA_DUMPS,
  DEBUG_PRINT_UNKNOWN, DEBUG_BOC_SETUP, DEBUG_DUMP_RAW_EVENT, DEBUG_SCAN_ERROR_TRAP,
  DEBUG_SCAN_ERROR_TRAP_ALL, DEBUG_SCAN_AUTO_STALL, DEBUG_SCAN_STEP_MODE, DEBUG_SCAN_PAUSE_PULSE,
  DEBUG_SCAN_ROD_MODE_BITS, DEBUG_SCAN_USE_CCODE, DEBUG_TIM_SCAN_STATUS, DEBUG_API_CONFIG_CACHE_CHECK,
  DEBUG_API_CONFIG_CACHE_SEND, DEBUG_API_CONFIG_NO_COPY, DEBUG_CALIB_NO_SLINK, DEBUG_CALIB_RTR_STOP_OUTPUT,
  DEBUG_END_OPTIONS
}

Possible options for the Debug class. More...

enum BankType { SCTAPI_BANK_PHYSICS, SCTAPI_BANK_SCAN, SCTAPI_BANK_CALIBRATION }

enum ConfigType {
  SCTAPI_CONFIG_NONE, SCTAPI_CONFIG_BASIC, SCTAPI_CONFIG_TRIM, SCTAPI_CONFIG_MASK,
  SCTAPI_CONFIG_CFG, SCTAPI_CONFIG_OTHER, SCTAPI_CONFIG_ALL
}

enum RunType { SCTAPI_RUN_PHYSICS, SCTAPI_RUN_CALIBRATION }

enum EventFormatType { SCTAPI_EVENT_FORMAT_NORMAL, SCTAPI_EVENT_FORMAT_EXPANDED, SCTAPI_EVENT_FORMAT_RAW }

Functions

void printOutList (unsigned long *result, unsigned long length, bool in, int level, ostream &stream, bool dumpUnknown, bool dumpRaw)

void printOutList (unsigned long *primList, unsigned long length, bool in, int level, std::ostream &stream, bool dumpUnknown, bool dumpRaw)

Should this be somewhere else (eg Sct).

SctApi (const Idiosyncrasy &id)

SctApi (const Idiosyncrasy &id, boost::shared_ptr< Configuration > newConf)

This is the "USUAL" constructor that is used.

~SctApi ()

bool isInitialised ()

SctApiConfigCache & getModuleConfigCache ()

const Idiosyncrasy & idiosyncrasy ()

const std::string getHostName () const

bool hasFinishedScanning ()

void setup ()

void setMrsStream (MRSStream *stream)

void setIsDictionary ()

unsigned long readRodStatusReg (unsigned int rod, long regNumber)

unsigned long readRodCommandReg (unsigned int rod, long regNumber)

unsigned long dspSingleRead (unsigned int rod, const unsigned long dspAddr, long dspNumber)

void dspSingleWrite (unsigned int rod, unsigned long dspAddr, unsigned long value, long dspNumber)

ABCDModule * lookupConfig (UINT32 mid)

void cacheModuleConfig (UINT32 mid, std::string moduleName)

ABCDModule * retrieveModule (UINT32 mid)

void createDebugPrimList ()

void addDebugPrimList (unsigned long length, long index, long id, long version, unsigned long *body)

void sendDebugPrimList (unsigned int rod)

void sendDebugPrimListAll ()

void sendDebugSlavePrimList (unsigned int rod, unsigned int slave, bool await, bool response)

void debugPrimListFromFile (string fileName)

void dumpDebugPrimList ()

int initialiseModule (string modulename, bool toRod)

int initialiseRod (unsigned int rod)

void initialiseAll (int run)

void initialisationThread ()

void startSlave (unsigned int rod, unsigned int slave)

void setRunNumber (UINT32 newRun)

void setScanNumber (UINT32 newScan)

UINT32 getRunNumber ()

UINT32 getScanNumber ()

ModuleList getModuleList ()

bool isRODPresent (unsigned int rod)

void startupModules ()

void autoConfigure ()

void sendPrimList (unsigned int rod, shared_ptr< PrimListWrapper > prim)

int synchSendPrimList (unsigned int rod, shared_ptr< PrimListWrapper > primList, int timeout)

void sendPrimListAll (shared_ptr< PrimListWrapper > prim)

int synchSendPrimListAll (shared_ptr< PrimListWrapper > primList, int timeout)

void dumpPrimList (shared_ptr< PrimListWrapper > prim)

void shutdownAll ()

void sendSlavePrimList (unsigned int rod, shared_ptr< PrimListWrapper > prim, unsigned int slaveNumber, bool await, bool response)

Crate * getCrate () const

int awaitResponse (unsigned int rod, int timeout)

int awaitResponseAll (int timeout)

unsigned long * getResponse (unsigned int rod, unsigned long &length)

bool getRodMessage (unsigned int rod, char *buffer, unsigned long &length)

UINT32 findModule (string sn)

string convertToString (UINT32 mid)

UINT32 findModule (INT32 mur, INT32 module)

pair< INT32, INT32 > convertToMUR (UINT32 mid)

UINT32 findBarrelModule (INT32 barrel, INT32 row, INT32 number)

void convertToBarrelModule (UINT32 mid, UINT32 &barrel, UINT32 &row, int &number)

UINT32 findEndcapModule (INT32 disk, INT32 ring, INT32 number)

void convertToEndcapModule (UINT32 mid, INT32 &disk, UINT32 &ring, UINT32 &number)

void loadConfiguration ()

void loadConfiguration (string filename)

unsigned preloadModuleConfigurations ()

int loadModuleConfigurations ()

void storeModuleConfigurations (BankType bank)

void storeBOCConfigurations ()

void configureBOC (unsigned int rod)

std::vector< double > getBOCMonitorArray (unsigned int rod)

std::string status ()

void defaultScan (int type)

void tidyHistogramming ()

void abortScan ()

void rodMode (unsigned int rod, int mode, int flag, int fifoSetup, int nBits, int delay, int message)

void setupModuleMask (unsigned int rod, int port, int slvs)

void setupModuleMask (int port, int slvs, boost::shared_ptr< PrimListWrapper > primList)

void calib_init ()

void print_calib (unsigned int rod)

unsigned long sendTimBurst (unsigned long count, int random, bool external)

unsigned long sendTriggers (const Trigger *trig, unsigned long count, int scan_point)

void sendRodTrigger (unsigned int rod, const Trigger *trig, unsigned long count, int scan_point)

void sendL1A (unsigned int rod, bool capture)

void bocHistogram (unsigned int rod, unsigned int samples, unsigned int numLoops)

void printABCDModule (int mid)

void printABCDRodModule (int mid, BankType bank)

void modifyTIMParam (unsigned int type, unsigned int val)

void modifyBOCParam (unsigned int type, unsigned int val)

void modifyBOCParam (unsigned int rod, unsigned int channel, unsigned int type, unsigned int val)

void printBOCSetup (unsigned int rod)

vector< BOCChannelConfig > currentBOCSetup (unsigned int rod)

void printBOCRegisters (unsigned int rod)

BOCGlobalConfig currentBOCRegisters (unsigned int rod)

void saveBOCSetup (unsigned int rod, BankType bank)

void saveBOCRegisters (unsigned int rod, BankType bank)

void restoreBOCSetup (unsigned int rod, BankType bank)

void restoreBOCRegisters (unsigned int rod, BankType bank)

void lasersOff ()

void timSetFrequency (double trigFreq, double rstFreq)

double timGetTriggerFrequency ()

double timGetResetFrequency ()

void freeTriggers ()

void stopTriggers ()

void timL1A ()

void timCalL1A (int delay)

void timSoftReset ()

void timBCReset ()

void timLoadSequence (const vector< unsigned > &seq)

unsigned long timRunSequence (unsigned long trigs, int random, bool external)

void timVerbose ()

void timWriteRegister (int reg, UINT16 val)

UINT16 timReadRegister (int reg)

void decodeConfig (unsigned int rod, bool skipTrim, bool bypass)

void getrpcrc (UINT32 mid, unsigned int &rpartition, unsigned int &rcrate, unsigned int &rrod, unsigned int &rchannel)

long getRodSlot (unsigned int rod)

int getRodRevision (unsigned int rod)

int getRodRevision (const RodLabel &label)

void testLinkOutSelect (unsigned int rod, unsigned int link)

unsigned int testLinkOutRetrieve (unsigned int rod)

void setDebugOption (std::string opt)

void unsetDebugOption (std::string opt)

std::list< std::string > listEnabledDebugOptions () const

std::vector< std::string > listDebugOptions () const

void unsetBusy ()

bool checkDebugOption (std::string opt) const

bool checkDebugOption (int intOpt) const

void debugStepHistogram ()

void debugContinueHistogram ()

void debugAbortHistogram ()

void standardRegisterDump (RodLabel rl)

void standardRegisterDump (unsigned int rod)

void standardRegisterDumpAll ()

void setupScanMasks (ScanEx &extra, int distSlave, bool dual)

bool checkModuleListsForScan ()

bool preScanHardwareCheck (const Scan &scan, ScanEx &extra)

void preScanModuleSetup (const Scan &scan)

void resumePolling ()

void stopPolling ()

SctApiDDC * getSctApiDDC () const

void updateISStats ()

void insertISStats ()

int dspBlockDump (unsigned int rod, long dspStart, long numWords, long dspNumber, bool usePrim)

int dspBlockDumpFile (unsigned int rod, long dspStart, long numWords, long dspNumber, string filename, bool usePrim)

unsigned long * dspBlockRead (unsigned int rod, long dspStart, long numWords, long dspNumber, unsigned long &length, bool usePrim)

int dspBlockWrite (unsigned int rod, unsigned long *buffer, unsigned long dspAddress, long numWords, long dspNumber, bool usePrim)

unsigned long dspSingleBlockRead (unsigned int rod, long dspStart, long dspNumber)

void dspSingleBlockWrite (unsigned int rod, unsigned long dspAddress, unsigned long val, long dspNumber)

void setSlaveBlock (unsigned int rod, int s, long sAdd, int words, long value, bool usePrim)

unsigned long * primReadSlaveDsp (unsigned int rod, int s, int add, int words)

void primWriteSlaveDsp (unsigned int rod, int s, int add, int numWords, unsigned long *data)

shared_array< unsigned long > loadFile (string fileName, unsigned long &length)

void writeSlaveFile (unsigned int rod, unsigned int slave, const string fileName, unsigned long address, bool usePrim)

UINT32 eventWord (const UINT32 *const buffer, const int frame, const int index)

bool hasPostSeptember2004Firmware (const UINT32 *const frameBuffer, const int frame)

Only apply the following method to NON ERROR events.

int findEOF (UINT32 *buffer, int startFrame)

void scanEvents (unsigned int rod, int sl, bool extFlag, bool errorType)

void decodeEvent (unsigned int rod, int slave, int index, bool extFlag, bool errorType)

void reportEventErrors ()

UINT32 * readEventBuffer (unsigned int rod, int slave, bool extFlag, bool errorType)

int getLastEventFrame (unsigned int rod, int slave)

bool changeRunMode (enum RunType mode)

bool changeEventFormat (enum EventFormatType format)

int useCCode (const SctApi &api, const Scan &scan)

AJB.

void validateScan (boost::shared_ptr< const Scan > scan)

boost::shared_ptr< ScanMonitor > startAsyncScan (boost::shared_ptr< const Scan > scan)

boost::shared_ptr< ScanControl > startScan (boost::shared_ptr< const Scan > constScan, bool pollTriggers)

void doScan (boost::shared_ptr< const Scan > scan)

void awaitScan ()

void scanLoop ()

void scanPollingThread ()

void setupEventTrapping (const Scan &scan, const ScanEx &ex, const RodLabel rod, boost::shared_ptr< PrimListWrapper > primList)

void setupEventDump (const Scan &scan, const ScanEx &ex, const RodLabel rod, boost::shared_ptr< PrimListWrapper > primList)

void startEventTrapping (const Scan &scan, const ScanEx &ex, const RodLabel rod, shared_ptr< PrimListWrapper > primList)

void setupHistogramming (const Scan &scan, const ScanEx &ex, const RodLabel rod, bool tim, boost::shared_ptr< PrimListWrapper > primList)

void startHistogramTask (const Scan &scan, const ScanEx &ex, const RodLabel rod, unsigned int startBin, unsigned int nBins, unsigned int nTrigs, boost::shared_ptr< PrimListWrapper > primList)

void stopHistogramming (const ScanEx &ex)

void readHistogramToFile (const Sct::UCID &ucid, const Scan &scan, const ScanEx &ex, UINT32 mid, std::string sn, scan_result_ptrs scanData, time_t saveTime, int frame=0)

Read the histogram data in to a file.

void saveHistogramToFile (scan_result_ptrs histo, std::string filename)

Write a histogram to a file.

void readHistogramToIS (const Sct::UCID &ucid, const Scan &scan, const ScanEx &ex, UINT32 mid, scan_result_ptrs scanData)

Read the histogram data in to IS.

int pollHistogramming (boost::shared_ptr< ScanControl > controller, int timeout)

void doHistogramSetup (const Scan &scan, const ScanEx &extra)

void eventTrapSetup (int slaveMask, int trapMatch, int trapMod, int trapRemain, bool tim, bool error, boost::shared_ptr< PrimListWrapper > primList)

void startEventTrap (int slaveNumber, boost::shared_ptr< PrimListWrapper > primList)

void stopEventTrap (int slaveNumber, boost::shared_ptr< PrimListWrapper > primList)

void writeRODRegister (unsigned int rod, int reg, int off, int width, int value)

unsigned int readRODRegister (unsigned int rod, int r)

int pollRegister (unsigned int rod, int r, int off, int width, int val, int timeout)

unsigned long * readFifo (unsigned int rod, int id, int bank, int elems)

void echo (unsigned int rod, unsigned int length, const unsigned long *data)

void echoAll (unsigned int length, const unsigned long *data)

void echoSlave (unsigned int rod, unsigned int slave, unsigned int length, const unsigned long *data)

void flashLED (unsigned int rod, long slaveNumber, long period, long flashes)

pair< UINT32, UINT32 > sendData (unsigned int rod, int type, int dsp)

void getABCDModules (BankType bank_type)

void getABCDModule (UINT32 mid, BankType bank_type)

void printBanks (list< BankType > banks, ostream &os)

void copyABCDModules (BankType source, list< BankType > to)

void copyABCDModule (UINT32 mid, BankType source, list< BankType > to)

void setABCDModule (UINT32 mid, list< BankType > bank_list)

void really_getABCDModule (UINT32 mid, BankType bank_type)

boost::shared_ptr< ABCDModule > getABCDModuleRaw (unsigned int rod, UINT32 slot, BankType bank_type)

void setABCDModules (list< BankType > banks)

void really_setABCDModule (UINT32 mid, list< BankType > bank_list, UINT32 api_cfg_type_bitfield)

void setErrorMasks ()

void sendAllABCDModules (BankType bank_type, ConfigType config_type, const bool enableDataMode)

void sendABCDModule (UINT32 mid, BankType bank_type, ConfigType config_type, const bool enableDataMode)

void modifyABCDVarROD (UINT32 mid, UINT32 chip, UINT32 type, FLOAT32 value, list< BankType > banks)

void modifyABCDVarROD (UINT32 mid, UINT32 type, FLOAT32 value, list< BankType > banks)

void modifyABCDVarROD (UINT32 type, FLOAT32 value, list< BankType > banks)

void printBanks (list< BankType > banks, std::ostream &os)

void setAutoUpdateBanks (std::list< BankType > banks)

void modifyABCDMask (UINT32 mid, UINT32 *mask)

void modifyABCDRC (UINT32 mid, UINT32 chip, UINT16 index, FLOAT32 p0, FLOAT32 p1, FLOAT32 p2)

void modifyABCDTrims (UINT32 mid, UINT8 *trims)

void modifyABCDVar (UINT32 typ, FLOAT32 val)

void modifyABCDVarAllModulesOneChip (UINT32 chip, UINT32 typ, FLOAT32 val)

void modifyABCDVar (UINT32 mid, UINT32 typ, FLOAT32 val)

void modifyABCDVar (UINT32 mid, UINT32 chip, UINT32 typ, FLOAT32 val)

const std::list< RodLabel > listRods () const

void addRodToList (RodLabel newRod)

RodInfo & getRodInfo (const RodLabel &l)

int setupRawData (unsigned int rod, int delay, int units, bool setMask, const Trigger *trig)

void dumpRawEvent (unsigned int rod, int units, unsigned long *bufferA, unsigned long *bufferB)

static int lookupFifoHit (UINT16 *bufA, UINT16 *bufB, int channel, int pos)

Is there a hit at a position.

void rawData (unsigned int rod, int delay, int units, bool setMask, const Trigger *trig)

void doRawScan (boost::shared_ptr< Scan > scan, int delay, int width, bool configure, bool clkBy2)

void doRawScanThread (boost::shared_ptr< Scan > scan, int delay, int width, bool configure, bool clkBy2)

void doRawScanThreadInnards (boost::shared_ptr< Scan > scan, int delay, int width, bool configure, bool clkBy2)

void readRawData (unsigned int rod, int delay, bool setMask)

vector< char > probeWithTrigger (unsigned int rod, const Trigger *trigger, signed int harness)

vector< char > probe (unsigned int rod, signed int harness)

vector< vector< char > > probeScan (unsigned int rod, boost::shared_ptr< Scan > scan, signed int harness)

bool checkAllModulesProbe (string value)

Variables

static const short tokens [20]

const char * chipRoles []

SctApiCounters publishedStats

SctApiCounters currentStats

static const int numSlaves

static const unsigned long rodMapSize

static const unsigned long timMapSize

SctApiCounters currentStats

const int eventSize

const int eventWords

const int frameCount

Detailed Description

Should probably move this out of SctApi pacakge and into SCT/src as this doesn't depend on anything in SctApi.

SctApi provides most of the high level access to the ROD used by the SCT.

Scan is a class which describes a Scan to be carried out on the modules attached to the system.

Trigger describes a single trigger which forms an event in a scan.

Enumeration Type Documentation

enum SctApi::DebugOptions

Possible options for the Debug class.

Definition at line 15 of file SctApiDebug.h.

Function Documentation

void SctApi::calib_init ( )

new style calib_init
Definition at line 2720 of file SctApi.cxx.
References checkDebugOption(), SctApi::PrimBuilder::instance(), SctApi::PrimBuilder::rodMode(), setupModuleMask(), synchSendPrimListAll(), and SctApi::PrimBuilder::writeRegister().
Referenced by changeRunMode(), and preScanModuleSetup().

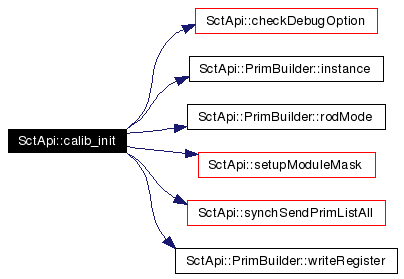

Here is the call graph for this function:

void SctApi::copyABCDModule ( UINT32 mid,

BankType source,

list< BankType > to

)

toy prim list
Definition at line 179 of file SctApiMConf.cxx.

bool SctApi::hasPostSeptember2004Firmware ( const UINT32 *const frameBuffer,

const int frame

)

Only apply the following method to NON ERROR events.
Otherwise it will look at the BCID not the version !!!
Definition at line 54 of file SctApiEvent.cxx.
References eventWord().
Referenced by reportEventErrors().
Here is the call graph for this function:

static int SctApi::lookupFifoHit ( UINT16 * bufA,

UINT16 * bufB,

int channel,

int pos

) [static]

Is there a hit at a position.

Definition at line 148 of file SctApiRaw.cxx.
References lookupFifoHit().
Referenced by lookupFifoHit(), and rawData().
Here is the call graph for this function:

void SctApi::printOutList ( unsigned long * primList,

unsigned long length,

bool in,

int level,

std::ostream & stream,

bool dumpUnknown,

bool dumpRaw

)

Should this be somewhere else (eg Sct).

Parameters:

primList The list as a block of words

lenth Length of the block of words

in Is this an input list (hence negating the method name!

void SctApi::SctApi::readHistogramToFile ( const Sct::UCID & ucid,

const Scan & scan,

const ScanEx & ex,

UINT32 mid,

std::string sn,

scan_result_ptrs scanData,

time_t saveTime,

int frame = 0

)

Read the histogram data in to a file.

Definition at line 1662 of file SctApiHisto.cxx.
References SctApi::Scan::getOption().
Referenced by SctApi::ScanControlRODHisto::readHistograms().

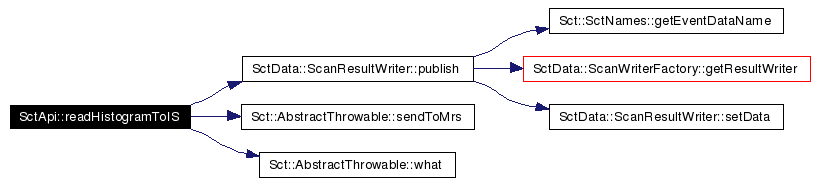

Here is the call graph for this function:

void SctApi::SctApi::readHistogramToIS ( const Sct::UCID & ucid,

const Scan & scan,

const ScanEx & ex,

UINT32 mid,

scan_result_ptrs scanData

)

Read the histogram data in to IS.

Definition at line 1722 of file SctApiHisto.cxx.
References SctData::ScanResultWriter::publish(), Sct::AbstractThrowable::sendToMrs(), and Sct::AbstractThrowable::what().
Referenced by SctApi::ScanControlRODHisto::readHistograms().
Here is the call graph for this function:

void SctApi::SctApi::saveHistogramToFile ( scan_result_ptrs histo,

std::string filename

)

Write a histogram to a file.

Definition at line 1699 of file SctApiHisto.cxx.
References scan_result_ptrs::data, scan_result_ptrs::header, ScanHeader::length, scan_result_ptrs::nErrorEvents, scan_result_ptrs::nEvents, ScanHeader::pntData, ScanHeader::pntErrors, ScanHeader::pntEvents, ScanHeader::pntPoints, scan_result_ptrs::points, and ScanHeader::size.

SctApi::SctApi ( const Idiosyncrasy & id,

boost::shared_ptr< Configuration > newConf

)

This is the "USUAL" constructor that is used.

Definition at line 121 of file SctApi.cxx.
References setup().
Here is the call graph for this function:

int SctApi::useCCode ( const SctApi & api,

const Scan & scan

)

AJB.
"Intellegent" function which works out if the CCode histogramming needs to be used. Returns true if either :

the debug option to use CCODE is set or
the scan "needs" CCODE because as of at 26/7/2005: -- synch trigs fails with assembly -- full histograms require ccode -- OPE currently requires ccode

Definition at line 72 of file SctApiHisto.cxx.
References SctApi::Scan::getOption().
Referenced by SctApi::ScanControlRODHisto::finishHistogram().
Here is the call graph for this function:

Generated on Mon Feb 6 14:04:15 2006 for SCT DAQ/DCS Software - C++ by

1.4.6


Data Structures
class	ConfigUtility
	compares ABCDModule structs and their sub-types More...
class	CrateException
	Exception to be thrown by public API methods. More...
class	Crate
	A representation of the crate controller. More...
struct	RodStatus
class	CrateImpl
	A representation of the crate controller. More...
class	DCSAccess
	High level access to DCS. More...
class	DCSAccessDummy
	Provide dummy answers to everything... More...
class	Idiosyncrasy
class	Log
	A logging class, just an ofstream that opens a fixed file. More...
class	PrimBuilder
struct	PrimListWrapper
	Wrap the SctPixelRod::RodPrimList class. More...
class	Scan
class	ScanDefImpl
class	ScanMonitor
	High-level scan interface for use over IPC. More...
class	ScanMonitorImpl
class	PreLoadConfigurations
	little class holds information for thread to load module configurations from config service The thread which starts with this object starts loading up the configurations from the config service, but does not send those to the ROD. More...
class	SctApi
	SctApi class. More...
class	SctApiConfigCache
	This is supposed to mirror the module configuration banks on the rod. More...
struct	SctApiCounters
class	SctApiDDC
class	Debug
	Manage debug options, singleton class. More...
class	SctApiException
struct	RodLabel
struct	CrateLabel
struct	ModuleMask
class	RodScanEx
	This information is used per ROD, stored in a map in ScanEx. More...
class	ScanEx
	Internal scan class with lots more information. More...
class	ScanControl
	Interface used by doScan to control and retrieve data from a histogram. More...
class	ScanControlRODHisto
	Control a histogram on a ROD. More...
class	ScanControlTIMHisto
	TIM takes control of sending the triggers. More...
class	ScanControlAsyncHisto
	SctApi delegates control of sending the triggers. More...
class	RodInfo
class	Trigger
class	TriggerImpl
class	IdiosyncrasyServer
Namespaces
namespace	AutoConf
namespace	ROOT
namespace	Utility
Typedefs
typedef std::list< std::string >	ModuleList
Enumerations
enum	DebugOptions { DEBUG_DIAG, DEBUG_DIAG2, DEBUG_DUMP_PRIM_BINARY, DEBUG_DIAG_RESPONSE, DEBUG_MODULE_CONFIG, DEBUG_SAVE_PRIM, DEBUG_SAVE_HISTOGRAM, DEBUG_SAVE_RAW_CAPTURE, DEBUG_USE_RAW_PRIMITIVE, DEBUG_VERBOSE_PROBE, DEBUG_PRINT_IN_PRIM, DEBUG_PRINT_OUT_PRIM, DEBUG_PRINT_CALIB, DEBUG_PRINT_RAW, DEBUG_LOG_PRINT_PRIM, DEBUG_EXTRA_DUMPS, DEBUG_PRINT_UNKNOWN, DEBUG_BOC_SETUP, DEBUG_DUMP_RAW_EVENT, DEBUG_SCAN_ERROR_TRAP, DEBUG_SCAN_ERROR_TRAP_ALL, DEBUG_SCAN_AUTO_STALL, DEBUG_SCAN_STEP_MODE, DEBUG_SCAN_PAUSE_PULSE, DEBUG_SCAN_ROD_MODE_BITS, DEBUG_SCAN_USE_CCODE, DEBUG_TIM_SCAN_STATUS, DEBUG_API_CONFIG_CACHE_CHECK, DEBUG_API_CONFIG_CACHE_SEND, DEBUG_API_CONFIG_NO_COPY, DEBUG_CALIB_NO_SLINK, DEBUG_CALIB_RTR_STOP_OUTPUT, DEBUG_END_OPTIONS }
	Possible options for the Debug class. More...
enum	BankType { SCTAPI_BANK_PHYSICS, SCTAPI_BANK_SCAN, SCTAPI_BANK_CALIBRATION }
enum	ConfigType { SCTAPI_CONFIG_NONE, SCTAPI_CONFIG_BASIC, SCTAPI_CONFIG_TRIM, SCTAPI_CONFIG_MASK, SCTAPI_CONFIG_CFG, SCTAPI_CONFIG_OTHER, SCTAPI_CONFIG_ALL }
enum	RunType { SCTAPI_RUN_PHYSICS, SCTAPI_RUN_CALIBRATION }
enum	EventFormatType { SCTAPI_EVENT_FORMAT_NORMAL, SCTAPI_EVENT_FORMAT_EXPANDED, SCTAPI_EVENT_FORMAT_RAW }
Functions
void	printOutList (unsigned long *result, unsigned long length, bool in, int level, ostream &stream, bool dumpUnknown, bool dumpRaw)
void	printOutList (unsigned long *primList, unsigned long length, bool in, int level, std::ostream &stream, bool dumpUnknown, bool dumpRaw)
	Should this be somewhere else (eg Sct).
	SctApi (const Idiosyncrasy &id)
	SctApi (const Idiosyncrasy &id, boost::shared_ptr< Configuration > newConf)
	This is the "USUAL" constructor that is used.
	~SctApi ()
bool	isInitialised ()
SctApiConfigCache &	getModuleConfigCache ()
const Idiosyncrasy &	idiosyncrasy ()
const std::string	getHostName () const
bool	hasFinishedScanning ()
void	setup ()
void	setMrsStream (MRSStream *stream)
void	setIsDictionary ()
unsigned long	readRodStatusReg (unsigned int rod, long regNumber)
unsigned long	readRodCommandReg (unsigned int rod, long regNumber)
unsigned long	dspSingleRead (unsigned int rod, const unsigned long dspAddr, long dspNumber)
void	dspSingleWrite (unsigned int rod, unsigned long dspAddr, unsigned long value, long dspNumber)
ABCDModule *	lookupConfig (UINT32 mid)
void	cacheModuleConfig (UINT32 mid, std::string moduleName)
ABCDModule *	retrieveModule (UINT32 mid)
void	createDebugPrimList ()
void	addDebugPrimList (unsigned long length, long index, long id, long version, unsigned long *body)
void	sendDebugPrimList (unsigned int rod)
void	sendDebugPrimListAll ()
void	sendDebugSlavePrimList (unsigned int rod, unsigned int slave, bool await, bool response)
void	debugPrimListFromFile (string fileName)
void	dumpDebugPrimList ()
int	initialiseModule (string modulename, bool toRod)
int	initialiseRod (unsigned int rod)
void	initialiseAll (int run)
void	initialisationThread ()
void	startSlave (unsigned int rod, unsigned int slave)
void	setRunNumber (UINT32 newRun)
void	setScanNumber (UINT32 newScan)
UINT32	getRunNumber ()
UINT32	getScanNumber ()
ModuleList	getModuleList ()
bool	isRODPresent (unsigned int rod)
void	startupModules ()
void	autoConfigure ()
void	sendPrimList (unsigned int rod, shared_ptr< PrimListWrapper > prim)
int	synchSendPrimList (unsigned int rod, shared_ptr< PrimListWrapper > primList, int timeout)
void	sendPrimListAll (shared_ptr< PrimListWrapper > prim)
int	synchSendPrimListAll (shared_ptr< PrimListWrapper > primList, int timeout)
void	dumpPrimList (shared_ptr< PrimListWrapper > prim)
void	shutdownAll ()
void	sendSlavePrimList (unsigned int rod, shared_ptr< PrimListWrapper > prim, unsigned int slaveNumber, bool await, bool response)
Crate *	getCrate () const
int	awaitResponse (unsigned int rod, int timeout)
int	awaitResponseAll (int timeout)
unsigned long *	getResponse (unsigned int rod, unsigned long &length)
bool	getRodMessage (unsigned int rod, char *buffer, unsigned long &length)
UINT32	findModule (string sn)
string	convertToString (UINT32 mid)
UINT32	findModule (INT32 mur, INT32 module)
pair< INT32, INT32 >	convertToMUR (UINT32 mid)
UINT32	findBarrelModule (INT32 barrel, INT32 row, INT32 number)
void	convertToBarrelModule (UINT32 mid, UINT32 &barrel, UINT32 &row, int &number)
UINT32	findEndcapModule (INT32 disk, INT32 ring, INT32 number)
void	convertToEndcapModule (UINT32 mid, INT32 &disk, UINT32 &ring, UINT32 &number)
void	loadConfiguration ()
void	loadConfiguration (string filename)
unsigned	preloadModuleConfigurations ()
int	loadModuleConfigurations ()
void	storeModuleConfigurations (BankType bank)
void	storeBOCConfigurations ()
void	configureBOC (unsigned int rod)
std::vector< double >	getBOCMonitorArray (unsigned int rod)
std::string	status ()
void	defaultScan (int type)
void	tidyHistogramming ()
void	abortScan ()
void	rodMode (unsigned int rod, int mode, int flag, int fifoSetup, int nBits, int delay, int message)
void	setupModuleMask (unsigned int rod, int port, int slvs)
void	setupModuleMask (int port, int slvs, boost::shared_ptr< PrimListWrapper > primList)
void	calib_init ()
void	print_calib (unsigned int rod)
unsigned long	sendTimBurst (unsigned long count, int random, bool external)
unsigned long	sendTriggers (const Trigger *trig, unsigned long count, int scan_point)
void	sendRodTrigger (unsigned int rod, const Trigger *trig, unsigned long count, int scan_point)
void	sendL1A (unsigned int rod, bool capture)
void	bocHistogram (unsigned int rod, unsigned int samples, unsigned int numLoops)
void	printABCDModule (int mid)
void	printABCDRodModule (int mid, BankType bank)
void	modifyTIMParam (unsigned int type, unsigned int val)
void	modifyBOCParam (unsigned int type, unsigned int val)
void	modifyBOCParam (unsigned int rod, unsigned int channel, unsigned int type, unsigned int val)
void	printBOCSetup (unsigned int rod)
vector< BOCChannelConfig >	currentBOCSetup (unsigned int rod)
void	printBOCRegisters (unsigned int rod)
BOCGlobalConfig	currentBOCRegisters (unsigned int rod)
void	saveBOCSetup (unsigned int rod, BankType bank)
void	saveBOCRegisters (unsigned int rod, BankType bank)
void	restoreBOCSetup (unsigned int rod, BankType bank)
void	restoreBOCRegisters (unsigned int rod, BankType bank)
void	lasersOff ()
void	timSetFrequency (double trigFreq, double rstFreq)
double	timGetTriggerFrequency ()
double	timGetResetFrequency ()
void	freeTriggers ()
void	stopTriggers ()
void	timL1A ()
void	timCalL1A (int delay)
void	timSoftReset ()
void	timBCReset ()
void	timLoadSequence (const vector< unsigned > &seq)
unsigned long	timRunSequence (unsigned long trigs, int random, bool external)
void	timVerbose ()
void	timWriteRegister (int reg, UINT16 val)
UINT16	timReadRegister (int reg)
void	decodeConfig (unsigned int rod, bool skipTrim, bool bypass)
void	getrpcrc (UINT32 mid, unsigned int &rpartition, unsigned int &rcrate, unsigned int &rrod, unsigned int &rchannel)
long	getRodSlot (unsigned int rod)
int	getRodRevision (unsigned int rod)
int	getRodRevision (const RodLabel &label)
void	testLinkOutSelect (unsigned int rod, unsigned int link)
unsigned int	testLinkOutRetrieve (unsigned int rod)
void	setDebugOption (std::string opt)
void	unsetDebugOption (std::string opt)
std::list< std::string >	listEnabledDebugOptions () const
std::vector< std::string >	listDebugOptions () const
void	unsetBusy ()
bool	checkDebugOption (std::string opt) const
bool	checkDebugOption (int intOpt) const
void	debugStepHistogram ()
void	debugContinueHistogram ()
void	debugAbortHistogram ()
void	standardRegisterDump (RodLabel rl)
void	standardRegisterDump (unsigned int rod)
void	standardRegisterDumpAll ()
void	setupScanMasks (ScanEx &extra, int distSlave, bool dual)
bool	checkModuleListsForScan ()
bool	preScanHardwareCheck (const Scan &scan, ScanEx &extra)
void	preScanModuleSetup (const Scan &scan)
void	resumePolling ()
void	stopPolling ()
SctApiDDC *	getSctApiDDC () const
void	updateISStats ()
void	insertISStats ()
int	dspBlockDump (unsigned int rod, long dspStart, long numWords, long dspNumber, bool usePrim)
int	dspBlockDumpFile (unsigned int rod, long dspStart, long numWords, long dspNumber, string filename, bool usePrim)
unsigned long *	dspBlockRead (unsigned int rod, long dspStart, long numWords, long dspNumber, unsigned long &length, bool usePrim)
int	dspBlockWrite (unsigned int rod, unsigned long *buffer, unsigned long dspAddress, long numWords, long dspNumber, bool usePrim)
unsigned long	dspSingleBlockRead (unsigned int rod, long dspStart, long dspNumber)
void	dspSingleBlockWrite (unsigned int rod, unsigned long dspAddress, unsigned long val, long dspNumber)
void	setSlaveBlock (unsigned int rod, int s, long sAdd, int words, long value, bool usePrim)
unsigned long *	primReadSlaveDsp (unsigned int rod, int s, int add, int words)
void	primWriteSlaveDsp (unsigned int rod, int s, int add, int numWords, unsigned long *data)
shared_array< unsigned long >	loadFile (string fileName, unsigned long &length)
void	writeSlaveFile (unsigned int rod, unsigned int slave, const string fileName, unsigned long address, bool usePrim)
UINT32	eventWord (const UINT32 *const buffer, const int frame, const int index)
bool	hasPostSeptember2004Firmware (const UINT32 *const frameBuffer, const int frame)
	Only apply the following method to NON ERROR events.
int	findEOF (UINT32 *buffer, int startFrame)
void	scanEvents (unsigned int rod, int sl, bool extFlag, bool errorType)
void	decodeEvent (unsigned int rod, int slave, int index, bool extFlag, bool errorType)
void	reportEventErrors ()
UINT32 *	readEventBuffer (unsigned int rod, int slave, bool extFlag, bool errorType)
int	getLastEventFrame (unsigned int rod, int slave)
bool	changeRunMode (enum RunType mode)
bool	changeEventFormat (enum EventFormatType format)
int	useCCode (const SctApi &api, const Scan &scan)
	AJB.
void	validateScan (boost::shared_ptr< const Scan > scan)
boost::shared_ptr< ScanMonitor >	startAsyncScan (boost::shared_ptr< const Scan > scan)
boost::shared_ptr< ScanControl >	startScan (boost::shared_ptr< const Scan > constScan, bool pollTriggers)
void	doScan (boost::shared_ptr< const Scan > scan)
void	awaitScan ()
void	scanLoop ()
void	scanPollingThread ()
void	setupEventTrapping (const Scan &scan, const ScanEx &ex, const RodLabel rod, boost::shared_ptr< PrimListWrapper > primList)
void	setupEventDump (const Scan &scan, const ScanEx &ex, const RodLabel rod, boost::shared_ptr< PrimListWrapper > primList)
void	startEventTrapping (const Scan &scan, const ScanEx &ex, const RodLabel rod, shared_ptr< PrimListWrapper > primList)
void	setupHistogramming (const Scan &scan, const ScanEx &ex, const RodLabel rod, bool tim, boost::shared_ptr< PrimListWrapper > primList)
void	startHistogramTask (const Scan &scan, const ScanEx &ex, const RodLabel rod, unsigned int startBin, unsigned int nBins, unsigned int nTrigs, boost::shared_ptr< PrimListWrapper > primList)
void	stopHistogramming (const ScanEx &ex)
void	readHistogramToFile (const Sct::UCID &ucid, const Scan &scan, const ScanEx &ex, UINT32 mid, std::string sn, scan_result_ptrs scanData, time_t saveTime, int frame=0)
	Read the histogram data in to a file.
void	saveHistogramToFile (scan_result_ptrs histo, std::string filename)
	Write a histogram to a file.
void	readHistogramToIS (const Sct::UCID &ucid, const Scan &scan, const ScanEx &ex, UINT32 mid, scan_result_ptrs scanData)
	Read the histogram data in to IS.
int	pollHistogramming (boost::shared_ptr< ScanControl > controller, int timeout)
void	doHistogramSetup (const Scan &scan, const ScanEx &extra)
void	eventTrapSetup (int slaveMask, int trapMatch, int trapMod, int trapRemain, bool tim, bool error, boost::shared_ptr< PrimListWrapper > primList)
void	startEventTrap (int slaveNumber, boost::shared_ptr< PrimListWrapper > primList)
void	stopEventTrap (int slaveNumber, boost::shared_ptr< PrimListWrapper > primList)
void	writeRODRegister (unsigned int rod, int reg, int off, int width, int value)
unsigned int	readRODRegister (unsigned int rod, int r)
int	pollRegister (unsigned int rod, int r, int off, int width, int val, int timeout)
unsigned long *	readFifo (unsigned int rod, int id, int bank, int elems)
void	echo (unsigned int rod, unsigned int length, const unsigned long *data)
void	echoAll (unsigned int length, const unsigned long *data)
void	echoSlave (unsigned int rod, unsigned int slave, unsigned int length, const unsigned long *data)
void	flashLED (unsigned int rod, long slaveNumber, long period, long flashes)
pair< UINT32, UINT32 >	sendData (unsigned int rod, int type, int dsp)
void	getABCDModules (BankType bank_type)
void	getABCDModule (UINT32 mid, BankType bank_type)
void	printBanks (list< BankType > banks, ostream &os)
void	copyABCDModules (BankType source, list< BankType > to)
void	copyABCDModule (UINT32 mid, BankType source, list< BankType > to)
void	setABCDModule (UINT32 mid, list< BankType > bank_list)
void	really_getABCDModule (UINT32 mid, BankType bank_type)
boost::shared_ptr< ABCDModule >	getABCDModuleRaw (unsigned int rod, UINT32 slot, BankType bank_type)
void	setABCDModules (list< BankType > banks)
void	really_setABCDModule (UINT32 mid, list< BankType > bank_list, UINT32 api_cfg_type_bitfield)
void	setErrorMasks ()
void	sendAllABCDModules (BankType bank_type, ConfigType config_type, const bool enableDataMode)
void	sendABCDModule (UINT32 mid, BankType bank_type, ConfigType config_type, const bool enableDataMode)
void	modifyABCDVarROD (UINT32 mid, UINT32 chip, UINT32 type, FLOAT32 value, list< BankType > banks)
void	modifyABCDVarROD (UINT32 mid, UINT32 type, FLOAT32 value, list< BankType > banks)
void	modifyABCDVarROD (UINT32 type, FLOAT32 value, list< BankType > banks)
void	printBanks (list< BankType > banks, std::ostream &os)
void	setAutoUpdateBanks (std::list< BankType > banks)
void	modifyABCDMask (UINT32 mid, UINT32 *mask)
void	modifyABCDRC (UINT32 mid, UINT32 chip, UINT16 index, FLOAT32 p0, FLOAT32 p1, FLOAT32 p2)
void	modifyABCDTrims (UINT32 mid, UINT8 *trims)
void	modifyABCDVar (UINT32 typ, FLOAT32 val)
void	modifyABCDVarAllModulesOneChip (UINT32 chip, UINT32 typ, FLOAT32 val)
void	modifyABCDVar (UINT32 mid, UINT32 typ, FLOAT32 val)
void	modifyABCDVar (UINT32 mid, UINT32 chip, UINT32 typ, FLOAT32 val)
const std::list< RodLabel >	listRods () const
void	addRodToList (RodLabel newRod)
RodInfo &	getRodInfo (const RodLabel &l)
int	setupRawData (unsigned int rod, int delay, int units, bool setMask, const Trigger *trig)
void	dumpRawEvent (unsigned int rod, int units, unsigned long bufferA, unsigned long bufferB)
static int	lookupFifoHit (UINT16 bufA, UINT16 bufB, int channel, int pos)
	Is there a hit at a position.
void	rawData (unsigned int rod, int delay, int units, bool setMask, const Trigger *trig)
void	doRawScan (boost::shared_ptr< Scan > scan, int delay, int width, bool configure, bool clkBy2)
void	doRawScanThread (boost::shared_ptr< Scan > scan, int delay, int width, bool configure, bool clkBy2)
void	doRawScanThreadInnards (boost::shared_ptr< Scan > scan, int delay, int width, bool configure, bool clkBy2)
void	readRawData (unsigned int rod, int delay, bool setMask)
vector< char >	probeWithTrigger (unsigned int rod, const Trigger *trigger, signed int harness)
vector< char >	probe (unsigned int rod, signed int harness)
vector< vector< char > >	probeScan (unsigned int rod, boost::shared_ptr< Scan > scan, signed int harness)
bool	checkAllModulesProbe (string value)
Variables
static const short	tokens [20]
const char *	chipRoles []
SctApiCounters	publishedStats
SctApiCounters	currentStats
static const int	numSlaves
static const unsigned long	rodMapSize
static const unsigned long	timMapSize
SctApiCounters	currentStats
const int	eventSize
const int	eventWords
const int	frameCount
