SctConfiguration::Configuration Class Reference

Interface to XML configuration file. More...

#include <configuration.h>

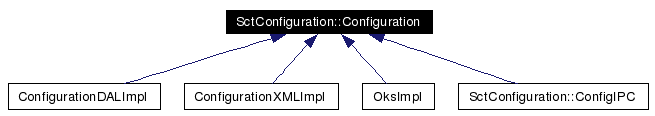

Inheritance diagram for SctConfiguration::Configuration:

[legend]

Public Member Functions
virtual	~Configuration ()
	Free resources.
virtual std::list< unsigned int >	listPartitions ()=0
	List partition ids Lookup the partitions defined in the configuration and return a list of integer ID's.
virtual std::list< unsigned int >	listCratesInPartition (unsigned int partition)=0
	List crate ids with reference to the given partition Lookup the crates defined in the specified partition and return a list of integer ID's.
virtual bool	isDummyCrate (unsigned int partition, unsigned int crate)=0
	Check if this should be a dummy crate.
virtual std::list< unsigned int >	listRodsInCrate (unsigned int partition, unsigned int crate)=0
	List the rods present in a crate Lookup the RODs defined in the specified crate and return a list of integer ID's.
virtual std::list< unsigned int >	listMURSInRod (unsigned int partition, unsigned int crate, unsigned int rod)=0
	List the MURs associated with a ROD Return integer id's of the MURs in the specified rod.
virtual std::list< std::string >	listModulesInMUR (unsigned int partition, unsigned int MUR)=0
	List the modules in the given MUR Return a list of serial numbers associated with the specified MUR.
virtual std::list< std::string >	listRModulesInMUR (unsigned int partition, unsigned int MUR)=0
	List the modules in the given MUR Return a list of serial numbers associated with the redundancy links of the specified MUR.
virtual std::list< std::string >	listAllModules ()=0
	Return a list of serial numbers of all modules that have configuration.
virtual std::list< std::string >	listUnusedModules ()=0
	Return a list of serial numbers of modules that have configuration but are not attached to an MUR.
virtual ABCDModule	getModuleConfig (const std::string module)=0
	Return the configuration for the module.
virtual short	getModuleGroup (const std::string module)=0
	Return the group for this module.
virtual void	setModuleGroup (const std::string module, short group)=0
	Set the group for this module.
virtual unsigned int	getModuleErrorMask (unsigned int partition, unsigned int crate, unsigned int rod, unsigned int channel, unsigned int link)=0
	Return the error mask for this module, link = 0,1.
virtual void	setModuleErrorMask (unsigned int partition, unsigned int crate, unsigned int rod, unsigned int channel, unsigned int link, unsigned int mask)=0
	Set the error mask for this module, link = 0,1.
virtual void	setDefaultModuleErrorMask (unsigned int mask)=0
	Set the default error mask for all modules.
virtual RodConfig	getRodConfig (unsigned int partition, unsigned int crate, unsigned int rod)=0
	Return the Rod configuration Find the configuration associated with the specified ROD.
virtual SlaveConfig	getDefaultSlaveConfig (char type)=0
	Return the default slave configuration Find the configuration associated with the specified slave type.
virtual BOCChannelConfig	getBOCConfig (unsigned int partition, unsigned int crate, unsigned int rod, unsigned int channel)=0
	Get the BOC configuration of one of 48 channels.
virtual BOCGlobalConfig	getBOCGlobalConfig (unsigned int partition, unsigned int crate, unsigned int rod)=0
	Get the BOCs global configuration.
virtual unsigned char *	getFibreMappings (unsigned int partition, unsigned int crate, unsigned int rod)=0
	Get the BOC fibre mappings.
virtual TimConfig	getTimConfig (unsigned int partition, unsigned int crate)=0
	Return the TIM configuration Find the configuration associated with the specified TIM.
virtual void	setFibreMapping (unsigned int partition, unsigned int crate, unsigned int rod, unsigned int channel, unsigned int tx, unsigned int rx0, unsigned int rx1)=0
	Set fibre mappings for one channel.
virtual std::string	printModuleConfig (const ABCDModule &conf)=0
	Print module configuration to cout.
virtual MURType	getMURType (unsigned int MUR)=0
virtual unsigned int	getFreeMurId ()=0
	Return an unused MUR id.
virtual void	translateToROD (unsigned int MUR, unsigned int module, unsigned int &partition, unsigned int &crate, unsigned int &rod, unsigned int &channel)=0
	Translate from MUR / module(1-6) number to p/k/r/c.
virtual void	translateToRROD (unsigned int MUR, unsigned int module, unsigned int &partition, unsigned int &crate, unsigned int &rod, unsigned int &channel)=0
	Translate from MUR / redundant module(1-6) number to p/k/r/c.
virtual void	translateToSN (unsigned int MUR, unsigned int module, std::string &sn)=0
	Translate from MUR / module(1-6) number to serial number.
virtual void	translateToRMUR (unsigned int MUR, unsigned int module, unsigned int &RMUR, unsigned int &rmodule)=0
	Translate from MUR / module(1-6) number to MUR/module of redundant connection.
virtual void	translateToBarrel (unsigned int MUR, unsigned int module, unsigned int &barrel, unsigned int &row, int &number)=0
	Translate from MUR / module(1-6) number to geographical barrel system.
virtual void	translateToEndcap (unsigned int MUR, unsigned int module, int &disk, unsigned int &ring, unsigned int &number)=0
	Translate from MUR / module(1-6) number to geographical endcap system.
virtual void	translateToPowerSupply (unsigned int MUR, unsigned int module, unsigned int &partition, unsigned int &crate, unsigned int &channel)=0
	Translate from MUR / module(1-6) number to power supply channel address.
virtual void	translateFromROD (unsigned int partition, unsigned int crate, unsigned int rod, unsigned int channel, unsigned int &MUR, unsigned int &module)=0
	Translate to MUR / module(1-6) number from p/k/r/c.
virtual void	translateFromRROD (unsigned int partition, unsigned int crate, unsigned int rod, unsigned int channel, unsigned int &MUR, unsigned int &module)=0
	Translate to MUR / module(1-6) number from address of redundant module.
virtual void	translateFromSN (const std::string sn, unsigned int &MUR, unsigned int &module)=0
	Translate to MUR / module(1-6) number from serial number.
virtual void	translateFromRMUR (unsigned int RMUR, unsigned int rmodule, unsigned int &MUR, unsigned int &module)=0
	Translate from redundant MUR / module(1-6) number to MUR/module via redundant connection.
virtual void	translateFromBarrel (unsigned int barrel, unsigned int row, int number, unsigned int &MUR, unsigned int &module)=0
	Translate to MUR / module(1-6) number from geographical barrel system.
virtual void	translateFromEndcap (int disk, unsigned int ring, unsigned int number, unsigned int &MUR, unsigned int &module)=0
	Translate to MUR / module(1-6) number from geographical endcap system.
virtual void	translateFromPowerSupply (unsigned int partition, unsigned int crate, unsigned int channel, unsigned int &MUR, unsigned int &module)=0
	Translate from power supply channel address to MUR / module(1-6) number.
virtual void	configureModuleFromStructure (const std::string module, const ABCDModule conf)=0
	Update or add the configuration of a module stored in memory Replace the configuration for the given module with the data stored in the given configuration.
virtual void	configureModuleFromFile (const std::string filename)=0
	Update or add the configuration of a module stored in memory Replace the configuration for the given module with the data stored in the given file (the serial number is read from the file).
virtual void	configureROD (unsigned int partition, unsigned int crate, unsigned int rod, RodConfig conf)=0
	Configure a ROD.
virtual void	configureTIM (unsigned int partition, unsigned int crate, TimConfig conf)=0
	Configure a TIM.
virtual void	configureBOC (unsigned int partition, unsigned int crate, unsigned int rod, const BOCGlobalConfig &conf)=0
	Set a BOC configuration.
virtual void	clearAll ()=0
	Remove all configuration.
virtual void	namePartition (unsigned int partition, const std::string name)=0
	Name a partition (for information, any use?).
virtual void	configureBOCChannel (unsigned int MUR, unsigned int position, const BOCChannelConfig &conf)=0
	Set a BOC channel configuration.
virtual void	mapModuleMUR (unsigned int MUR, unsigned int order, unsigned int RMUR, unsigned int rorder, std::string number)=0
	Map a module (by serial number) onto a position in an MUR.
virtual void	unmapModuleMUR (unsigned int MUR, unsigned int order)=0
	Unmap a module from a position in an MUR.
virtual void	mapRODMUR (unsigned int partition, unsigned int crate, unsigned int rod, unsigned int order, unsigned int MUR)=0
	Map an MUR to a ROD.
virtual void	unmapRODMUR (unsigned int MUR)=0
	Unmap an MUR from a ROD.
virtual void	mapBarrelMUR (unsigned int MUR, unsigned int barrel, unsigned int row, int position)=0
	Map Barrel MUR.
virtual void	unmapBarrelMUR (unsigned int MUR)=0
	Unmap MUR from Barrel.
virtual void	getMapMURROD (unsigned int MUR, unsigned int &partition, unsigned int &crate, unsigned int &rod, unsigned int &order)=0
	Get mapping of MUR to ROD.
virtual void	getMapRODMUR (unsigned int partition, unsigned int crate, unsigned int rod, unsigned int order, unsigned int &number)=0
	Get mapping of ROD to MUR.
virtual void	getMapMURPhysical (unsigned int MUR, MURType &type, int &plane, int &section, int &position)=0
virtual void	swapMURNames (unsigned int MUR1, unsigned int MUR2)=0
	Swap two MUR names around.
virtual void	mapEndcapMUR (unsigned int MUR, int disk, unsigned int quadrant, unsigned int position)=0
	Map Endcap MUR.
virtual void	unmapEndcapMUR (unsigned int MUR)=0
	Unmap Endcap MUR.
virtual void	mapPowerChannel (unsigned int MUR, unsigned int number, unsigned int partition, unsigned int crate, unsigned int channel)=0
	Map Power channel.
virtual void	unmapPowerChannel (unsigned int MUR, unsigned int number)=0
	Unmap Power channel.
virtual void	modifyDefaultPowerParam (std::string state, std::string name, std::string type, float value)=0
	Set default value of any MoPS parameter.
virtual void	modifyHVCardParam (unsigned int crate, unsigned int card, std::string name, std::string type, float value)=0
	Set MoPS HV card parameter.
virtual void	modifyLVCardParam (unsigned int crate, unsigned int card, std::string name, std::string type, float value)=0
	Set MoPS LV card parameter.
virtual void	modifyPowerParam (unsigned int MUR, unsigned int number, std::string state, std::string name, std::string type, float value)=0
	Set MoPS channel parameter referenced by MUR/number.
virtual void	modifyPowerParamCC (unsigned int crate, unsigned int channel, std::string state, std::string name, std::string type, float value)=0
	Set MoPS channel parameter referenced by MoPS crate/channel.
virtual float	getDefaultPowerParam (std::string state, std::string name, std::string type)=0
	Get default power of any MoPS parameter.
virtual float	getHVCardParam (unsigned int crate, unsigned int card, std::string name, std::string type)=0
	Get MoPS HV card parameter.
virtual float	getLVCardParam (unsigned int crate, unsigned int card, std::string name, std::string type)=0
	Get MoPS LV card parameter.
virtual float	getPowerParam (unsigned int MUR, unsigned int number, std::string state, std::string name, std::string type)=0
	Get MoPS channel parameter referenced by MUR/number.
virtual float	getPowerParamCC (unsigned int crate, unsigned int channel, std::string state, std::string name, std::string type)=0
	Get MoPS channel parameter referenced by MoPS crate/channel.
virtual std::list< std::string >	listDefaultPowerParams ()=0
	List the defined parameters.
virtual std::list< std::string >	listDCSChannelParams ()=0
	List the channel parameters for DCS.
virtual std::list< std::string >	listDCSCardParams ()=0
	List the card parameters for DCS.
virtual std::list< std::string >	listDCSCrateParams ()=0
	List the crate parameters for DCS.
virtual void	useISForChanges (bool valid=true)=0
	Use IS in this implementation.
virtual void	useMRSForMessages (bool valid=true)=0
	Use MRS in this implementation.
virtual void	loadConfiguration (const std::string &filename)=0
	Load configuration from named file.
virtual std::string	getConfigurationFileName ()=0
	For informational purposes only.
virtual void	saveConfiguration (const std::string filename="")=0
	Save the current configuration.
virtual void	saveModuleConfiguration (const std::string modsn, const std::string filename)=0
	Save the current configuration for a module.
virtual std::string	getModuleConfigurationString (const std::string modsn, const ABCDModule config)=0
	Construct the XML for a module configuration and return as a string.
virtual void	writePowerSupplyConfiguration (std::string filename)=0
	Dump power supply configuration to a file.

---

Detailed Description

Interface to XML configuration file.

This will be replaced by an interface to the DAQ confDB system.

The primary function of this class is the readout of configuration data from the database.

Translation functions:

Barrel barrel, row, number 3 to 6 0 to 55 -1 to -6 and 1 to 6

Internals: position on row given as -1 for -ve numbers and 1 for +ve numbers

Endcap disc quadrant number 0 to 17 0 to 3 0 to 32

Internals: position of MUR in quadrant number is left to right top to bottom 0000001222222 4444455555 1111133333

Definition at line 158 of file configuration.h.

---

Constructor & Destructor Documentation

virtual SctConfiguration::Configuration::~Configuration (   )  [inline, virtual]

Free resources. Definition at line 163 of file configuration.h.

---

Member Function Documentation

virtual void SctConfiguration::Configuration::clearAll (   )  [pure virtual]

Remove all configuration. Very dangerous!! Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::configureBOC (  unsigned int  partition, unsigned int  crate, unsigned int  rod, const BOCGlobalConfig &  conf )  [pure virtual]

Set a BOC configuration. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::storeBOCConfigurations().

virtual void SctConfiguration::Configuration::configureBOCChannel (  unsigned int  MUR, unsigned int  position, const BOCChannelConfig &  conf )  [pure virtual]

Set a BOC channel configuration. Parameters: MUR  MUR number position  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::storeBOCConfigurations().

virtual void SctConfiguration::Configuration::configureModuleFromFile (  const std::string  filename  )  [pure virtual]

Update or add the configuration of a module stored in memory Replace the configuration for the given module with the data stored in the given file (the serial number is read from the file). Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::configureModuleFromStructure (  const std::string  module, const ABCDModule  conf )  [pure virtual]

Update or add the configuration of a module stored in memory Replace the configuration for the given module with the data stored in the given configuration. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::storeModuleConfigurations().

virtual void SctConfiguration::Configuration::configureROD (  unsigned int  partition, unsigned int  crate, unsigned int  rod, RodConfig  conf )  [pure virtual]

Configure a ROD. Replace the in memory configuration for the given ROD with the configuration provided. If no configuration then construct it Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::configureTIM (  unsigned int  partition, unsigned int  crate, TimConfig  conf )  [pure virtual]

Configure a TIM. Replace the in memory configuration for the given TIM with the configuration provided. If no configuration then construct it Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC.

virtual BOCChannelConfig SctConfiguration::Configuration::getBOCConfig (  unsigned int  partition, unsigned int  crate, unsigned int  rod, unsigned int  channel )  [pure virtual]

Get the BOC configuration of one of 48 channels. Parameters: channel  Module number (0-47) Input channels are paired as one. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC.

virtual BOCGlobalConfig SctConfiguration::Configuration::getBOCGlobalConfig (  unsigned int  partition, unsigned int  crate, unsigned int  rod )  [pure virtual]

Get the BOCs global configuration. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual std::string SctConfiguration::Configuration::getConfigurationFileName (   )  [pure virtual]

For informational purposes only. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual float SctConfiguration::Configuration::getDefaultPowerParam (  std::string  state, std::string  name, std::string  type )  [pure virtual]

Get default power of any MoPS parameter. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual SlaveConfig SctConfiguration::Configuration::getDefaultSlaveConfig (  char  type  )  [pure virtual]

Return the default slave configuration Find the configuration associated with the specified slave type. Return a SlaveConfig structure. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::initialiseRod().

virtual unsigned char* SctConfiguration::Configuration::getFibreMappings (  unsigned int  partition, unsigned int  crate, unsigned int  rod )  [pure virtual]

Get the BOC fibre mappings. An array of 48*3 chars (out, in0, in1) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::checkAllModulesProbe().

virtual unsigned int SctConfiguration::Configuration::getFreeMurId (   )  [pure virtual]

Return an unused MUR id. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual float SctConfiguration::Configuration::getHVCardParam (  unsigned int  crate, unsigned int  card, std::string  name, std::string  type )  [pure virtual]

Get MoPS HV card parameter. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual float SctConfiguration::Configuration::getLVCardParam (  unsigned int  crate, unsigned int  card, std::string  name, std::string  type )  [pure virtual]

Get MoPS LV card parameter. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::getMapMURROD (  unsigned int  MUR, unsigned int &  partition, unsigned int &  crate, unsigned int &  rod, unsigned int &  order )  [pure virtual]

Get mapping of MUR to ROD. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::getMapRODMUR (  unsigned int  partition, unsigned int  crate, unsigned int  rod, unsigned int  order, unsigned int &  number )  [pure virtual]

Get mapping of ROD to MUR. Parameters: MUR  MUR number number  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual ABCDModule SctConfiguration::Configuration::getModuleConfig (  const std::string  module  )  [pure virtual]

Return the configuration for the module. Deprecated: Should take MUR argument Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::cacheModuleConfig().

virtual std::string SctConfiguration::Configuration::getModuleConfigurationString (  const std::string  modsn, const ABCDModule  config )  [pure virtual]

Construct the XML for a module configuration and return as a string. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC.

virtual unsigned int SctConfiguration::Configuration::getModuleErrorMask (  unsigned int  partition, unsigned int  crate, unsigned int  rod, unsigned int  channel, unsigned int  link )  [pure virtual]

Return the error mask for this module, link = 0,1. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual short SctConfiguration::Configuration::getModuleGroup (  const std::string  module  )  [pure virtual]

Return the group for this module. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual float SctConfiguration::Configuration::getPowerParam (  unsigned int  MUR, unsigned int  number, std::string  state, std::string  name, std::string  type )  [pure virtual]

Get MoPS channel parameter referenced by MUR/number. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual float SctConfiguration::Configuration::getPowerParamCC (  unsigned int  crate, unsigned int  channel, std::string  state, std::string  name, std::string  type )  [pure virtual]

Get MoPS channel parameter referenced by MoPS crate/channel. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual RodConfig SctConfiguration::Configuration::getRodConfig (  unsigned int  partition, unsigned int  crate, unsigned int  rod )  [pure virtual]

Return the Rod configuration Find the configuration associated with the specified ROD. Return a RodConfig structure. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::initialiseRod().

virtual TimConfig SctConfiguration::Configuration::getTimConfig (  unsigned int  partition, unsigned int  crate )  [pure virtual]

Return the TIM configuration Find the configuration associated with the specified TIM. Return a TimConfig structure. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::changeRunMode().

virtual bool SctConfiguration::Configuration::isDummyCrate (  unsigned int  partition, unsigned int  crate )  [pure virtual]

Check if this should be a dummy crate. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::awaitResponse().

virtual std::list<std::string> SctConfiguration::Configuration::listAllModules (   )  [pure virtual]

Return a list of serial numbers of all modules that have configuration. This includes those that are not attached to a ROD or MUR Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC.

virtual std::list<unsigned int> SctConfiguration::Configuration::listCratesInPartition (  unsigned int  partition  )  [pure virtual]

List crate ids with reference to the given partition Lookup the crates defined in the specified partition and return a list of integer ID's. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::initialisationThread().

virtual std::list<std::string> SctConfiguration::Configuration::listDCSCardParams (   )  [pure virtual]

List the card parameters for DCS. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual std::list<std::string> SctConfiguration::Configuration::listDCSChannelParams (   )  [pure virtual]

List the channel parameters for DCS. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual std::list<std::string> SctConfiguration::Configuration::listDCSCrateParams (   )  [pure virtual]

List the crate parameters for DCS. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual std::list<std::string> SctConfiguration::Configuration::listDefaultPowerParams (   )  [pure virtual]

List the defined parameters. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual std::list<std::string> SctConfiguration::Configuration::listModulesInMUR (  unsigned int  partition, unsigned int  MUR )  [pure virtual]

List the modules in the given MUR Return a list of serial numbers associated with the specified MUR. FIXME: Should be in numbered order Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::initialisationThread(), and SctApi::loadModuleConfigurations().

virtual std::list<unsigned int> SctConfiguration::Configuration::listMURSInRod (  unsigned int  partition, unsigned int  crate, unsigned int  rod )  [pure virtual]

List the MURs associated with a ROD Return integer id's of the MURs in the specified rod. FIXME: Should be in numbered order Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::initialisationThread(), and SctApi::loadModuleConfigurations().

virtual std::list<unsigned int> SctConfiguration::Configuration::listPartitions (   )  [pure virtual]

List partition ids Lookup the partitions defined in the configuration and return a list of integer ID's. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::initialisationThread().

virtual std::list<std::string> SctConfiguration::Configuration::listRModulesInMUR (  unsigned int  partition, unsigned int  MUR )  [pure virtual]

List the modules in the given MUR Return a list of serial numbers associated with the redundancy links of the specified MUR. FIXME: Should be in numbered order (array?) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC.

virtual std::list<unsigned int> SctConfiguration::Configuration::listRodsInCrate (  unsigned int  partition, unsigned int  crate )  [pure virtual]

List the rods present in a crate Lookup the RODs defined in the specified crate and return a list of integer ID's. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::initialisationThread(), and SctApi::preloadModuleConfigurations().

virtual std::list<std::string> SctConfiguration::Configuration::listUnusedModules (   )  [pure virtual]

Return a list of serial numbers of modules that have configuration but are not attached to an MUR. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::loadConfiguration (  const std::string &  filename  )  [pure virtual]

Load configuration from named file. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::loadConfiguration(), and SctApi::SctApi().

virtual void SctConfiguration::Configuration::mapBarrelMUR (  unsigned int  MUR, unsigned int  barrel, unsigned int  row, int  position )  [pure virtual]

Map Barrel MUR. Parameters: position  -1 or 1 Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::mapEndcapMUR (  unsigned int  MUR, int  disk, unsigned int  quadrant, unsigned int  position )  [pure virtual]

Map Endcap MUR. Parameters: disk  -1 to -9 and 1 to 9 Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::mapModuleMUR (  unsigned int  MUR, unsigned int  order, unsigned int  RMUR, unsigned int  rorder, std::string  number )  [pure virtual]

Map a module (by serial number) onto a position in an MUR. Parameters: MUR  MUR number order  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::mapPowerChannel (  unsigned int  MUR, unsigned int  number, unsigned int  partition, unsigned int  crate, unsigned int  channel )  [pure virtual]

Map Power channel. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::mapRODMUR (  unsigned int  partition, unsigned int  crate, unsigned int  rod, unsigned int  order, unsigned int  MUR )  [pure virtual]

Map an MUR to a ROD. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::modifyDefaultPowerParam (  std::string  state, std::string  name, std::string  type, float  value )  [pure virtual]

Set default value of any MoPS parameter. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::modifyHVCardParam (  unsigned int  crate, unsigned int  card, std::string  name, std::string  type, float  value )  [pure virtual]

Set MoPS HV card parameter. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::modifyLVCardParam (  unsigned int  crate, unsigned int  card, std::string  name, std::string  type, float  value )  [pure virtual]

Set MoPS LV card parameter. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::modifyPowerParam (  unsigned int  MUR, unsigned int  number, std::string  state, std::string  name, std::string  type, float  value )  [pure virtual]

Set MoPS channel parameter referenced by MUR/number. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::modifyPowerParamCC (  unsigned int  crate, unsigned int  channel, std::string  state, std::string  name, std::string  type, float  value )  [pure virtual]

Set MoPS channel parameter referenced by MoPS crate/channel. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::namePartition (  unsigned int  partition, const std::string  name )  [pure virtual]

Name a partition (for information, any use?). Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual std::string SctConfiguration::Configuration::printModuleConfig (  const ABCDModule &  conf  )  [pure virtual]

Print module configuration to cout. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::printABCDModule(), and SctApi::printABCDRodModule().

virtual void SctConfiguration::Configuration::saveConfiguration (  const std::string  filename = ""  )  [pure virtual]

Save the current configuration. Write configuration to disc. If no filename is provided a unique filename based on the date and time is created. Filename eg Conf_dump_20021210142311.xml.gz (in current directory) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::saveModuleConfiguration (  const std::string  modsn, const std::string  filename )  [pure virtual]

Save the current configuration for a module. Write the configuration for the module modsn to disc. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::setDefaultModuleErrorMask (  unsigned int  mask  )  [pure virtual]

Set the default error mask for all modules. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::setFibreMapping (  unsigned int  partition, unsigned int  crate, unsigned int  rod, unsigned int  channel, unsigned int  tx, unsigned int  rx0, unsigned int  rx1 )  [pure virtual]

Set fibre mappings for one channel. Any value over 48/96 leaves current value unchanged Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::setModuleErrorMask (  unsigned int  partition, unsigned int  crate, unsigned int  rod, unsigned int  channel, unsigned int  link, unsigned int  mask )  [pure virtual]

Set the error mask for this module, link = 0,1. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::setModuleGroup (  const std::string  module, short  group )  [pure virtual]

Set the group for this module. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::swapMURNames (  unsigned int  MUR1, unsigned int  MUR2 )  [pure virtual]

Swap two MUR names around. This means in regards to everything about one MUR you can use the other name If either doesn't exist then just one MUR is renamed Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::translateFromBarrel (  unsigned int  barrel, unsigned int  row, int  number, unsigned int &  MUR, unsigned int &  module )  [pure virtual]

Translate to MUR / module(1-6) number from geographical barrel system. Parameters: MUR  MUR number module  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::findBarrelModule().

virtual void SctConfiguration::Configuration::translateFromEndcap (  int  disk, unsigned int  ring, unsigned int  number, unsigned int &  MUR, unsigned int &  module )  [pure virtual]

Translate to MUR / module(1-6) number from geographical endcap system. Parameters: MUR  MUR number module  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::findEndcapModule().

virtual void SctConfiguration::Configuration::translateFromPowerSupply (  unsigned int  partition, unsigned int  crate, unsigned int  channel, unsigned int &  MUR, unsigned int &  module )  [pure virtual]

Translate from power supply channel address to MUR / module(1-6) number. Parameters: MUR  MUR number module  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::translateFromRMUR (  unsigned int  RMUR, unsigned int  rmodule, unsigned int &  MUR, unsigned int &  module )  [pure virtual]

Translate from redundant MUR / module(1-6) number to MUR/module via redundant connection. Parameters: MUR  MUR number module  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::translateFromROD (  unsigned int  partition, unsigned int  crate, unsigned int  rod, unsigned int  channel, unsigned int &  MUR, unsigned int &  module )  [pure virtual]

Translate to MUR / module(1-6) number from p/k/r/c. Parameters: MUR  MUR number module  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::cacheModuleConfig(), SctApi::convertToBarrelModule(), SctApi::convertToEndcapModule(), SctApi::convertToMUR(), SctApi::convertToString(), SctApi::getrpcrc(), SctApiDDC::requestHardReset(), SctApiDDC::requestIVCurve(), SctApiDDC::setSelect(), and SctApi::storeBOCConfigurations().

virtual void SctConfiguration::Configuration::translateFromRROD (  unsigned int  partition, unsigned int  crate, unsigned int  rod, unsigned int  channel, unsigned int &  MUR, unsigned int &  module )  [pure virtual]

Translate to MUR / module(1-6) number from address of redundant module. This returns the MUR/module of the module connected using its redundant link to the p/k/r/c address Parameters: MUR  MUR number module  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::translateFromSN (  const std::string  sn, unsigned int &  MUR, unsigned int &  module )  [pure virtual]

Translate to MUR / module(1-6) number from serial number. Parameters: MUR  MUR number module  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::findModule(), and SctApi::initialiseModule().

virtual void SctConfiguration::Configuration::translateToBarrel (  unsigned int  MUR, unsigned int  module, unsigned int &  barrel, unsigned int &  row, int &  number )  [pure virtual]

Translate from MUR / module(1-6) number to geographical barrel system. Parameters: MUR  MUR number module  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::convertToBarrelModule().

virtual void SctConfiguration::Configuration::translateToEndcap (  unsigned int  MUR, unsigned int  module, int &  disk, unsigned int &  ring, unsigned int &  number )  [pure virtual]

Translate from MUR / module(1-6) number to geographical endcap system. Parameters: MUR  MUR number module  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::convertToEndcapModule().

virtual void SctConfiguration::Configuration::translateToPowerSupply (  unsigned int  MUR, unsigned int  module, unsigned int &  partition, unsigned int &  crate, unsigned int &  channel )  [pure virtual]

Translate from MUR / module(1-6) number to power supply channel address. Parameters: MUR  MUR number module  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApiDDC::requestHardReset(), SctApiDDC::requestIVCurve(), and SctApiDDC::setSelect().

virtual void SctConfiguration::Configuration::translateToRMUR (  unsigned int  MUR, unsigned int  module, unsigned int &  RMUR, unsigned int &  rmodule )  [pure virtual]

Translate from MUR / module(1-6) number to MUR/module of redundant connection. Parameters: MUR  MUR number module  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::translateToROD (  unsigned int  MUR, unsigned int  module, unsigned int &  partition, unsigned int &  crate, unsigned int &  rod, unsigned int &  channel )  [pure virtual]

Translate from MUR / module(1-6) number to p/k/r/c. Parameters: MUR  MUR number module  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::findBarrelModule(), SctApi::findEndcapModule(), SctApi::findModule(), and SctApi::initialiseModule().

virtual void SctConfiguration::Configuration::translateToRROD (  unsigned int  MUR, unsigned int  module, unsigned int &  partition, unsigned int &  crate, unsigned int &  rod, unsigned int &  channel )  [pure virtual]

Translate from MUR / redundant module(1-6) number to p/k/r/c. This returns the channel to which the module referred to by MUR/module is connected in its redundant configuration Parameters: MUR  MUR number module  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::cacheModuleConfig(), and SctApi::getrpcrc().

virtual void SctConfiguration::Configuration::translateToSN (  unsigned int  MUR, unsigned int  module, std::string &  sn )  [pure virtual]

Translate from MUR / module(1-6) number to serial number. Parameters: MUR  MUR number module  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC. Referenced by SctApi::cacheModuleConfig(), and SctApi::convertToString().

virtual void SctConfiguration::Configuration::unmapBarrelMUR (  unsigned int  MUR  )  [pure virtual]

Unmap MUR from Barrel. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::unmapEndcapMUR (  unsigned int  MUR  )  [pure virtual]

Unmap Endcap MUR. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::unmapModuleMUR (  unsigned int  MUR, unsigned int  order )  [pure virtual]

Unmap a module from a position in an MUR. Parameters: MUR  MUR number order  Module in MUR (1-6) Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::unmapPowerChannel (  unsigned int  MUR, unsigned int  number )  [pure virtual]

Unmap Power channel. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::unmapRODMUR (  unsigned int  MUR  )  [pure virtual]

Unmap an MUR from a ROD. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::useISForChanges (  bool  valid = true  )  [pure virtual]

Use IS in this implementation. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::useMRSForMessages (  bool  valid = true  )  [pure virtual]

Use MRS in this implementation. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, and SctConfiguration::ConfigIPC.

virtual void SctConfiguration::Configuration::writePowerSupplyConfiguration (  std::string  filename  )  [pure virtual]

Dump power supply configuration to a file. Implemented in ConfigurationXMLImpl, ConfigurationDALImpl, OksImpl, and SctConfiguration::ConfigIPC.

---

The documentation for this class was generated from the following file:

• configuration.h

---
