SctApi::ScanDefImpl Class Reference

Inheritance diagram for SctApi::ScanDefImpl:

[legend]Collaboration diagram for SctApi::ScanDefImpl:


Public Member Functions
	ScanDefImpl ()
	Constructor.
	ScanDefImpl (const ScanDefImpl &)
virtual	~ScanDefImpl ()
	Call parent's destructor.
void	configure (UINT16 type, FLOAT32 start, FLOAT32 stop, FLOAT32 step)
	Set up scanPoints.
void	configure2 (UINT16 type, FLOAT32 start, FLOAT32 stop, FLOAT32 step)
	Set up scanPoints for set 2.
const boost::shared_ptr< ::SctApi::Trigger >	getTrigger1 () const
const boost::shared_ptr< ::SctApi::Trigger >	getTrigger2 () const
boost::shared_ptr< ::SctApi::Trigger >	getTrigger1 ()
boost::shared_ptr< ::SctApi::Trigger >	getTrigger2 ()
void	setTrigger1 (boost::shared_ptr< ::SctApi::Trigger > trigger)
void	setTrigger2 (boost::shared_ptr< ::SctApi::Trigger > trigger)
void	setScanVariable1 (unsigned short var)
void	setScanVariable2 (unsigned short var)
unsigned short	getScanVariable1 () const
unsigned short	getScanVariable2 () const
void	setNTrigs (unsigned long nTrigs)
unsigned long	getNTrigs () const
const TrigPoints	getVariableTrigs () const
void	setVariableTrigs (const TrigPoints &scans)
void	setVariableTrigRange (unsigned short start, unsigned short end, unsigned long value)
const ScanPoints	getScanPoints1 () const
const ScanPoints	getScanPoints2 () const
void	setScanPoints1 (const ScanPoints &scans)
void	setScanPoints2 (const ScanPoints &scans)
int	getOption (enum ScanOptions) const
void	setOption (enum ScanOptions, int option)
std::string	print () const
	Print the scan.
void	setScanNumber (unsigned int scan)
unsigned int	getScanNumber () const
void	setRunNumber (unsigned int scan)
unsigned int	getRunNumber () const
::SctApi::ModuleList	getModuleList (unsigned int group) const
void	setModuleList (unsigned int group, const ::SctApi::ModuleList &newList)
unsigned int	getNGroups () const
void	setNGroups (unsigned int val)
virtual boost::posix_time::ptime	getStartTime () const
virtual void	setStartTime (boost::posix_time::ptime t)
virtual boost::posix_time::ptime	getEndTime () const
virtual void	setEndTime (boost::posix_time::ptime t)
Static Public Member Functions
static boost::shared_ptr< ScanDefImpl >	clone (const boost::shared_ptr< const ::SctApi::Scan > other)
Data Fields
ScanPoints	scanPoints
	Scan points to use for first module set.
ScanPoints	scanPoints2
	Scan points for second module set (not used if empty).
TrigPoints	trigPoints
	Trigger count for each scan point.
bool	allTrigsSame
	Are all the trigger counts the same?>.
Private Member Functions
ScanDefImpl &	operator= (const ScanDefImpl &)
Private Attributes
int	scanVariable
	Which variable to scan over.
int	scanVariable2
	Which variable to scan second set over.
boost::shared_ptr< Trigger >	trigSequence
	Sequence of triggers to send to module set 1.
boost::shared_ptr< Trigger >	trigSequence2
	Sequence of triggers to send to module set 2.
int	full
	Condensed / expanded.
int	bits32
	16 / 32
int	loopCalLine
	Loop over the calibration line during the scan.
int	distSlave
	Which slave distribution to use, see SctApi docs.
int	debug
	Debug mode (don't kill tasks and don't write data).
int	tim
	Use TIM for triggers.
int	nth
	When not in group mode, how often to capture an event for histogramming.
int	nth_rem
	Which event of the nth past triggers to capture.
int	enableDataMode
	Whether or not to enableDataMode when module is configured (usually should be true).
int	ccode
	Whether or not to use ccode DSP method for histogramming.
int	ope
	Whether or not to produce occupancy per event histograms.
unsigned int	scanNumber
unsigned int	runNumber
std::vector< std::list< std::string > >	groupLists
unsigned int	m_maxGroup
boost::posix_time::ptime	startTime
	The time the scan started.
boost::posix_time::ptime	endTime
	The time the scan finished.

Detailed Description

Definition at line 23 of file ScanDefImpl.h.

Constructor & Destructor Documentation

ScanDefImpl::ScanDefImpl ( )

Constructor.

Definition at line 336 of file SctApiImpl.cxx.
References scanPoints, scanPoints2, and trigPoints.

ScanDefImpl::~ScanDefImpl ( ) [virtual]

Call parent's destructor.

Definition at line 361 of file SctApiImpl.cxx.

Member Function Documentation

void SctApi::ScanDefImpl::configure ( UINT16 type,

FLOAT32 start,

FLOAT32 stop,

FLOAT32 step

)

Set up scanPoints.

void SctApi::ScanDefImpl::configure2 ( UINT16 type,

FLOAT32 start,

FLOAT32 stop,

FLOAT32 step

)

Set up scanPoints for set 2.

std::string ScanDefImpl::print ( ) const [virtual]

Print the scan.

Implements SctApi::Scan.
Definition at line 666 of file SctApiImpl.cxx.
References allTrigsSame, getNTrigs(), getRunNumber(), getScanNumber(), and getVariableTrigs().

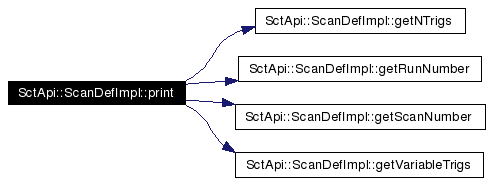

Here is the call graph for this function:

Field Documentation

bool SctApi::ScanDefImpl::allTrigsSame

Are all the trigger counts the same?>.

Definition at line 110 of file ScanDefImpl.h.
Referenced by print(), setScanPoints1(), setVariableTrigRange(), and setVariableTrigs().

int SctApi::ScanDefImpl::bits32 [private]

16 / 32

Definition at line 130 of file ScanDefImpl.h.
Referenced by getOption(), and setOption().

int SctApi::ScanDefImpl::ccode [private]

Whether or not to use ccode DSP method for histogramming.

Definition at line 154 of file ScanDefImpl.h.
Referenced by getOption(), and setOption().

int SctApi::ScanDefImpl::debug [private]

Debug mode (don't kill tasks and don't write data).

Definition at line 139 of file ScanDefImpl.h.
Referenced by getOption(), and setOption().

int SctApi::ScanDefImpl::distSlave [private]

Which slave distribution to use, see SctApi docs.

Definition at line 136 of file ScanDefImpl.h.
Referenced by getOption(), and setOption().

int SctApi::ScanDefImpl::enableDataMode [private]

Whether or not to enableDataMode when module is configured (usually should be true).

Definition at line 151 of file ScanDefImpl.h.
Referenced by getOption(), and setOption().

boost::posix_time::ptime SctApi::ScanDefImpl::endTime [private]

The time the scan finished.

Definition at line 166 of file ScanDefImpl.h.
Referenced by getEndTime().

int SctApi::ScanDefImpl::full [private]

Condensed / expanded.

Definition at line 127 of file ScanDefImpl.h.
Referenced by getOption(), and setOption().

int SctApi::ScanDefImpl::loopCalLine [private]

Loop over the calibration line during the scan.

Definition at line 133 of file ScanDefImpl.h.
Referenced by getOption(), and setOption().

int SctApi::ScanDefImpl::nth [private]

When not in group mode, how often to capture an event for histogramming.

Definition at line 145 of file ScanDefImpl.h.
Referenced by getOption(), and setOption().

int SctApi::ScanDefImpl::nth_rem [private]

Which event of the nth past triggers to capture.

Definition at line 148 of file ScanDefImpl.h.
Referenced by getOption(), and setOption().

int SctApi::ScanDefImpl::ope [private]

Whether or not to produce occupancy per event histograms.

Definition at line 157 of file ScanDefImpl.h.
Referenced by getOption(), and setOption().

ScanPoints SctApi::ScanDefImpl::scanPoints

Scan points to use for first module set.

Definition at line 101 of file ScanDefImpl.h.
Referenced by getScanPoints1(), ScanDefImpl(), setNTrigs(), and setScanPoints1().

ScanPoints SctApi::ScanDefImpl::scanPoints2

Scan points for second module set (not used if empty).

Definition at line 104 of file ScanDefImpl.h.
Referenced by getScanPoints2(), ScanDefImpl(), and setScanPoints2().

int SctApi::ScanDefImpl::scanVariable [private]

Which variable to scan over.

Definition at line 115 of file ScanDefImpl.h.
Referenced by getScanVariable1(), and setScanVariable1().

int SctApi::ScanDefImpl::scanVariable2 [private]

Which variable to scan second set over.

Definition at line 118 of file ScanDefImpl.h.
Referenced by getScanVariable2(), and setScanVariable2().

boost::posix_time::ptime SctApi::ScanDefImpl::startTime [private]

The time the scan started.

Definition at line 165 of file ScanDefImpl.h.
Referenced by getStartTime().

int SctApi::ScanDefImpl::tim [private]

Use TIM for triggers.

Definition at line 142 of file ScanDefImpl.h.
Referenced by getOption(), and setOption().

TrigPoints SctApi::ScanDefImpl::trigPoints

Trigger count for each scan point.

Definition at line 107 of file ScanDefImpl.h.
Referenced by getNTrigs(), getVariableTrigs(), ScanDefImpl(), setNTrigs(), setScanPoints1(), setVariableTrigRange(), and setVariableTrigs().

boost::shared_ptr<Trigger> SctApi::ScanDefImpl::trigSequence [private]

Sequence of triggers to send to module set 1.

Definition at line 121 of file ScanDefImpl.h.
Referenced by getTrigger1(), and setTrigger1().

boost::shared_ptr<Trigger> SctApi::ScanDefImpl::trigSequence2 [private]

Sequence of triggers to send to module set 2.

Definition at line 124 of file ScanDefImpl.h.
Referenced by getTrigger2(), and setTrigger2().

The documentation for this class was generated from the following files:
