SctApi::ScanControlRODHisto Class Reference

Control a histogram on a ROD. More...

#include <SctApiHisto.h>

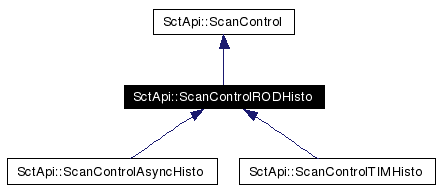

Inheritance diagram for SctApi::ScanControlRODHisto:

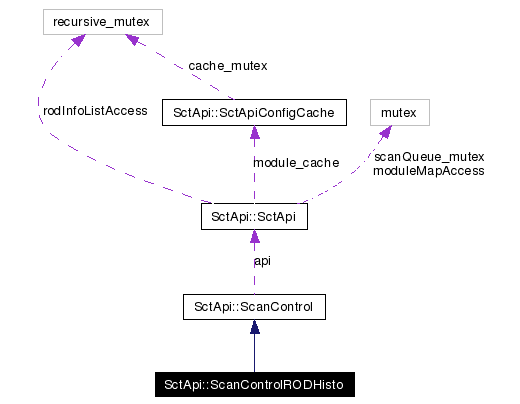

[legend]Collaboration diagram for SctApi::ScanControlRODHisto:


Public Types
typedef std::pair< std::pair< int, int >, std::pair< int, int > >	TrapBuffers
Public Member Functions
	ScanControlRODHisto (SctApi &api, boost::shared_ptr< Scan > aScan, boost::shared_ptr< ScanEx > aScanEx)
virtual	~ScanControlRODHisto ()
void	startHistogramming ()
	Check possible and start.
void	initialisePolling ()
	Setup variables after starting histogramming?
void	reportEventErrors ()
	Report on event errors found in slaves.
TrapBuffers	getTrapBuffers (const RodLabel rlabel, int dsp)
	Return head and tail of iframe and xframe buffers.
unsigned int	getProcTime (const RodLabel rlabel, int dsp)
	Return the processing time for the last trigger.
void	dumpHistoStatus (const RodLabel label, int dsp)
	Report on status of histogramming and event traps.
void	reportTimeout ()
	Report on progress at timeout.
void	nextBin ()
	Move to the next bin (not necessary).
bool	checkScanComplete (bool &progressMade, bool &newBin)
	Is the scan complete?
void	abort ()
	Signal that the next checkScanComplete should return true.
virtual bool	checkScanCompleteROD (const RodLabel &rodLabel, bool &progressMade, bool &newBin, int &totalBin)
	Is this ROD scan complete?
void	finishHistogram (bool success)
	Tidy up, read out and save histogram.
std::pair< RodLabel, unsigned int >	findModuleSlave (unsigned int mid)
Protected Member Functions
unsigned int	getEventCounter (const RodLabel &rodLabel, int slave, bool fromMaster)
	Find the event counter on the ROD.
void	readHistograms ()
	Read all module's histogram data.
scan_result_ptrs	readHistogramData (UINT32 mid, int frame=0)
	Read histogram data.
char *	readHistogramRawData (UINT32 mid, int frame=0)
void	postScanModuleSetup ()
	Restore modules after scanning.
unsigned long *	getHistogramChunk (RodLabel label, int slave, unsigned long offset, unsigned long size)
	This caches the result from sendData and allows indexing each bin individually.
unsigned long *	getEventCountChunk (RodLabel label, int slave)
	Provides cache of data which will be the same for all modules.
bool	checkDebugOption (int opt)
bool	findNextSection ()
Protected Attributes
std::map< RodLabel, int >	lastBin
std::map< RodLabel, int >	lastEvent
std::map< RodLabel, bool >	reportedFinished
boost::shared_ptr< Scan >	scan
boost::shared_ptr< ScanEx >	scanEx
int	finalBin
int	finalTrigger
int	sectionStartBin
int	sectionEndBin
int	sectionEndTrigger
time_t	scanStart
bool	aborting

Detailed Description

Control a histogram on a ROD.

Definition at line 201 of file SctApiHisto.h.

Member Function Documentation

void SctApi::ScanControlRODHisto::abort ( ) [virtual]

Signal that the next checkScanComplete should return true.

Implements SctApi::ScanControl.
Definition at line 2432 of file SctApiHisto.cxx.
References aborting.

bool SctApi::ScanControlRODHisto::checkScanComplete ( bool & progressMade,

bool & newBin

) [virtual]

Is the scan complete?

Implements SctApi::ScanControl.
Definition at line 2378 of file SctApiHisto.cxx.
References aborting, and checkScanCompleteROD().

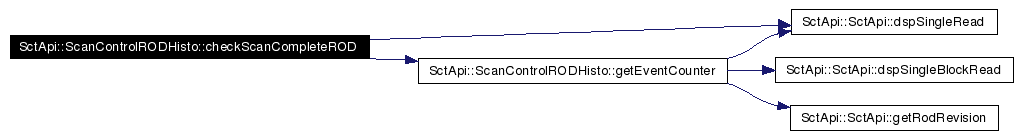

Here is the call graph for this function:

bool SctApi::ScanControlRODHisto::checkScanCompleteROD ( const RodLabel & rodLabel,

bool & progressMade,

bool & newBin,

int & totalBin

) [virtual]

Is this ROD scan complete?

Reimplemented in SctApi::ScanControlTIMHisto.
Definition at line 2480 of file SctApiHisto.cxx.
References SctApi::ScanControl::api, SctApi::RodScanEx::bitFieldDSP, SctApi::RodLabel::crate, SctApi::SctApi::dspSingleRead(), SctApi::RodScanEx::firstSlave, getEventCounter(), lastBin, SctApi::RodLabel::partition, SctApi::RodLabel::rod, sectionEndBin, and sectionEndTrigger.
Referenced by checkScanComplete().
Here is the call graph for this function:

void SctApi::ScanControlRODHisto::dumpHistoStatus ( const RodLabel label,

int dsp

)

Report on status of histogramming and event traps.

Definition at line 2857 of file SctApiHisto.cxx.
References SctApi::ScanControl::api, SctApi::SctApi::dspBlockRead(), SctApi::SctApi::dspSingleRead(), SctApi::SctApi::getRodRevision(), and SctApi::RodLabel::rod.

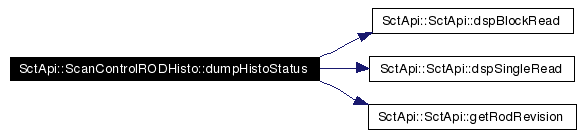

Here is the call graph for this function:

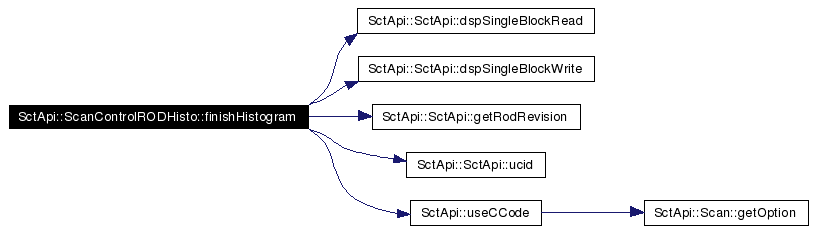

void SctApi::ScanControlRODHisto::finishHistogram ( bool success ) [virtual]

Tidy up, read out and save histogram.

Implements SctApi::ScanControl.
Reimplemented in SctApi::ScanControlTIMHisto, and SctApi::ScanControlAsyncHisto.
Definition at line 2630 of file SctApiHisto.cxx.
References SctApi::ScanControl::api, SctApi::SctApi::dspSingleBlockRead(), SctApi::SctApi::dspSingleBlockWrite(), SctApi::SctApi::getRodRevision(), SctApi::SctApi::ucid(), and SctApi::useCCode().
Referenced by SctApi::ScanControlAsyncHisto::finishHistogram(), and SctApi::ScanControlTIMHisto::finishHistogram().
Here is the call graph for this function:

unsigned long * SctApi::ScanControlRODHisto::getEventCountChunk ( RodLabel label,

int slave

) [protected]

Provides cache of data which will be the same for all modules.

Definition at line 2143 of file SctApiHisto.cxx.
References SctApi::Utility::MemoryBlock::address(), SctApi::ScanControl::api, SctApi::SctApi::primReadSlaveDsp(), SctApi::RodLabel::rod, and SctApi::SctApi::sendData().
Here is the call graph for this function:

unsigned int SctApi::ScanControlRODHisto::getEventCounter ( const RodLabel & rodLabel,

int slave,

bool fromMaster

) [protected]

Find the event counter on the ROD.

Parameters:

rodLabel Which ROD to read from

slave Which slave counter to read

fromMaster If true use the 16 bit copy, otherwise get 32bit from slave

Definition at line 2436 of file SctApiHisto.cxx.
References SctApi::ScanControl::api, SctApi::SctApi::dspSingleBlockRead(), SctApi::SctApi::dspSingleRead(), SctApi::SctApi::getRodRevision(), and SctApi::RodLabel::rod.
Referenced by SctApi::ScanControlTIMHisto::checkScanCompleteROD(), and checkScanCompleteROD().

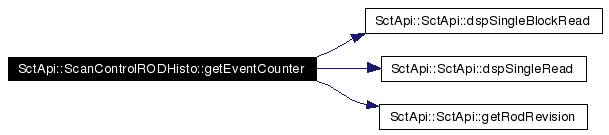

Here is the call graph for this function:

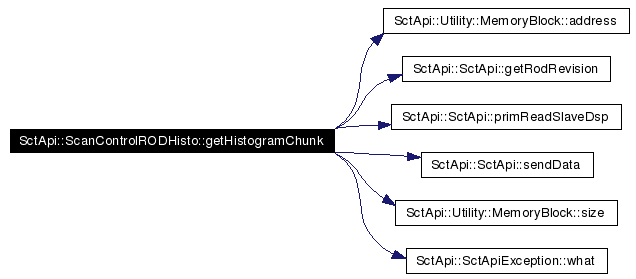

unsigned long * SctApi::ScanControlRODHisto::getHistogramChunk ( RodLabel label,

int slave,

unsigned long offset,

unsigned long size

) [protected]

This caches the result from sendData and allows indexing each bin individually.

Definition at line 2089 of file SctApiHisto.cxx.
References SctApi::Utility::MemoryBlock::address(), SctApi::ScanControl::api, SctApi::RodLabel::crate, SctApi::SctApi::getRodRevision(), SctApi::SctApi::mrs, SctApi::SctApi::primReadSlaveDsp(), SctApi::RodLabel::rod, SctApi::SctApi::sendData(), SctApi::Utility::MemoryBlock::size(), and SctApi::SctApiException::what().
Here is the call graph for this function:

unsigned int SctApi::ScanControlRODHisto::getProcTime ( const RodLabel rlabel,

int dsp

)

Return the processing time for the last trigger.

Definition at line 2786 of file SctApiHisto.cxx.
References SctApi::ScanControl::api, SctApi::SctApi::dspBlockRead(), SctApi::SctApi::getRodRevision(), and SctApi::RodLabel::rod.
Here is the call graph for this function:

ScanControlRODHisto::TrapBuffers SctApi::ScanControlRODHisto::getTrapBuffers ( const RodLabel rlabel,

int dsp

)

Return head and tail of iframe and xframe buffers.

Definition at line 2819 of file SctApiHisto.cxx.
References SctApi::ScanControl::api, SctApi::SctApi::dspBlockRead(), SctApi::SctApi::getRodRevision(), and SctApi::RodLabel::rod.
Here is the call graph for this function:

void SctApi::ScanControlRODHisto::initialisePolling ( ) [virtual]

Setup variables after starting histogramming?

Implements SctApi::ScanControl.
Definition at line 2203 of file SctApiHisto.cxx.
References SctApi::ScanControl::api, SctApi::SctApi::mrs, scanStart, Sct::StringStreamer, and SctApi::SctApi::ucid().
Here is the call graph for this function:

void SctApi::ScanControlRODHisto::nextBin ( ) [virtual]

Move to the next bin (not necessary).

Implements SctApi::ScanControl.
Reimplemented in SctApi::ScanControlTIMHisto, and SctApi::ScanControlAsyncHisto.
Definition at line 2297 of file SctApiHisto.cxx.
References SctApi::ScanControl::api, SctApi::SctApi::awaitResponse(), finalBin, findNextSection(), sectionEndBin, sectionEndTrigger, sectionStartBin, SctApi::SctApi::sendPrimList(), and SctApi::SctApi::startHistogramTask().

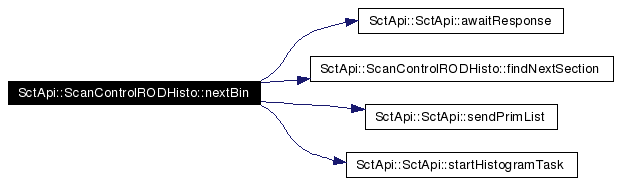

Here is the call graph for this function:

void SctApi::ScanControlRODHisto::postScanModuleSetup ( ) [protected]

Restore modules after scanning.

Definition at line 2774 of file SctApiHisto.cxx.
References SctApi::ScanControl::api, and SctApi::SctApi::setErrorMasks().
Here is the call graph for this function:

scan_result_ptrs SctApi::ScanControlRODHisto::readHistogramData ( UINT32 mid,

int frame = 0

) [protected]

Read histogram data.

Definition at line 1355 of file SctApiHisto.cxx.
References SctApi::ScanControl::api, scan_result_ptrs::data, SctApi::SctApiConfigCache::getFromMid(), SctApi::SctApi::getModuleConfigCache(), SctApi::SctApi::mrs, and readHistogramRawData().
Referenced by readHistograms().

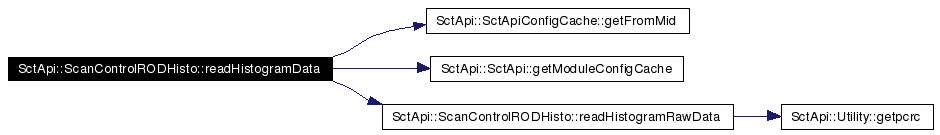

Here is the call graph for this function:

void SctApi::ScanControlRODHisto::readHistograms ( ) [protected]

Read all module's histogram data.

Definition at line 1228 of file SctApiHisto.cxx.
References SctApi::ScanControl::api, checkDebugOption(), SctApi::SctApi::convertToString(), scan_result_ptrs::data, SctApi::SctApi::findModule(), SctApi::Utility::getpcrc(), scan_result_ptrs::header, SctApi::SctApi::listRods(), SctApi::SctApi::mrs, scan_result_ptrs::nErrorEvents, scan_result_ptrs::nEvents, scan_result_ptrs::points, readHistogramData(), SctApi::readHistogramToFile(), SctApi::readHistogramToIS(), ScanHeader::scanNumber, and SctApi::SctApi::ucid().

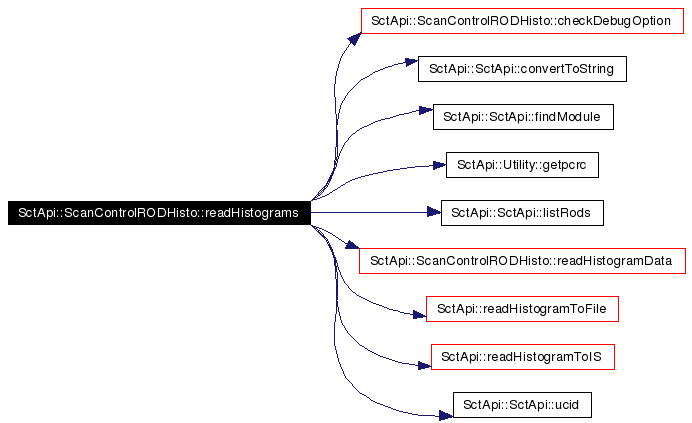

Here is the call graph for this function:

void SctApi::ScanControlRODHisto::reportEventErrors ( ) [virtual]

Report on event errors found in slaves.

Implements SctApi::ScanControl.
Definition at line 2782 of file SctApiHisto.cxx.
References SctApi::ScanControl::api, and SctApi::SctApi::reportEventErrors().
Here is the call graph for this function:

void SctApi::ScanControlRODHisto::reportTimeout ( ) [virtual]

Report on progress at timeout.

Implements SctApi::ScanControl.
Definition at line 2244 of file SctApiHisto.cxx.

void SctApi::ScanControlRODHisto::startHistogramming ( ) [virtual]

Check possible and start.

Implements SctApi::ScanControl.
Reimplemented in SctApi::ScanControlTIMHisto, and SctApi::ScanControlAsyncHisto.
Definition at line 1890 of file SctApiHisto.cxx.
References checkDebugOption().
Here is the call graph for this function:
