SctData.ConfigurationVariable Class Reference

ConfigurationVariable represents a variable within ModuleConfiguration/ABCDModule. More...

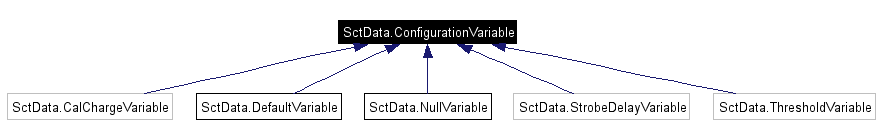

Inheritance diagram for SctData.ConfigurationVariable:

Inheritance graph
[legend]
List of all members.

Public Member Functions

boolean equals (Object o)
String getVariableName ()
String getStrategyDescription ()
String getClassName ()
void write (OStream s, ObjectManager o) throws java.io.IOException

Static Public Member Functions

ConfigurationVariable read (IStream in, ObjectManager o) throws java.io.IOException

Protected Attributes

short repVal

Package Functions

 ConfigurationVariable (String variableName, String description)

Private Attributes

String variableName
String description

Detailed Description

ConfigurationVariable represents a variable within ModuleConfiguration/ABCDModule.

Sub-classes represent the particular (logical) variables and the different ways of setting them (e.g. ThresholdVariable represents the logical variable threshold and mVThresholdVariable represents setting the threshold in mV, fCThresholdVariable represents setting it in fC). The sub-classes are intended to be singletons (as they are really strategies and flyweights).

There are lots of methods here, but the basic concept is that there is some underlying 'actual' value. This is either the setting of the appropriate variable in ABCDModule. For instance it could be a DAC setting. The logical value is some manipulation of that - for instance it could be the DAC setting in mV (rather than raw bits) or in fC is there is some calibration information that allows one to be converted to another.

This cocnept certainly has meaning for chip variables and may have meaning for others. This class should be refactored as and when this becomes apparent.

The idea is that this should allow transparent and simple analysis of e.g. a thershold scan done in mV or fC. For the moment these methods aren't used by anything, so I've commented them out

Todo:
Refactor!!
Author:
Matthew Palmer

Definition at line 32 of file ConfigurationVariable.java.
