Sct::Streamer Class Reference

A streamer converts to and from a streamed representation of a data object. More...

#include <Streamer.h>

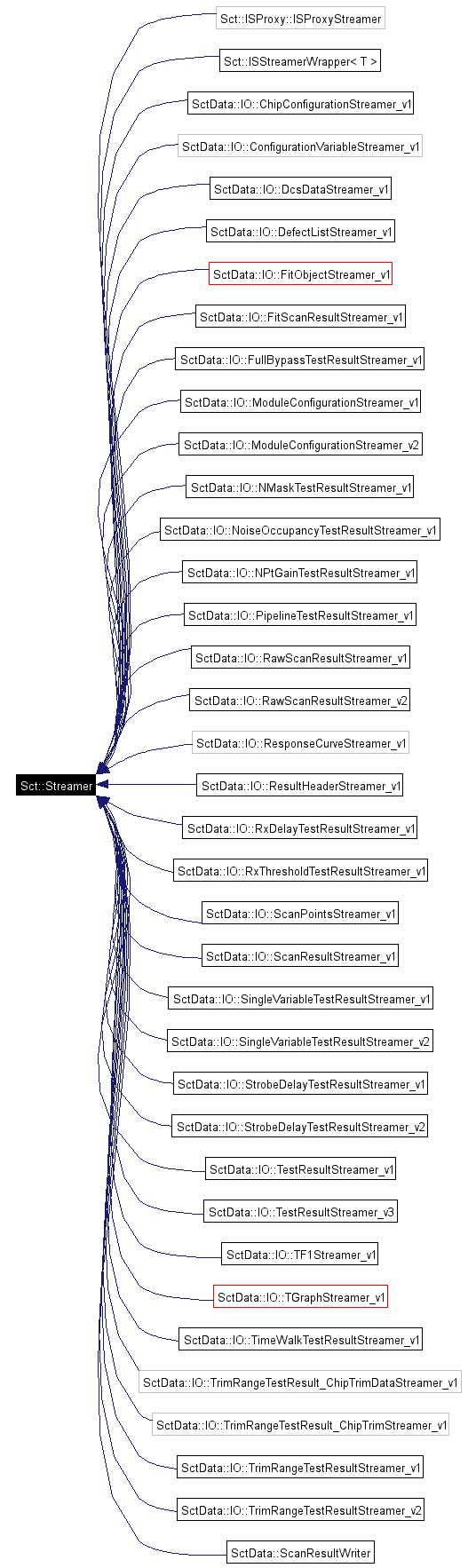

Inheritance diagram for Sct::Streamer:

[legend]

Public Member Functions
virtual void	write (OStream &out, const Streamable &ob, const IOManager &manager) const=0
	Publishes ob to out.
virtual shared_ptr< Streamable >	read (IStream &in, const IOManager &manager) const=0
	Create a new Streamable object of the appropriate type from IS.
virtual void	read (IStream &in, Streamable &ob, const IOManager &manager) const=0
	Refreshes ob from in.
virtual unsigned	getVersion () const=0 throw ()

---

Detailed Description

A streamer converts to and from a streamed representation of a data object.

The data object must impliment Streamable. The actual representation of the streamed data (e.g. file, IS, ... ) is decided by the sub-class of IStream or OStream, which is provided by the sub-class of IOManager.

Streamers can make use of other streamers, but MUST use the IOManager to find the streamer. The (e.g.) RawScanResultStreamer must not do ScanResultStreamer.write(ob); RawScanResultStreamer can use ScanResultStreamer, not directly, but by calling manager.getStreamer("SctData::ScanResult").write(ob);

Definition at line 26 of file Streamer.h.

---

Member Function Documentation

virtual void Sct::Streamer::read (  IStream &  in, Streamable &  ob, const IOManager &  manager )  const [pure virtual]

Refreshes ob from in. Parameters: in  The IStream ob  The Streamable object to be refreshed. manager  the IOManager to use Exceptions: IoException  if something bad happens Implemented in Sct::ISStreamerWrapper< T >, SctData::ScanResultWriter, SctData::IO::ChipConfigurationStreamer_v1, SctData::IO::DefectListStreamer_v1, SctData::IO::FitObjectStreamer_v1, SctData::IO::FitScanResultStreamer_v1, SctData::IO::FullBypassTestResultStreamer_v1, SctData::IO::ModuleConfigurationStreamer_v1, SctData::IO::ModuleConfigurationStreamer_v2, SctData::IO::NMaskTestResultStreamer_v1, SctData::IO::NoiseOccupancyTestResultStreamer_v1, SctData::IO::NPtGainTestResultStreamer_v1, SctData::IO::PipelineTestResultStreamer_v1, SctData::IO::RawScanResultStreamer_v1, SctData::IO::RawScanResultStreamer_v2, SctData::IO::ResultHeaderStreamer_v1, SctData::IO::RxDelayTestResultStreamer_v1, SctData::IO::RxThresholdTestResultStreamer_v1, SctData::IO::ScanPointsStreamer_v1, SctData::IO::ScanResultStreamer_v1, SctData::IO::SingleVariableTestResultStreamer_v1, SctData::IO::SingleVariableTestResultStreamer_v2, SctData::IO::StrobeDelayTestResultStreamer_v1, SctData::IO::StrobeDelayTestResultStreamer_v2, SctData::IO::TestResultStreamer_v1, SctData::IO::TestResultStreamer_v3, SctData::IO::TF1Streamer_v1, SctData::IO::TGraphStreamer_v1, SctData::IO::TimeWalkTestResultStreamer_v1, SctData::IO::TrimRangeTestResultStreamer_v1, and SctData::IO::TrimRangeTestResultStreamer_v2.

virtual shared_ptr<Streamable> Sct::Streamer::read (  IStream &  in, const IOManager &  manager )  const [pure virtual]

Create a new Streamable object of the appropriate type from IS. Parameters: in  The IStream. manager  the IOManager to use Returns: a new Streamable object Exceptions: IoException  if something bad happens Implemented in Sct::ISStreamerWrapper< T >, SctData::ScanResultWriter, SctData::IO::ChipConfigurationStreamer_v1, SctData::IO::DefectListStreamer_v1, SctData::IO::FitScanResultStreamer_v1, SctData::IO::FullBypassTestResultStreamer_v1, SctData::IO::ModuleConfigurationStreamer_v1, SctData::IO::ModuleConfigurationStreamer_v2, SctData::IO::NMaskTestResultStreamer_v1, SctData::IO::NoiseOccupancyTestResultStreamer_v1, SctData::IO::NPtGainTestResultStreamer_v1, SctData::IO::PipelineTestResultStreamer_v1, SctData::IO::RawScanResultStreamer_v1, SctData::IO::RawScanResultStreamer_v2, SctData::IO::ResultHeaderStreamer_v1, SctData::IO::RxDelayTestResultStreamer_v1, SctData::IO::RxThresholdTestResultStreamer_v1, SctData::IO::ScanPointsStreamer_v1, SctData::IO::ScanResultStreamer_v1, SctData::IO::SingleVariableTestResultStreamer_v1, SctData::IO::SingleVariableTestResultStreamer_v2, SctData::IO::StrobeDelayTestResultStreamer_v1, SctData::IO::StrobeDelayTestResultStreamer_v2, SctData::IO::TestResultStreamer_v1, SctData::IO::TestResultStreamer_v3, SctData::IO::TF1Streamer_v1, SctData::IO::TGraphStreamer_v1, SctData::IO::TimeWalkTestResultStreamer_v1, SctData::IO::TrimRangeTestResultStreamer_v1, and SctData::IO::TrimRangeTestResultStreamer_v2. Referenced by Sct::Archive::IOManagerStreamerVersioned::readImpl(), Sct::IOManager::readImpl(), and Sct::IOManagerDummy::testStreaming2().

virtual void Sct::Streamer::write (  OStream &  out, const Streamable &  ob, const IOManager &  manager )  const [pure virtual]

Publishes ob to out. Parameters: out  The OStream. ob  The Streamable object to stream. manager  the IOManager to use Exceptions: IoException  if something bad happens Implemented in Sct::ISStreamerWrapper< T >, SctData::ScanResultWriter, SctData::IO::ChipConfigurationStreamer_v1, SctData::IO::DefectListStreamer_v1, SctData::IO::FitObjectStreamer_v1, SctData::IO::FitScanResultStreamer_v1, SctData::IO::FullBypassTestResultStreamer_v1, SctData::IO::ModuleConfigurationStreamer_v1, SctData::IO::ModuleConfigurationStreamer_v2, SctData::IO::NMaskTestResultStreamer_v1, SctData::IO::NoiseOccupancyTestResultStreamer_v1, SctData::IO::NPtGainTestResultStreamer_v1, SctData::IO::PipelineTestResultStreamer_v1, SctData::IO::RawScanResultStreamer_v1, SctData::IO::RawScanResultStreamer_v2, SctData::IO::ResultHeaderStreamer_v1, SctData::IO::RxDelayTestResultStreamer_v1, SctData::IO::RxThresholdTestResultStreamer_v1, SctData::IO::ScanPointsStreamer_v1, SctData::IO::ScanResultStreamer_v1, SctData::IO::SingleVariableTestResultStreamer_v1, SctData::IO::SingleVariableTestResultStreamer_v2, SctData::IO::StrobeDelayTestResultStreamer_v1, SctData::IO::StrobeDelayTestResultStreamer_v2, SctData::IO::TestResultStreamer_v1, SctData::IO::TestResultStreamer_v3, SctData::IO::TF1Streamer_v1, SctData::IO::TGraphStreamer_v1, SctData::IO::TimeWalkTestResultStreamer_v1, SctData::IO::TrimRangeTestResultStreamer_v1, and SctData::IO::TrimRangeTestResultStreamer_v2. Referenced by Sct::IOManagerDummy::testStreaming1(), Sct::IOManagerDummy::testStreaming2(), Sct::Archive::IOManagerStreamerVersioned::writeImpl(), and Sct::IOManager::writeImpl().

---

The documentation for this class was generated from the following file:

• Streamer.h

---
