SctData::IO::RawScanResultStreamer_v1 Class Reference

This class is an ISSerializer for reading/writing RawScanResults to/from IS. More...

#include <RawScanResultStreamer_v1.h>

Inheritance diagram for SctData::IO::RawScanResultStreamer_v1:

[legend]Collaboration diagram for SctData::IO::RawScanResultStreamer_v1:

[legend]

Public Member Functions
virtual void	write (OStream &out, const Streamable &ob, const IOManager &manager) const
	Publishes ob to out.
virtual shared_ptr< Streamable >	read (IStream &in, const IOManager &manager) const
	Create a new Streamable object of the appropriate type from IS.
virtual void	read (IStream &in, Streamable &ob, const IOManager &manager) const
	Refreshes ob from in.
virtual unsigned	getVersion () const throw ()
Private Member Functions
void	readData (IStream &in, RawScanResult &raw) const
	Based on the data type, passes control onto the appropriate function for reading out the data.
void	readSliceData (unsigned int size, unsigned short width, IStream &in, RawScanResult &raw) const
	Reads in data in Slice format from IS.
void	readRootData (unsigned int size, unsigned short width, IStream &in, RawScanResult &raw) const
	Reads in data in ROOT format from IS.
void	readRawData (unsigned int size, unsigned short width, IStream &in, RawScanResult &raw) const
	Reads in data in Raw format from IS.
void	setHistSize (RawScanResult &raw, unsigned nbinsx, short unsigned ilink) const
	RawScanResultStreamer_v1 () throw ()
	Constructor is private.
Private Attributes
RawScanResultIOHelper	helper
	The IOHelper.
Static Private Attributes
unsigned	s_version
bool	inMap
	The static dummy variable for the IOManager map.

---

Detailed Description

This class is an ISSerializer for reading/writing RawScanResults to/from IS.

Definition at line 19 of file RawScanResultStreamer_v1.h.

---

Constructor & Destructor Documentation

SctData::IO::RawScanResultStreamer_v1::RawScanResultStreamer_v1 (   )  throw () [private]

Constructor is private. Definition at line 26 of file RawScanResultStreamer_v1.cpp.

---

Member Function Documentation

void SctData::IO::RawScanResultStreamer_v1::read (  IStream &  in, Streamable &  ob, const IOManager &  manager )  const [virtual]

Refreshes ob from in. Parameters: in  The IStream ob  The Streamable object to be refreshed. manager  the IOManager to use Exceptions: IoException  if something bad happens Implements Sct::Streamer. Definition at line 53 of file RawScanResultStreamer_v1.cpp. References helper, readData(), and Sct::IOManager::readImpl().

Here is the call graph for this function:

shared_ptr< Streamable > SctData::IO::RawScanResultStreamer_v1::read (  IStream &  in, const IOManager &  manager )  const [virtual]

Create a new Streamable object of the appropriate type from IS. Parameters: in  The IStream. manager  the IOManager to use Returns: a new Streamable object Exceptions: IoException  if something bad happens Implements Sct::Streamer. Definition at line 30 of file RawScanResultStreamer_v1.cpp. References helper.

void SctData::IO::RawScanResultStreamer_v1::readData (  IStream &  in, RawScanResult &  raw )  const [private]

Based on the data type, passes control onto the appropriate function for reading out the data. AJB 02/05/2003 Definition at line 88 of file RawScanResultStreamer_v1.cpp. References helper, readRawData(), readRootData(), and readSliceData(). Referenced by read().

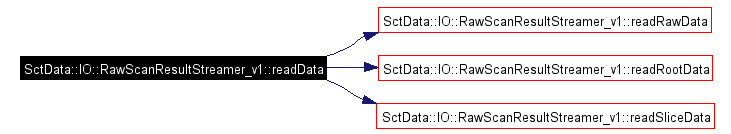

Here is the call graph for this function:

void SctData::IO::RawScanResultStreamer_v1::readRawData (  unsigned int  size, unsigned short  width, IStream &  in, RawScanResult &  raw )  const [private]

Reads in data in Raw format from IS. Definition at line 141 of file RawScanResultStreamer_v1.cpp. References SctData::ScanPoints::ascending(), Sct::IStream::get(), SctData::ScanPoints::getNPoints(), SctData::ScanResult::getPoints(), and helper. Referenced by readData().

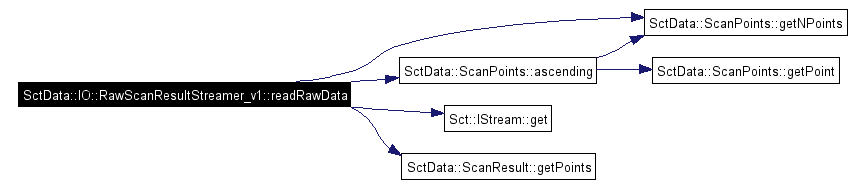

Here is the call graph for this function:

void SctData::IO::RawScanResultStreamer_v1::readRootData (  unsigned int  size, unsigned short  width, IStream &  in, RawScanResult &  raw )  const [private]

Reads in data in ROOT format from IS. I.e. same data format as is published by this. Definition at line 113 of file RawScanResultStreamer_v1.cpp. References Sct::IStream::get(), SctData::ScanPoints::getNPoints(), SctData::ScanResult::getPoints(), and helper. Referenced by readData().

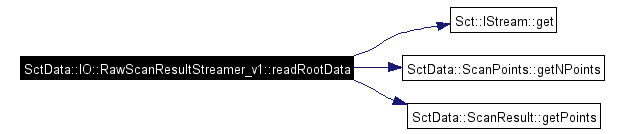

Here is the call graph for this function:

void SctData::IO::RawScanResultStreamer_v1::readSliceData (  unsigned int  size, unsigned short  width, IStream &  in, RawScanResult &  raw )  const [private]

Reads in data in Slice format from IS. Definition at line 202 of file RawScanResultStreamer_v1.cpp. References SctData::ScanPoints::ascending(), Sct::IStream::get(), SctData::ScanPoints::getNPoints(), SctData::ScanResult::getPoints(), and helper. Referenced by readData().

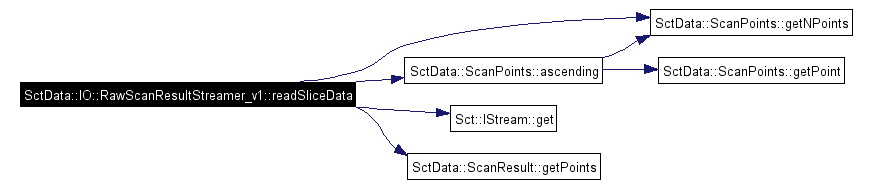

Here is the call graph for this function:

void SctData::IO::RawScanResultStreamer_v1::write (  OStream &  out, const Streamable &  ob, const IOManager &  manager )  const [virtual]

Publishes ob to out. Parameters: out  The OStream. ob  The Streamable object to stream. manager  the IOManager to use Exceptions: IoException  if something bad happens Implements Sct::Streamer. Definition at line 36 of file RawScanResultStreamer_v1.cpp. References helper, Sct::OStream::put(), and Sct::IOManager::writeImpl().

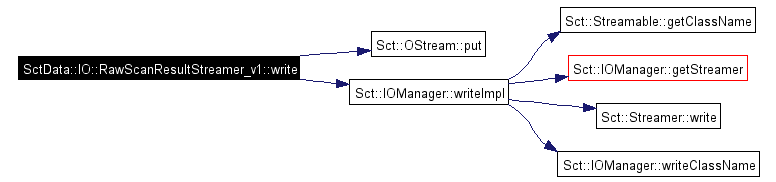

Here is the call graph for this function:

---

Field Documentation

RawScanResultIOHelper SctData::IO::RawScanResultStreamer_v1::helper [mutable, private]

The IOHelper. Definition at line 51 of file RawScanResultStreamer_v1.h. Referenced by read(), readData(), readRawData(), readRootData(), readSliceData(), and write().

bool SctData::IO::RawScanResultStreamer_v1::inMap [static, private]

The static dummy variable for the IOManager map. Definition at line 28 of file RawScanResultStreamer_v1.cpp.

---

The documentation for this class was generated from the following files:

• RawScanResultStreamer_v1.h
• RawScanResultStreamer_v1.cpp

---
