TScanDef Class Reference

TScanDef class. More...

#include <TApi.h>

Inheritance diagram for TScanDef:

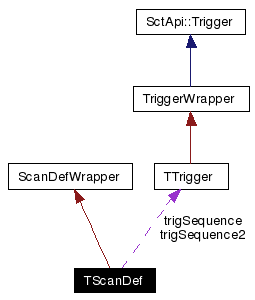

[legend]Collaboration diagram for TScanDef:

[legend]

Public Member Functions
	TScanDef ()
	Constructor.
	TScanDef (const TScanDef &)
virtual	~TScanDef ()
	Call appropriate destructor.
void	print ()
	Print the scan (not const as it has to do an update.
void	configure (UINT16 type, FLOAT32 start, FLOAT32 stop, FLOAT32 step)
	Set up scanPoints.
void	configure2 (UINT16 type, FLOAT32 start, FLOAT32 stop, FLOAT32 step)
	Set up scanPoints for set 2.
void	setScanPoint (int index, FLOAT32 value)
	Set individual scanPoints for set 1.
void	setScanPoint2 (int index, FLOAT32 value)
	Set individual scanPoints for set 2.
void	setTriggersPoint (int index, UINT32 ntrigs)
	Set number of triggers for a scan point.
Data Fields
long	trigsPerBurst
	How many triggers to be sent for each scan point.
int	scanVariable
	Which variable to scan over.
int	scanVariable2
	Which variable to scan second set over.
TTrigger	trigSequence
	Sequence of triggers to send to module set 1.
TTrigger	trigSequence2
	Sequence of triggers to send to module set 2.
int	full
	Condensed / expanded.
int	bits32
	16 / 32
int	loopCalLine
	Loop over the calibration line during the scan.
int	distSlave
	Which slave distribution to use, see SctApi docs.
int	debug
	Debug mode (don't kill tasks and don't write data).
int	tim
	Use TIM for triggers.
int	nth
	When not in group mode, how often to capture an event for histogramming.
int	nth_rem
	Which event of the nth past triggers to capture.
int	enableDataMode
	Whether or not to put the module into dataTaking mode during configure.
int	ccode
	Whether or not to force use of ccode.
int	ope
	Whether or not to request ope histograms.
Private Member Functions
TScanDef &	operator= (const TScanDef &)
void	update ()
	Synchronise worker with other contents of object.
Friends
class	TApi

---

Detailed Description

TScanDef class.

Wrap Scan class for ROOT

Definition at line 89 of file TApi.h.

---

Constructor & Destructor Documentation

TScanDef::TScanDef (   )

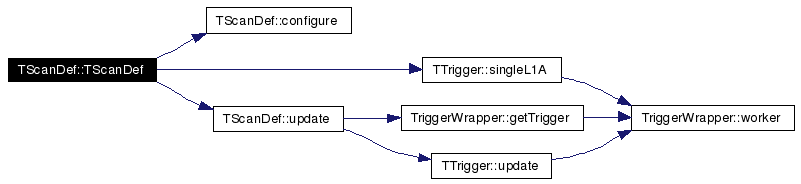

Constructor. Definition at line 819 of file TApi.cxx. References configure(), TTrigger::singleL1A(), trigSequence, update(), and ScanDefWrapper::worker. Here is the call graph for this function:

TScanDef::~TScanDef (   )  [virtual]

Call appropriate destructor. Definition at line 837 of file TApi.cxx.

---

Member Function Documentation

void TScanDef::configure (  UINT16  type, FLOAT32  start, FLOAT32  stop, FLOAT32  step )

Set up scanPoints. Definition at line 900 of file TApi.cxx. References scanVariable, and ScanDefWrapper::worker. Referenced by TScanDef().

void TScanDef::configure2 (  UINT16  type, FLOAT32  start, FLOAT32  stop, FLOAT32  step )

Set up scanPoints for set 2. Definition at line 905 of file TApi.cxx. References scanVariable2, and ScanDefWrapper::worker.

void TScanDef::print (   )

Print the scan (not const as it has to do an update. Definition at line 895 of file TApi.cxx. References update(), and ScanDefWrapper::worker. Here is the call graph for this function:

void TScanDef::setScanPoint (  int  index, FLOAT32  value )

Set individual scanPoints for set 1. Definition at line 910 of file TApi.cxx. References ScanDefWrapper::worker.

void TScanDef::setScanPoint2 (  int  index, FLOAT32  value )

Set individual scanPoints for set 2. Definition at line 914 of file TApi.cxx. References ScanDefWrapper::worker.

void TScanDef::setTriggersPoint (  int  index, UINT32  ntrigs )

Set number of triggers for a scan point. Definition at line 918 of file TApi.cxx. References trigsPerBurst, and ScanDefWrapper::worker.

void TScanDef::update (   )  [private]

Synchronise worker with other contents of object. Definition at line 866 of file TApi.cxx. References bits32, ccode, debug, distSlave, enableDataMode, full, TriggerWrapper::getTrigger(), loopCalLine, nth, nth_rem, ope, scanVariable, scanVariable2, tim, trigSequence, trigSequence2, trigsPerBurst, TTrigger::update(), and ScanDefWrapper::worker. Referenced by TApi::doRawScan(), TApi::doScan(), print(), TApi::probeScan(), TApi::startAsyncScan(), and TScanDef(). Here is the call graph for this function:

---

Field Documentation

int TScanDef::bits32

16 / 32 Definition at line 138 of file TApi.h. Referenced by update().

int TScanDef::ccode

Whether or not to force use of ccode. Definition at line 162 of file TApi.h. Referenced by update().

int TScanDef::debug

Debug mode (don't kill tasks and don't write data). Definition at line 147 of file TApi.h. Referenced by update().

int TScanDef::distSlave

Which slave distribution to use, see SctApi docs. Definition at line 144 of file TApi.h. Referenced by update().

int TScanDef::enableDataMode

Whether or not to put the module into dataTaking mode during configure. Definition at line 159 of file TApi.h. Referenced by update().

int TScanDef::full

Condensed / expanded. Definition at line 135 of file TApi.h. Referenced by update().

int TScanDef::loopCalLine

Loop over the calibration line during the scan. Definition at line 141 of file TApi.h. Referenced by update().

int TScanDef::nth

When not in group mode, how often to capture an event for histogramming. Definition at line 153 of file TApi.h. Referenced by update().

int TScanDef::nth_rem

Which event of the nth past triggers to capture. Definition at line 156 of file TApi.h. Referenced by update().

int TScanDef::ope

Whether or not to request ope histograms. Definition at line 165 of file TApi.h. Referenced by update().

int TScanDef::scanVariable

Which variable to scan over. Definition at line 123 of file TApi.h. Referenced by configure(), and update().

int TScanDef::scanVariable2

Which variable to scan second set over. Definition at line 126 of file TApi.h. Referenced by configure2(), and update().

int TScanDef::tim

Use TIM for triggers. Definition at line 150 of file TApi.h. Referenced by update().

TTrigger TScanDef::trigSequence

Sequence of triggers to send to module set 1. Definition at line 129 of file TApi.h. Referenced by TScanDef(), and update().

TTrigger TScanDef::trigSequence2

Sequence of triggers to send to module set 2. Definition at line 132 of file TApi.h. Referenced by update().

long TScanDef::trigsPerBurst

How many triggers to be sent for each scan point. Definition at line 120 of file TApi.h. Referenced by setTriggersPoint(), and update().

---

The documentation for this class was generated from the following files:

• TApi.h
• TApi.cxx

---
