SctData::TestSummary::SummaryWriter Class Reference

A SummaryWriter is a type of output streamer for a TestResult Concrete SummaryWriters should add themselves to the SummaryManager's map, and impliment the write() method. More...

#include <SummaryWriter.h>

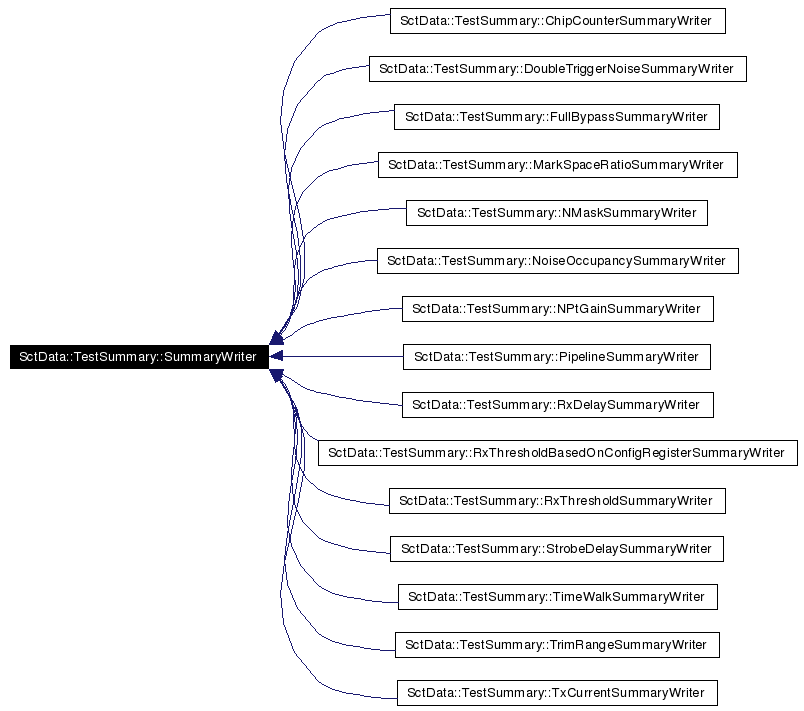

Inheritance diagram for SctData::TestSummary::SummaryWriter:

[legend]

Public Member Functions
virtual void	write (const TestResult &t, std::ostream &out) const =0 throw (Sct::IoError, Sct::LogicError)
	append a test to the appropriate SctDaq-style file
void	write (const DefectList &list, std::ostream &out) const throw (Sct::IoError, Sct::LogicError)
	Writes a ModuleDefectList to the output stream.
virtual	~SummaryWriter ()
	do NOT delete the singleton !
void	writeHeader (const TestResult &, std::ostream &os) const throw ()
	print a header for the current module
Static Public Member Functions
static string	getChipName (const short unsigned ichip) throw ()
	convenience method returns the name of chip, e.g.
Protected Member Functions
	SummaryWriter ()
std::string	print (const DcsData &data, const std::string &parameter) const
	Print a parameter of a DcsData object or "." if parameter not known.

---

Detailed Description

A SummaryWriter is a type of output streamer for a TestResult Concrete SummaryWriters should add themselves to the SummaryManager's map, and impliment the write() method.

Definition at line 28 of file SummaryWriter.h.

---

Constructor & Destructor Documentation

SctData::TestSummary::SummaryWriter::~SummaryWriter (   )  [virtual]

do NOT delete the singleton ! Definition at line 25 of file SummaryWriter.cpp.

---

Member Function Documentation

static string SctData::TestSummary::SummaryWriter::getChipName (  const short unsigned  ichip  )  throw () [static]

convenience method returns the name of chip, e.g. M0 or S3

std::string SctData::TestSummary::SummaryWriter::print (  const DcsData &  data, const std::string &  parameter )  const [protected]

Print a parameter of a DcsData object or "." if parameter not known. Definition at line 155 of file SummaryWriter.cpp. References SctData::DcsData::getParameter(), and SctData::DcsData::hasParameter(). Here is the call graph for this function:

void SctData::TestSummary::SummaryWriter::write (  const DefectList &  list, std::ostream &  out )  const throw (Sct::IoError, Sct::LogicError)

Writes a ModuleDefectList to the output stream. Parameters: list  the moduledefect list to write out  the ostream to write it to. Definition at line 110 of file SummaryWriter.cpp.

virtual void SctData::TestSummary::SummaryWriter::write (  const TestResult &  t, std::ostream &  out )  const throw (Sct::IoError, Sct::LogicError) [pure virtual]

append a test to the appropriate SctDaq-style file Parameters: t  the TestResult to write the summary for. out  the output stream to write to. Implemented in SctData::TestSummary::ChipCounterSummaryWriter, SctData::TestSummary::FullBypassSummaryWriter, SctData::TestSummary::MarkSpaceRatioSummaryWriter, SctData::TestSummary::NMaskSummaryWriter, SctData::TestSummary::PipelineSummaryWriter, SctData::TestSummary::RxThresholdBasedOnConfigRegisterSummaryWriter, SctData::TestSummary::TimeWalkSummaryWriter, and SctData::TestSummary::TxCurrentSummaryWriter. Referenced by SctData::TestSummary::NMaskSummaryWriter::write(), SctData::TestSummary::MarkSpaceRatioSummaryWriter::write(), and SctData::TestSummary::ChipCounterSummaryWriter::write().

void SctData::TestSummary::SummaryWriter::writeHeader (  const TestResult &  , std::ostream &  os )  const throw ()

print a header for the current module Parameters: t  the TestResult for which the header should be written. os  the output stream to print it to.

---

The documentation for this class was generated from the following files:

• SummaryWriter.h
• SummaryWriter.cpp

---
