SctCalibrationController::ConfigUpdater Class Reference

Algorithm interface for updating the module configuration after the result of a test (TestResult) becomes available. More...

#include <ConfigUpdater.h>

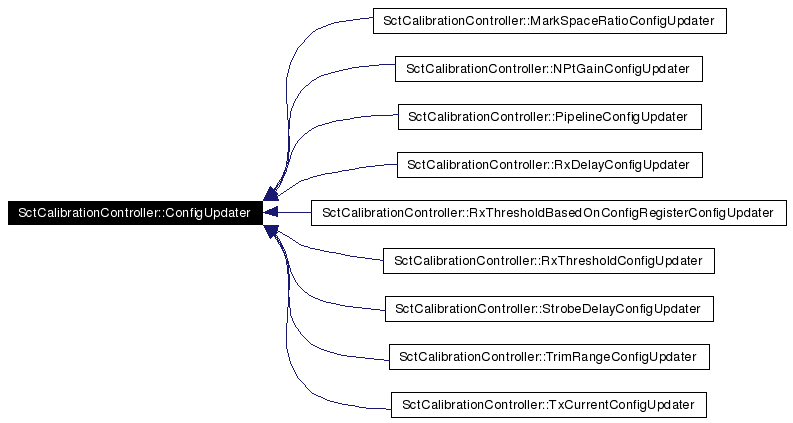

Inheritance diagram for SctCalibrationController::ConfigUpdater:

[legend]

Public Member Functions
virtual void	update (const SctData::TestResult &t, Sct_SctApi::SctApiIPC_ptr api) const =0
	Sub-classes should override this to apply changes to a module configuration as a result of a Test.
Protected Member Functions
	ConfigUpdater ()
virtual	~ConfigUpdater ()
unsigned long	getMID (const SctData::TestResult &t, Sct_SctApi::SctApiIPC_ptr api) const
	Gets the module id for a TestResult Exceptions: SctApiAccessException  if there is a problem with the api.
void	maskChannels (const SctData::TestResult &t, SctData::DefectSeverity s, Sct_SctApi::SctApiIPC_ptr api) const
	Masks all channels with a severity >= s Exceptions: SctApiAccessException  if there is a problem with the api.
Private Member Functions
void	maskChannels (SctData::ModuleConfiguration &config, SctData::ModuleElement element) const
	Masks all the channels in element.

---

Detailed Description

Algorithm interface for updating the module configuration after the result of a test (TestResult) becomes available.

Concrete sub-classes must impliment the update() method. Applies changes via the IPC interface of the SctApi.

Definition at line 23 of file ConfigUpdater.h.

---

Member Function Documentation

unsigned long SctCalibrationController::ConfigUpdater::getMID (  const SctData::TestResult &  t, Sct_SctApi::SctApiIPC_ptr  api )  const [protected]

Gets the module id for a TestResult Exceptions: SctApiAccessException  if there is a problem with the api. Definition at line 17 of file ConfigUpdater.cpp. References SctData::TestResult::getModuleName(). Referenced by SctCalibrationController::TxCurrentConfigUpdater::update(), SctCalibrationController::TrimRangeConfigUpdater::update(), SctCalibrationController::StrobeDelayConfigUpdater::update(), SctCalibrationController::RxThresholdConfigUpdater::update(), SctCalibrationController::RxThresholdBasedOnConfigRegisterConfigUpdater::update(), SctCalibrationController::RxDelayConfigUpdater::update(), SctCalibrationController::NPtGainConfigUpdater::update(), and SctCalibrationController::MarkSpaceRatioConfigUpdater::update(). Here is the call graph for this function:

void SctCalibrationController::ConfigUpdater::maskChannels (  SctData::ModuleConfiguration &  config, SctData::ModuleElement  element )  const [private]

Masks all the channels in element. Definition at line 47 of file ConfigUpdater.cpp. References Sct::nChannelChip.

void SctCalibrationController::ConfigUpdater::maskChannels (  const SctData::TestResult &  t, SctData::DefectSeverity  s, Sct_SctApi::SctApiIPC_ptr  api )  const [protected]

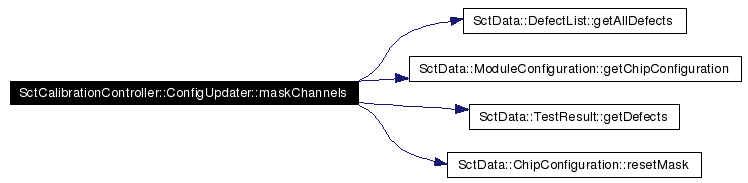

Masks all channels with a severity >= s Exceptions: SctApiAccessException  if there is a problem with the api. Definition at line 23 of file ConfigUpdater.cpp. References SctData::DefectList::getAllDefects(), SctData::ModuleConfiguration::getChipConfiguration(), SctData::TestResult::getDefects(), Sct::nChipModule, and SctData::ChipConfiguration::resetMask(). Referenced by SctCalibrationController::PipelineConfigUpdater::update(), and SctCalibrationController::NPtGainConfigUpdater::update(). Here is the call graph for this function:

virtual void SctCalibrationController::ConfigUpdater::update (  const SctData::TestResult &  t, Sct_SctApi::SctApiIPC_ptr  api )  const [pure virtual]

Sub-classes should override this to apply changes to a module configuration as a result of a Test. Exceptions: SctApiAccessException  if there is a problem with the api Implemented in SctCalibrationController::MarkSpaceRatioConfigUpdater, SctCalibrationController::NPtGainConfigUpdater, SctCalibrationController::PipelineConfigUpdater, SctCalibrationController::RxDelayConfigUpdater, SctCalibrationController::RxThresholdBasedOnConfigRegisterConfigUpdater, SctCalibrationController::RxThresholdConfigUpdater, SctCalibrationController::StrobeDelayConfigUpdater, SctCalibrationController::TrimRangeConfigUpdater, and SctCalibrationController::TxCurrentConfigUpdater.

---

The documentation for this class was generated from the following files:

• ConfigUpdater.h
• ConfigUpdater.cpp

---
