SctAnalysis::AnalysisService Class Reference

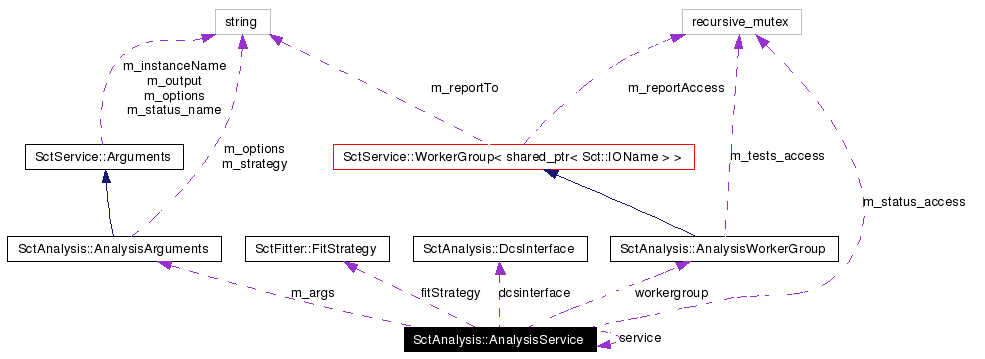

Collaboration diagram for SctAnalysis::AnalysisService:

[legend]


Public Member Functions
virtual	~AnalysisService ()
void	run ()
	RUNS the IPC server and IS callback.
void	setFitStrategy (const string &name) throw (LogicError)
	set the FitStrategy by name
SctFitter::FitStrategy &	getFitStrategy () const throw (LogicError)
	return a FitStrategy which tells how to do the fitting.
virtual void	purge () throw ()
	Calls AnalysisWorkerGroup::purge() method to free stuck memory.
virtual void	analyze (const char *testname) throw ()
	Analyse all data relevant to a test.
virtual void	analyzeModule (const char testname, const char modulename) throw ()
	Analyse all data relevant to a test for a particular module.
virtual char *	status () throw ()
	Output the status of the AnalysisService over IPC.
virtual CORBA::Short	busy ()
	ipc busy method
virtual CORBA::Short	queueLength ()
	ipc queueLength method
DcsInterface &	getDcsInterface ()
	return the DcsInterface, which retrieves the dcs information
const std::string	getOutputISServerName ()
	server to publish to.
void	recover ()
	recover from failure
void	setFifo (bool)
	set true for FIFO, false for FILO - see WorkerGroup for pros and cons!
bool	isFifo ()
	set true for FIFO, false for FILO - see WorkerGroup for pros and cons!
boost::shared_ptr< SctConfiguration::Configuration >	getConfiguration ()
	get local interface to configuration
AnalysisServiceI::StringList *	listAlgorithms ()
	get a list of the AnalysisAlgorithms available for use
Static Public Member Functions
static void	generalCallback (ISCallbackInfo *isc)
	Callback for any data type.
static void	testDataCallback (ISCallbackInfo *isc)
	what to do when a callback is requestedfound, or removed
static void	scanResultCallback (ISCallbackInfo *isc)
	what to do when a new FitScanResult or RawScanResult is found
static AnalysisService &	instance ()
	singleton access method
static AnalysisService &	initialize (AnalysisArguments args)
	Initializes the static instance with a FitStrategy.
static IPCServer &	getServer () throw ()
Protected Attributes
AnalysisWorkerGroup *	workergroup
	AnalysisWorkerGroup does the internal book-keeping, and calls the appropriate AnalysisAlgorithm.
DcsInterface *	dcsinterface
Private Member Functions
void	shutdown ()
	AnalysisService (AnalysisArguments args)
	singleton. Will throw ConfigurationException if something goes wrong.
Private Attributes
boost::recursive_mutex	m_status_access
	protects status from different threads.
SctFitter::FitStrategy *	fitStrategy
	cache telling how to do fitting.
std::auto_ptr< ISInfoReceiver >	infoReceiver
	IS InfoReceiver for IS events.
AnalysisArguments	m_args
boost::shared_ptr< SctConfiguration::Configuration >	s_configuration
	local configuration interface
Static Private Attributes
static AnalysisService *	service

Detailed Description

Definition at line 23 of file AnalysisService.h.

Constructor & Destructor Documentation

SctAnalysis::AnalysisService::AnalysisService ( AnalysisArguments args ) [private]

singleton. Will throw ConfigurationException if something goes wrong.

Definition at line 46 of file AnalysisService.cpp.
References dcsinterface, SctAnalysis::AnalysisArguments::getFitOptions(), getFitStrategy(), SctService::Arguments::getISStatusName(), SctAnalysis::AnalysisArguments::getStrategyName(), infoReceiver, m_args, SctService::WorkerGroup< T >::reportTo(), s_configuration, Sct::Throwable::sendToMrs(), setFitStrategy(), SctFitter::FitStrategy::setOptions(), and workergroup.
Referenced by initialize().

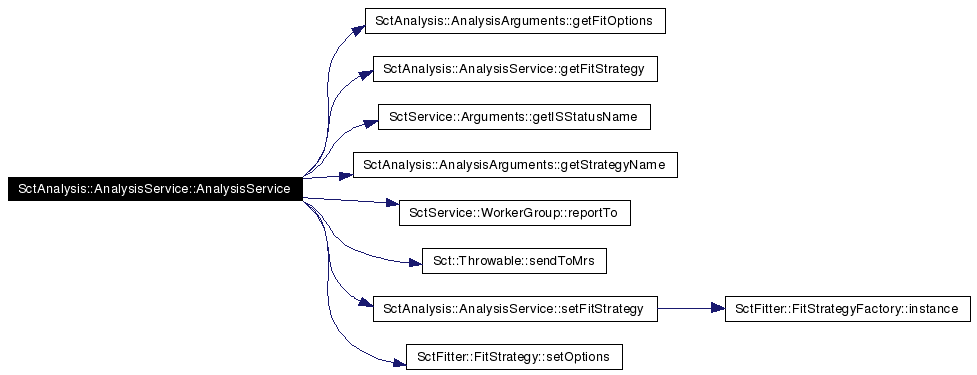

Here is the call graph for this function:

Member Function Documentation

void SctAnalysis::AnalysisService::analyze ( const char * testname ) throw () [virtual]

Analyse all data relevant to a test.

Parameters:

testname the TestData object IO name

Definition at line 213 of file AnalysisService.cpp.

void SctAnalysis::AnalysisService::analyzeModule ( const char * testname,

const char * modulename

) throw () [virtual]

Analyse all data relevant to a test for a particular module.

Parameters:

testname the TestData object IO name

modulename the name of the module to be analyzed

Definition at line 148 of file AnalysisService.cpp.

CORBA::Short SctAnalysis::AnalysisService::busy ( ) [virtual]

ipc busy method

Definition at line 121 of file AnalysisService.cpp.
References SctService::WorkerGroup< T >::busy(), m_status_access, and workergroup.
Here is the call graph for this function:

void SctAnalysis::AnalysisService::generalCallback ( ISCallbackInfo * isc ) [static]

Callback for any data type.

Definition at line 221 of file AnalysisService.cpp.
References scanResultCallback(), and testDataCallback().
Referenced by run().
Here is the call graph for this function:

boost::shared_ptr< SctConfiguration::Configuration > SctAnalysis::AnalysisService::getConfiguration ( )

get local interface to configuration

Returns:
interface to configuration or null pointer if not possible

Definition at line 91 of file AnalysisService.cpp.
References s_configuration.
Referenced by SctAnalysis::NPtGainAlgorithm::NPtGainAlgorithm().

DcsInterface & SctAnalysis::AnalysisService::getDcsInterface ( )

return the DcsInterface, which retrieves the dcs information

Definition at line 298 of file AnalysisService.cpp.
References dcsinterface.

SctFitter::FitStrategy & SctAnalysis::AnalysisService::getFitStrategy ( ) const throw (LogicError)

return a FitStrategy which tells how to do the fitting.

Definition at line 274 of file AnalysisService.cpp.
References fitStrategy.
Referenced by AnalysisService(), and SctAnalysis::NPtGainAlgorithm::doFit().

const std::string SctAnalysis::AnalysisService::getOutputISServerName ( )

server to publish to.
set by command line arguments
Definition at line 87 of file AnalysisService.cpp.
References SctService::Arguments::getOutputISServer(), and m_args.
Referenced by SctAnalysis::AnalysisAlgorithm::finish().
Here is the call graph for this function:

AnalysisService & SctAnalysis::AnalysisService::initialize ( AnalysisArguments args ) [static]

Initializes the static instance with a FitStrategy.
The default FitStrategy is RootFitStrategy. Will throw ConfigurationException if something goes wrong.
Definition at line 293 of file AnalysisService.cpp.
References AnalysisService(), and service.

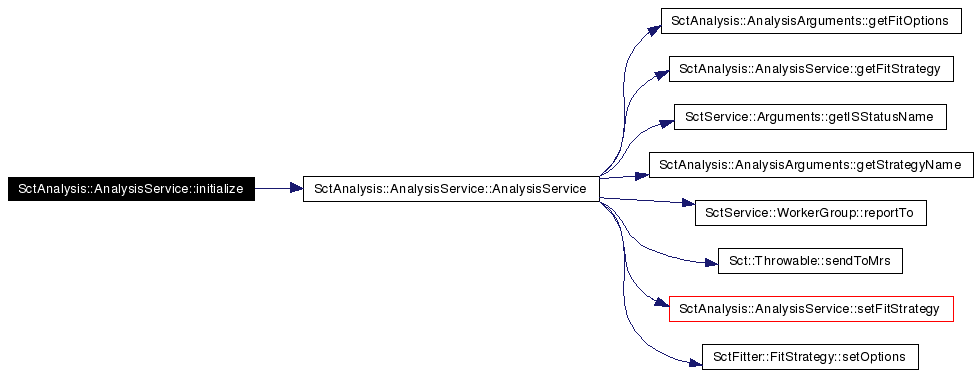

Here is the call graph for this function:

AnalysisService & SctAnalysis::AnalysisService::instance ( ) [static]

singleton access method

Definition at line 280 of file AnalysisService.cpp.
References service.
Referenced by SctAnalysis::NPtGainAlgorithm::doFit(), SctAnalysis::AnalysisAlgorithm::finish(), isFifo(), SctAnalysis::NPtGainAlgorithm::NPtGainAlgorithm(), scanResultCallback(), setFifo(), and testDataCallback().

bool SctAnalysis::AnalysisService::isFifo ( )

set true for FIFO, false for FILO - see WorkerGroup for pros and cons!

Definition at line 285 of file AnalysisService.cpp.
References instance(), SctService::WorkerGroup< T >::isFifo(), and workergroup.
Here is the call graph for this function:

AnalysisServiceI::StringList * SctAnalysis::AnalysisService::listAlgorithms ( )

get a list of the AnalysisAlgorithms available for use

Definition at line 217 of file AnalysisService.cpp.
References SctAnalysis::AnalysisAlgorithmMap::instance(), and SctAnalysis::AnalysisAlgorithmMap::listAlgorithms().
Here is the call graph for this function:

void SctAnalysis::AnalysisService::purge ( ) throw () [virtual]

Calls AnalysisWorkerGroup::purge() method to free stuck memory.

Note:
Don't even think of doing this while analysis is in progress!

Definition at line 202 of file AnalysisService.cpp.
References SctAnalysis::AnalysisWorkerGroup::purge(), Sct::Throwable::sendToMrs(), and workergroup.
Here is the call graph for this function:

CORBA::Short SctAnalysis::AnalysisService::queueLength ( ) [virtual]

ipc queueLength method

Definition at line 126 of file AnalysisService.cpp.
References SctService::WorkerGroup< T >::busy(), m_status_access, and workergroup.
Here is the call graph for this function:

void SctAnalysis::AnalysisService::recover ( )

recover from failure

Definition at line 306 of file AnalysisService.cpp.
Referenced by run().

void SctAnalysis::AnalysisService::run ( )

RUNS the IPC server and IS callback.
Does not return.
Definition at line 95 of file AnalysisService.cpp.
References generalCallback(), SctService::Arguments::getInputISServers(), SctService::Arguments::getNWorkers(), SctService::WorkerGroup< T >::go(), infoReceiver, m_args, recover(), SctService::Arguments::recoveryMode(), and workergroup.

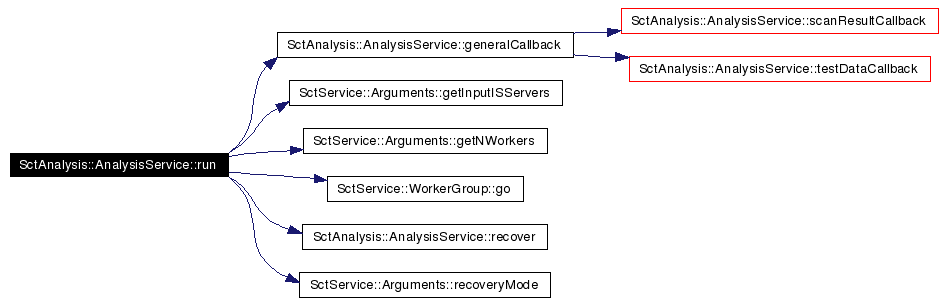

Here is the call graph for this function:

void SctAnalysis::AnalysisService::scanResultCallback ( ISCallbackInfo * isc ) [static]

what to do when a new FitScanResult or RawScanResult is found

Definition at line 235 of file AnalysisService.cpp.
References instance(), SctService::WorkerGroup< T >::push(), and workergroup.
Referenced by generalCallback().
Here is the call graph for this function:

void SctAnalysis::AnalysisService::setFifo ( bool )

set true for FIFO, false for FILO - see WorkerGroup for pros and cons!

Definition at line 289 of file AnalysisService.cpp.
References instance(), SctService::WorkerGroup< T >::setFifo(), and workergroup.
Here is the call graph for this function:

void SctAnalysis::AnalysisService::setFitStrategy ( const string & name ) throw (LogicError)

set the FitStrategy by name

Definition at line 268 of file AnalysisService.cpp.
References SctFitter::FitStrategyFactory::instance().
Referenced by AnalysisService().
Here is the call graph for this function:

char * SctAnalysis::AnalysisService::status ( ) throw () [virtual]

Output the status of the AnalysisService over IPC.

Definition at line 131 of file AnalysisService.cpp.
References dcsinterface, SctAnalysis::AnalysisAlgorithmMap::getAllStatus(), SctAnalysis::AnalysisAlgorithmMap::instance(), m_status_access, SctAnalysis::DcsInterface::printStatus(), SctAnalysis::AnalysisWorkerGroup::printStatus(), and workergroup.
Here is the call graph for this function:

void SctAnalysis::AnalysisService::testDataCallback ( ISCallbackInfo * isc ) [static]

what to do when a callback is requestedfound, or removed

Definition at line 245 of file AnalysisService.cpp.
References SctAnalysis::AnalysisWorkerGroup::addTest(), instance(), SctAnalysis::AnalysisWorkerGroup::removeTestsUpTo(), and workergroup.
Referenced by generalCallback().

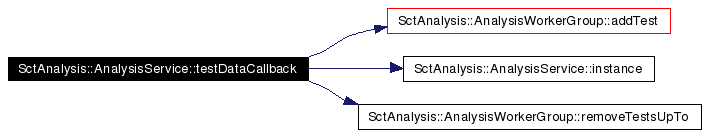

Here is the call graph for this function:

Field Documentation

SctFitter::FitStrategy* SctAnalysis::AnalysisService::fitStrategy [private]

cache telling how to do fitting.

Definition at line 135 of file AnalysisService.h.
Referenced by getFitStrategy().

std::auto_ptr<ISInfoReceiver> SctAnalysis::AnalysisService::infoReceiver [private]

IS InfoReceiver for IS events.

Definition at line 136 of file AnalysisService.h.
Referenced by AnalysisService(), and run().

boost::recursive_mutex SctAnalysis::AnalysisService::m_status_access [private]

protects status from different threads.

Definition at line 134 of file AnalysisService.h.
Referenced by busy(), queueLength(), and status().

boost::shared_ptr<SctConfiguration::Configuration> SctAnalysis::AnalysisService::s_configuration [private]

local configuration interface

Definition at line 140 of file AnalysisService.h.
Referenced by AnalysisService(), and getConfiguration().

AnalysisWorkerGroup* SctAnalysis::AnalysisService::workergroup [protected]

AnalysisWorkerGroup does the internal book-keeping, and calls the appropriate AnalysisAlgorithm.

Definition at line 131 of file AnalysisService.h.
Referenced by AnalysisService(), busy(), isFifo(), purge(), queueLength(), run(), scanResultCallback(), setFifo(), shutdown(), status(), and testDataCallback().

The documentation for this class was generated from the following files:

Generated on Mon Feb 6 14:03:44 2006 for SCT DAQ/DCS Software - C++ by

1.4.6
