Sct::IOManager Class Reference

An abstract class that represents an I/O backend. More...

#include <IOManager.h>

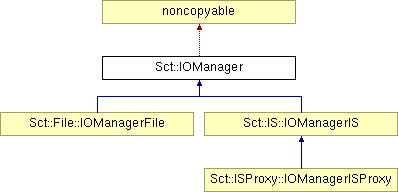

Inheritance diagram for Sct::IOManager:

Methods for Streamable implementors
Note: These methods are named readImpl and writeImpl to avoid a gcc 2.9x bug.
virtual void	writeImpl (OStream &out, const Streamable &ob, bool writeClassName) const
	Writes a Streamable to an output stream.
virtual shared_ptr< Streamable >	readImpl (IStream &in) const
	Read a Streamable from an input stream.
virtual shared_ptr< Streamable >	readImpl (IStream &in, const string &className) const
	Read a Streamable from an input stream.
virtual void	readImpl (IStream &in, Streamable &ob, bool readClassName) const
	Read a Streamable from an input stream.
virtual void	writeClassName (OStream &out, const string &className) const
	Writes a class name to an OStream.
virtual string	readClassName (IStream &in) const
	Read a class name from an IStream.
bool	addToMap (const std::string &className, std::auto_ptr< Streamer > s) throw ()
	Add a Streamer to the map.
Methods for sub-class authors
Note: These methods are named readImpl and writeImpl to avoid a gcc 2.9x bug.
typedef map< string, shared_ptr< Streamer > >	StreamerMap
virtual Streamer &	getStreamer (const string &className) const
	A sub-class can override this if it wants to influence the Streamer that will be used for a particular class.
StreamerMap &	getMap () throw ()
Public Member Functions
virtual	~IOManager ()
Methods for users
{
virtual void	write (const Serializable &ob, const IOParams *params=0) const=0
	Write an object.
virtual shared_ptr< Serializable >	read (const string &name, const IOParams *params=0) const=0
	Read an object.

---

Detailed Description

An abstract class that represents an I/O backend.

Possibilities are raw file, IS, some other form of persistency. Perhaps even a viewer.

Some methods here deal with a name. This is a backend specific identifier - e.g. a filename or an IS name. In order to retrieve a name, a backend specific method or an appropriate IOName sub-class should be used.

shared_ptr is returned sometimes, rather than auto_ptr to allow singletons to be returned which might be indicated by some numeric ID for instance.

Author:

Matthew Palmer

Date:

15 July 2003

Definition at line 43 of file IOManager.h.

---

Member Typedef Documentation

typedef map<string, shared_ptr<Streamer> > Sct::IOManager::StreamerMap [protected]

Definition at line 153 of file IOManager.h.

---

Constructor & Destructor Documentation

virtual Sct::IOManager::~IOManager (    )  [inline, virtual]

Definition at line 45 of file IOManager.h.

---

Member Function Documentation

bool Sct::IOManager::addToMap (  const std::string &    className, std::auto_ptr< Streamer >    s )  throw () [static]

Add a Streamer to the map. The Streamer will be used to do IO on classes named className. Parameters: className  The name of the class that s can do IO on. s  An Streamer capable of doing IO on classes named className. Returns: True if successful Definition at line 16 of file IOManager.cpp. References Sct::StreamerMap.

StreamerMap & Sct::IOManager::getMap (    )  throw () [static, protected]

Definition at line 24 of file IOManager.cpp. References Sct::StreamerMap. Referenced by getStreamer().

Streamer & Sct::IOManager::getStreamer (  const string &    className )  const [protected, virtual]

A sub-class can override this if it wants to influence the Streamer that will be used for a particular class. Returns: an appropriate Streamer. Exceptions: InvalidArgumentError  if an appropriate Streamer can't be found. Definition at line 29 of file IOManager.cpp. References getMap(), and Sct::StreamerMap. Referenced by readImpl(), and writeImpl().

virtual shared_ptr<Serializable> Sct::IOManager::read (  const string &    name, const IOParams *    params = 0 )  const [pure virtual]

Read an object. Will determine the class by first reading a string assumed to contain the className. Parameters: name  The name of the object to read params  A backend specific sub-class of IOParams. Exceptions: IoException  if there is a problem with the I/O Implemented in Sct::File::IOManagerFile, and Sct::IS::IOManagerIS.

string Sct::IOManager::readClassName (  IStream &    in )  const [virtual]

Read a class name from an IStream. Should only be overriden if absolutely necessary. Sub-classes should use this method if ever they need to write a class name and avoid proprietry solutions as they may break Java compatability. Parameters: in  the IStream to be written to Returns: the className Exceptions: IoException  if something bad happens in OStream or there is no className to be read Definition at line 82 of file IOManager.cpp. Referenced by readImpl().

void Sct::IOManager::readImpl (  IStream &    in, Streamable &    ob, bool    readClassName )  const [virtual]

Read a Streamable from an input stream. Parameters: in  the IStream to read from. ob  the object to read into. readClassName  if true, read a string that should match ob.getClassName() first Exceptions: IoException  if something bad happens in the back-end. Definition at line 63 of file IOManager.cpp. References Sct::Streamable::getClassName(), getStreamer(), Sct::Streamer::read(), and readClassName().

shared_ptr< Streamable > Sct::IOManager::readImpl (  IStream &    in, const string &    className )  const [virtual]

Read a Streamable from an input stream. Corresponds to write with writeClassName=false. Parameters: in  the IStream to read from className  Returns: the newly created Streamable Exceptions: IoException  if something bad happens in the back-end. Definition at line 58 of file IOManager.cpp. References getStreamer(), and Sct::Streamer::read().

shared_ptr< Streamable > Sct::IOManager::readImpl (  IStream &    in )  const [virtual]

Read a Streamable from an input stream. Reads the class name from the stream first. Corresponds to write with writeClassName=true. Parameters: in  the IStream to read from Returns: the newly created Streamable Exceptions: IoException  if something bad happens in the back-end. Definition at line 52 of file IOManager.cpp. References getStreamer(), Sct::Streamer::read(), and readClassName(). Referenced by Sct::IS::detail::ISAdapter::refreshGuts().

virtual void Sct::IOManager::write (  const Serializable &    ob, const IOParams *    params = 0 )  const [pure virtual]

Write an object. Parameters: ob  The Serializable to write params  A backend specific sub-class of IOParams. Exceptions: IoException  if there is a problem with the I/O Implemented in Sct::File::IOManagerFile, Sct::IS::IOManagerIS, and Sct::ISProxy::IOManagerISProxy.

void Sct::IOManager::writeClassName (  OStream &    out, const string &    className )  const [virtual]

Writes a class name to an OStream. Should only be overriden if absolutely necessary. Sub-classes should use this method if ever they need to write a class name and avoid proprietry solutions as they may break Java compatability. Parameters: out  the OStream to be written to className  the class name to write Exceptions: IoException  if something bad happens in OStream. Definition at line 78 of file IOManager.cpp. Referenced by writeImpl().

void Sct::IOManager::writeImpl (  OStream &    out, const Streamable &    ob, bool    writeClassName )  const [virtual]

Writes a Streamable to an output stream. Parameters: ob  the Streamable to write. out  the OStream to write to. writeClassName  if true, write the class name, otherwise don't. Exceptions: IoException  if something bad happens in the back-end. Reimplemented in Sct::ISProxy::IOManagerISProxy. Definition at line 46 of file IOManager.cpp. References Sct::Streamable::getClassName(), getStreamer(), Sct::Streamer::write(), and writeClassName(). Referenced by Sct::IS::detail::ISAdapter::publishGuts().

---

The documentation for this class was generated from the following files:

• IOManager.h
• IOManager.cpp

---
