Sct::Streamable Class Reference

Classes should implement this interface if they want to be serialized by the IO system. More...

#include <Streamable.h>

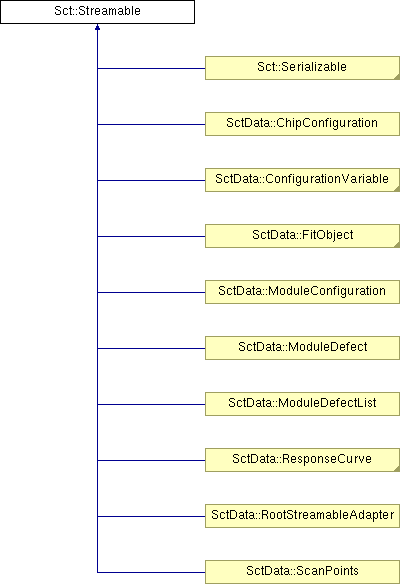

Inheritance diagram for Sct::Streamable:

Public Member Functions
virtual string	getClassName () const=0 throw ()
	Get the class name for this object.
virtual	~Streamable () throw ()
	Virtual destructor to make it safe to delete through a pointer to a Streamable or any sub-class.

---

Detailed Description

Classes should implement this interface if they want to be serialized by the IO system.

For ease of implementation, all objects should be default constructible

Author:

Matthew Palmer

Definition at line 15 of file Streamable.h.

---

Constructor & Destructor Documentation

virtual Sct::Streamable::~Streamable (    )  throw () [inline, virtual]

Virtual destructor to make it safe to delete through a pointer to a Streamable or any sub-class. Definition at line 28 of file Streamable.h.

---

Member Function Documentation

virtual string Sct::Streamable::getClassName (    )  const throw () [pure virtual]

Get the class name for this object. This is used to identify the precise type. Todo: We could use typeid instead here, but that would probably mean removing the namespace stuff. Returns: the class name Implemented in Sct::ISProxy::ISProxy, SctData::SerializableWrapper, SctData::ChipConfiguration, SctData::ConfigurationVariable, SctData::ErfcFitObject, SctData::ErfFitObject, SctData::FitScanResult, SctData::FullBypassTestResult, SctData::GausFitObject, SctData::ModuleConfiguration, SctData::ModuleDefect, SctData::ModuleDefectList, SctData::NMaskTestResult, SctData::NoiseOccupancyTestResult, SctData::NPtGainTestResult, SctData::PipelineTestResult, SctData::RawScanResult, SctData::ResponseCurve, SctData::RootStreamableAdapter, SctData::ScanHeader, SctData::ScanPoints, SctData::StrobeDelayTestResult, SctData::TimeWalkTestResult, SctData::TopHatFitObject, and SctData::TrimRangeTestResult. Referenced by Sct::IOManager::readImpl(), SctCalibrationController::ConfigUpdaterManager::update(), SctData::IO::FitScanResultStreamer::write(), and Sct::IOManager::writeImpl().

---

The documentation for this class was generated from the following file:

• Streamable.h

---
