SctData::TestSummary::SummaryWriter Class Reference

A SummaryWriter is a type of output streamer for a TestResult Concrete SummaryWriters should add themselves to the SummaryManager's map, and impliment the write() method. More...

#include <SummaryWriter.h>

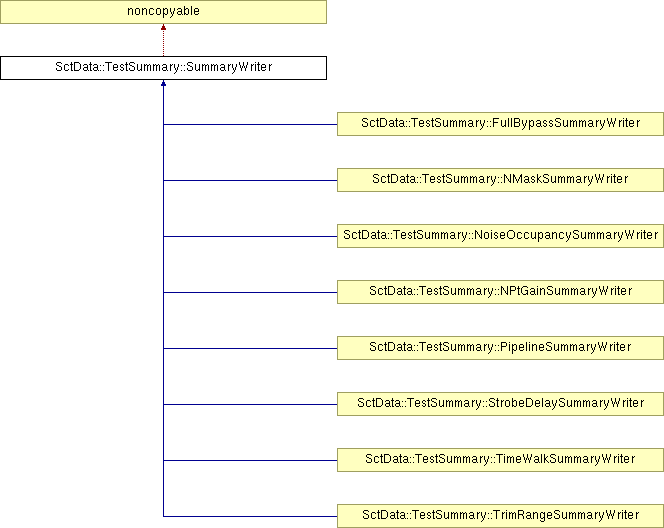

Inheritance diagram for SctData::TestSummary::SummaryWriter:

Public Member Functions
virtual void	write (const TestResult &t, std::ostream &out) const=0 throw (Sct::IoError, Sct::LogicError)
	append a test to the appropriate SctDaq-style file
void	write (const ModuleDefectList &list, std::ostream &out) const throw (Sct::IoError, Sct::LogicError)
	Writes a ModuleDefectList to the output stream.
virtual	~SummaryWriter ()
	do NOT delete the singleton !
void	writeHeader (const TestResult &, std::ostream &os) const throw ()
	print a header for the current module
Protected Member Functions
	SummaryWriter ()
Static Protected Member Functions
string	getChipName (const short unsigned ichip) throw ()
	convenience method returns the name of chip, e.g.

---

Detailed Description

A SummaryWriter is a type of output streamer for a TestResult Concrete SummaryWriters should add themselves to the SummaryManager's map, and impliment the write() method.

Definition at line 27 of file SummaryWriter.h.

---

Constructor & Destructor Documentation

SctData::TestSummary::SummaryWriter::~SummaryWriter (    )  [virtual]

do NOT delete the singleton ! Definition at line 21 of file SummaryWriter.cpp.

SctData::TestSummary::SummaryWriter::SummaryWriter (    )  [protected]

Definition at line 19 of file SummaryWriter.cpp.

---

Member Function Documentation

string SctData::TestSummary::SummaryWriter::getChipName (  const short unsigned    ichip )  throw () [static, protected]

convenience method returns the name of chip, e.g. M0 or S3

void SctData::TestSummary::SummaryWriter::write (  const ModuleDefectList &    list, std::ostream &    out )  const throw (Sct::IoError, Sct::LogicError)

Writes a ModuleDefectList to the output stream. Parameters: list  the moduledefect list to write out  the ostream to write it to. Definition at line 69 of file SummaryWriter.cpp. References SctData::ModuleElement::getFirst(), SctData::ModuleElement::getLast(), SctData::ModuleDefect::getModuleElement(), SctData::ModuleDefect::getName(), SctData::ModuleElement::getNChannels(), SctData::Stats< T >::modifyAt(), SctData::Stats< T >::n(), and Sct::nChannelModule.

virtual void SctData::TestSummary::SummaryWriter::write (  const TestResult &    t, std::ostream &    out )  const throw (Sct::IoError, Sct::LogicError) [pure virtual]

append a test to the appropriate SctDaq-style file Parameters: t  the TestResult to write the summary for. out  the output stream to write to. Implemented in SctData::TestSummary::FullBypassSummaryWriter, SctData::TestSummary::NMaskSummaryWriter, SctData::TestSummary::NoiseOccupancySummaryWriter, SctData::TestSummary::NPtGainSummaryWriter, SctData::TestSummary::PipelineSummaryWriter, SctData::TestSummary::StrobeDelaySummaryWriter, SctData::TestSummary::TimeWalkSummaryWriter, and SctData::TestSummary::TrimRangeSummaryWriter.

void SctData::TestSummary::SummaryWriter::writeHeader (  const TestResult &   , std::ostream &    os )  const throw ()

print a header for the current module Parameters: t  the TestResult for which the header should be written. os  the output stream to print it to. Definition at line 29 of file SummaryWriter.cpp. References SctData::TestSummary::getHostName().

---

The documentation for this class was generated from the following files:

• SummaryWriter.h
• SummaryWriter.cpp

---
