SctData::DefectList Class Reference

This class represents all the defects in a module. More...

#include <DefectList.h>

Inheritance diagram for SctData::DefectList:

[legend]Collaboration diagram for SctData::DefectList:

[legend]

Public Types
typedef list< Defect >	DefectCollection
Public Member Functions
	DefectList ()
	Create a new empty ModuleDefects object.
void	addDefect (Defect defect)
	Add a defect.
const DefectCollection &	getAllDefects () const
	Get all defects in the ModuleDefectList.
virtual string	getClassName () const throw ()
	Get the class name for this object.
DefectList &	operator+= (const DefectList &)
	Add defects from another list.
Methods enquiring as to defects on ANY PART of a module element
auto_ptr< DefectList >	getDefectsAffectingElement (ModuleElement element) const
	Get all the defects affecting a given element.
DefectSeverity	defectSeverityAffectingElement (ModuleElement element) const
	Get defect severity.
bool	containsDefect (Defect defect) const
	Finds if there is a an identical defect to defect in this list.
Methods enquiring as to defects which affect the WHOLE of an element.
auto_ptr< DefectList >	getDefectsEncompassingElement (ModuleElement element) const
	Get all defects who contain the element.
DefectSeverity	defectSeverityEncompassingElement (ModuleElement element) const
	Check for severe defects.
Private Attributes
DefectCollection	defectList
	All defects.

---

Detailed Description

This class represents all the defects in a module.

Author:

Matthew Palmer

Definition at line 24 of file DefectList.h.

---

Constructor & Destructor Documentation

SctData::DefectList::DefectList (   )

Create a new empty ModuleDefects object. Note: Nothrow Definition at line 7 of file DefectList.cpp. Referenced by getDefectsAffectingElement(), and getDefectsEncompassingElement().

---

Member Function Documentation

void SctData::DefectList::addDefect (  Defect  defect  )

Add a defect. Neighbouring defects of the same type are merged. Parameters: defect  The Defect to add Note: Nothrow Definition at line 13 of file DefectList.cpp. References SctData::ModuleElement::adjacentTo(), SctData::ModuleElement::contains(), defectList, SctData::ModuleElement::getFirst(), SctData::ModuleElement::getLast(), SctData::Defect::getModuleElement(), SctData::Defect::getPrototype(), and SctData::ModuleElement::overlaps(). Referenced by SctAnalysis::StrobeDelayAlgorithm::analyze(), SctAnalysis::PipelineAlgorithm::analyze(), SctFitter::StrobeDelayFitAlgorithm::checkForDefects(), SctAnalysis::NPtGainAlgorithm::mergeDefects(), operator+=(), and SctData::IO::DefectListStreamer_v1::read().

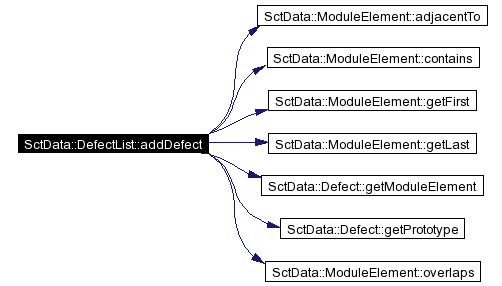

Here is the call graph for this function:

bool SctData::DefectList::containsDefect (  Defect  defect  )  const

Finds if there is a an identical defect to defect in this list. Note: Nothrow Definition at line 104 of file DefectList.cpp. References defectList. Referenced by operator+=().

DefectSeverity SctData::DefectList::defectSeverityAffectingElement (  ModuleElement  element  )  const

Get defect severity. Returns: the Severity using NONE if there is no defect Note: Nothrow Definition at line 61 of file DefectList.cpp. References defectList, SctData::DefectSeverity, and SctData::NONE. Referenced by SctAnalysis::StrobeDelayAlgorithm::analyze(), and SctAnalysis::NPtGainAlgorithm::setupGraph().

DefectSeverity SctData::DefectList::defectSeverityEncompassingElement (  ModuleElement  element  )  const

Check for severe defects. Note: Nothrow Definition at line 83 of file DefectList.cpp. References defectList, SctData::DefectSeverity, and SctData::NONE. Referenced by SctAnalysis::TrimRangeAlgorithm::analyze(), and SctData::TestSummary::NPtGainSummaryWriter::write().

const DefectList::DefectCollection & SctData::DefectList::getAllDefects (   )  const

Get all defects in the ModuleDefectList. Returns: A reference to a list of all defects. Note: Nothrow Definition at line 46 of file DefectList.cpp. References defectList. Referenced by SctCalibrationController::ConfigUpdater::maskChannels(), SctDataDisplay::Displayer::printDefectList(), and SctData::IO::DefectListStreamer_v1::write().

string SctData::DefectList::getClassName (   )  const throw () [virtual]

Get the class name for this object. This is used to identify the precise type. Returns: the class name Note: Nothrow Implements Sct::Streamable. Definition at line 9 of file DefectList.cpp.

auto_ptr< DefectList > SctData::DefectList::getDefectsAffectingElement (  ModuleElement  element  )  const

Get all the defects affecting a given element. Parameters: element  The ModuleElement Returns: a DefectList Note: Nothrow Definition at line 50 of file DefectList.cpp. References defectList, and DefectList().

Here is the call graph for this function:

auto_ptr< DefectList > SctData::DefectList::getDefectsEncompassingElement (  ModuleElement  element  )  const

Get all defects who contain the element. Note: Nothrow Definition at line 72 of file DefectList.cpp. References defectList, and DefectList().

Here is the call graph for this function:

DefectList & SctData::DefectList::operator+= (  const DefectList &   )

Add defects from another list. Filters out identical defects. Note: Nothrow Definition at line 94 of file DefectList.cpp. References addDefect(), containsDefect(), and defectList.

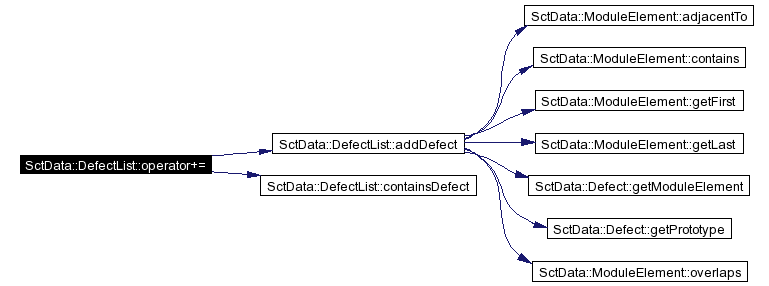

Here is the call graph for this function:

---

Field Documentation

DefectCollection SctData::DefectList::defectList [private]

All defects. Definition at line 97 of file DefectList.h. Referenced by addDefect(), containsDefect(), defectSeverityAffectingElement(), defectSeverityEncompassingElement(), getAllDefects(), getDefectsAffectingElement(), getDefectsEncompassingElement(), and operator+=().

---

The documentation for this class was generated from the following files:

• DefectList.h
• DefectList.cpp

---
