SctData::FitScanResult Class Reference

Class for the various fitted ROD scan result objects. More...

#include <FitScanResult.h>

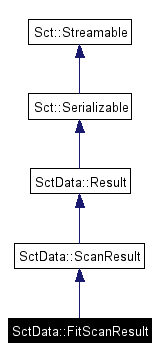

Inheritance diagram for SctData::FitScanResult:

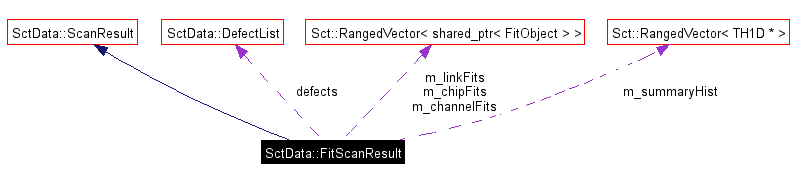

[legend]Collaboration diagram for SctData::FitScanResult:

[legend]


Public Member Functions
	FitScanResult (const ResultHeader &header, const ModuleConfiguration &config, const ScanPoints &points) throw ()
	Create a FitScanResult from the objects that are needed to initialize the base class. Is this really necessary?
	FitScanResult (const RawScanResult &raw) throw ()
	Create a FitScanResult object from a given RawScanResult Object.
virtual	~FitScanResult () throw ()
	Destroy the FitScanResult object and all of its FitObject members.
FitObject &	getChannelFit (const unsigned ilink, const unsigned ichip) const throw (LogicError)
	get channel fit by : link 0 or 1, channel 0 -> 767
unsigned	getNHist () const throw ()
	get number of summary histograms
const TH1D &	getHist (unsigned i) const throw (LogicError)
	get an existing summary histogram

virtual string	getClassName () const throw ()
	Serializable overrides.
virtual string	getUniqueID () const throw ()
	Serializable overrides.

const DefectList &	getDefects () const throw ()
	Get the DefectList associated with this FitScanResult.
DefectList &	getDefects () throw ()
	Get the DefectList associated with this FitScanResult.

FitObject &	getLinkFit (const unsigned ilink) const throw (LogicError)
	Functions to retrieve the FitObjects, by link, chip or channel get link fit by : link 0 or 1.
FitObject &	getChipFit (const unsigned ilink, const unsigned ichip) const throw (LogicError)
	get chip fit by : link 0 or 1, chip 0 -> 5
FitObject &	getChipFit (const unsigned ichip) const throw (LogicError)
	get chip fit by : chip 0 -> 11, with 6->11 on link 1
FitObject &	getChannelFit (const unsigned ichannel) const throw (LogicError)
	get channel fit by : channel 0 -> 1535 (with 768->1535 on link 1)

unsigned	getNLinkFits () const throw ()
	Largely included for bug-checking, the following functions should return 2 if the object has been correctly initialized.
unsigned	getNChipFits () const throw ()
	Largely included for bug-checking, the following functions should return 12 if the object has been correctly initialized.
unsigned	getNChannelFits () const throw ()
	Largely included for bug-checking, the following functions should return 1536 if the object has been correctly initialized.
void	setNChannelFits (unsigned int n=Sct::nChannelModule) throw ()
	Set the number of channel fits that are stored.
void	setNChipFits (unsigned int n=Sct::nChipModule) throw ()
	Set the number of chip fits that are stored.
void	setNLinkFits (unsigned int n=Sct::nLinkModule) throw ()
	Set the number of channel fits that are stored.
void	initializeChannelFits (const FitObject &prototype) throw ()
	Initializes this so that it can store channel fits.
void	initializeChipFits (const FitObject &prototype) throw ()
	set the number of chip fits
void	initializeLinkFits (const FitObject &prototype) throw ()
	set the number of link fits
void	setChannelFit (unsigned int channel, shared_ptr< FitObject > fit) throw (LogicError)
	Set a channel fit.
void	setChipFit (unsigned int chip, shared_ptr< FitObject > fit) throw (LogicError)
	Set a chip fit.
void	setLinkFit (unsigned int link, shared_ptr< FitObject > fit) throw (LogicError)
	Set a link fit.
Static Public Member Functions
string	getUniqueID (const ResultHeader &header) throw ()
	Returns the uniqueID a FitScanResult would have if it included the given ScanHeader.
Protected Attributes
RangedVector< shared_ptr< FitObject > >	m_channelFits
	fits for each channel
RangedVector< shared_ptr< FitObject > >	m_chipFits
	fits for each chip
RangedVector< shared_ptr< FitObject > >	m_linkFits
	fits for each link
RangedVector< TH1D * >	m_summaryHist
	summary histograms
DefectList	defects
	Contains all the defects discovered in doing the fits.
Private Member Functions
	FitScanResult () throw ()
	Default constructor - only for IO purposes.
Static Private Member Functions
template<class T> void	resizeAndFill (std::vector< shared_ptr< T > > &v, unsigned newSize, const T &prototype) throw ()
	utility function;
Friends
class	FitScanResultIOHelper
	The IOHelper class.

Detailed Description

Class for the various fitted ROD scan result objects.

Author:: Alan Barr

Date:: 6 December 2002

Definition at line 33 of file FitScanResult.h.

Constructor & Destructor Documentation

SctData::FitScanResult::FitScanResult ( const ResultHeader & header,

const ModuleConfiguration & config,

const ScanPoints & points

) throw ()

Create a FitScanResult from the objects that are needed to initialize the base class. Is this really necessary?

Definition at line 19 of file FitScanResult.cpp.

SctData::FitScanResult::FitScanResult ( const RawScanResult & raw ) throw ()

Create a FitScanResult object from a given RawScanResult Object.

Definition at line 23 of file FitScanResult.cpp.

SctData::FitScanResult::~FitScanResult ( ) throw () [virtual]

Destroy the FitScanResult object and all of its FitObject members.

Definition at line 26 of file FitScanResult.cpp.

SctData::FitScanResult::FitScanResult ( ) throw () [private]

Default constructor - only for IO purposes.

Definition at line 16 of file FitScanResult.cpp.

Member Function Documentation

FitObject & SctData::FitScanResult::getChannelFit ( const unsigned ilink,

const unsigned ichip

) const throw (LogicError)

get channel fit by : link 0 or 1, channel 0 -> 767

Definition at line 67 of file FitScanResult.cpp.

FitObject & SctData::FitScanResult::getChannelFit ( const unsigned ichannel ) const throw (LogicError)

get channel fit by : channel 0 -> 1535 (with 768->1535 on link 1)

Definition at line 71 of file FitScanResult.cpp.
Referenced by SctDataDisplay::FitDisplayer::displayChannels(), and SctData::IO::FitScanResultStreamer_v1::write().

FitObject & SctData::FitScanResult::getChipFit ( const unsigned ichip ) const throw (LogicError)

get chip fit by : chip 0 -> 11, with 6->11 on link 1

Definition at line 63 of file FitScanResult.cpp.

FitObject & SctData::FitScanResult::getChipFit ( const unsigned ilink,

const unsigned ichip

) const throw (LogicError)

get chip fit by : link 0 or 1, chip 0 -> 5

Definition at line 59 of file FitScanResult.cpp.
Referenced by SctAnalysis::StrobeDelayAlgorithm::analyze(), SctDataDisplay::FitDisplayer::displayChips(), and SctData::IO::FitScanResultStreamer_v1::write().

string SctData::FitScanResult::getClassName ( ) const throw () [virtual]

Serializable overrides.

Implements Sct::Streamable.
Definition at line 32 of file FitScanResult.cpp.

DefectList& SctData::FitScanResult::getDefects ( ) throw () [inline]

Get the DefectList associated with this FitScanResult.

Definition at line 58 of file FitScanResult.h.
References defects.

const DefectList& SctData::FitScanResult::getDefects ( ) const throw () [inline]

Get the DefectList associated with this FitScanResult.

Definition at line 55 of file FitScanResult.h.
References defects.
Referenced by SctDataDisplay::FitDisplayer::display(), SctDataDisplay::FitDisplayer::displayChips(), SctData::IO::FitScanResultStreamer_v1::read(), and SctData::IO::FitScanResultStreamer_v1::write().

const TH1D & SctData::FitScanResult::getHist ( unsigned i ) const throw (LogicError)

get an existing summary histogram

Definition at line 112 of file FitScanResult.cpp.

FitObject & SctData::FitScanResult::getLinkFit ( const unsigned ilink ) const throw (LogicError)

Functions to retrieve the FitObjects, by link, chip or channel get link fit by : link 0 or 1.

Definition at line 55 of file FitScanResult.cpp.
Referenced by SctData::IO::FitScanResultStreamer_v1::write().

unsigned SctData::FitScanResult::getNChannelFits ( ) const throw ()

Largely included for bug-checking, the following functions should return 1536 if the object has been correctly initialized.

Definition at line 95 of file FitScanResult.cpp.
Referenced by SctData::IO::FitScanResultStreamer_v1::write().

unsigned SctData::FitScanResult::getNChipFits ( ) const throw ()

Largely included for bug-checking, the following functions should return 12 if the object has been correctly initialized.

Definition at line 91 of file FitScanResult.cpp.
Referenced by SctData::IO::FitScanResultStreamer_v1::write().

unsigned SctData::FitScanResult::getNHist ( ) const throw () [inline]

get number of summary histograms

Definition at line 95 of file FitScanResult.h.
References m_summaryHist.

unsigned SctData::FitScanResult::getNLinkFits ( ) const throw ()

Largely included for bug-checking, the following functions should return 2 if the object has been correctly initialized.

Definition at line 87 of file FitScanResult.cpp.
Referenced by SctData::IO::FitScanResultStreamer_v1::write().

string SctData::FitScanResult::getUniqueID ( const ResultHeader & header ) throw () [static]

Returns the uniqueID a FitScanResult would have if it included the given ScanHeader.

Definition at line 40 of file FitScanResult.cpp.

string SctData::FitScanResult::getUniqueID ( ) const throw () [virtual]

Serializable overrides.

Implements Sct::Serializable.
Definition at line 36 of file FitScanResult.cpp.

void SctData::FitScanResult::initializeChannelFits ( const FitObject & prototype ) throw ()

Initializes this so that it can store channel fits.

Parameters:

prototype A prototypical FitObject that will be copied.

Definition at line 44 of file FitScanResult.cpp.

void SctData::FitScanResult::initializeChipFits ( const FitObject & prototype ) throw ()

set the number of chip fits

Definition at line 48 of file FitScanResult.cpp.

void SctData::FitScanResult::initializeLinkFits ( const FitObject & prototype ) throw ()

set the number of link fits

Definition at line 51 of file FitScanResult.cpp.

template<class T>

void SctData::FitScanResult::resizeAndFill ( std::vector< shared_ptr< T > > & v,

unsigned newSize,

const T & prototype

) throw () [static, private]

utility function;

Definition at line 187 of file FitScanResult.h.

void SctData::FitScanResult::setChannelFit ( unsigned int channel,

shared_ptr< FitObject > fit

) throw (LogicError)

Set a channel fit.
Must first call enableChannelFits
Definition at line 75 of file FitScanResult.cpp.
Referenced by SctData::IO::FitScanResultStreamer_v1::read().

void SctData::FitScanResult::setChipFit ( unsigned int chip,

shared_ptr< FitObject > fit

) throw (LogicError)

Set a chip fit.
Must first call enableChipFits
Definition at line 79 of file FitScanResult.cpp.
Referenced by SctData::IO::FitScanResultStreamer_v1::read().

void SctData::FitScanResult::setLinkFit ( unsigned int link,

shared_ptr< FitObject > fit

) throw (LogicError)

Set a link fit.
Must first call enableLinkFits
Definition at line 83 of file FitScanResult.cpp.
Referenced by SctData::IO::FitScanResultStreamer_v1::read().

void SctData::FitScanResult::setNChannelFits ( unsigned int n = Sct::nChannelModule ) throw ()

Set the number of channel fits that are stored.

Definition at line 99 of file FitScanResult.cpp.
Referenced by SctData::IO::FitScanResultStreamer_v1::read().

void SctData::FitScanResult::setNChipFits ( unsigned int n = Sct::nChipModule ) throw ()

Set the number of chip fits that are stored.

Definition at line 103 of file FitScanResult.cpp.
Referenced by SctData::IO::FitScanResultStreamer_v1::read().

void SctData::FitScanResult::setNLinkFits ( unsigned int n = Sct::nLinkModule ) throw ()

Set the number of channel fits that are stored.

Definition at line 107 of file FitScanResult.cpp.
Referenced by SctData::IO::FitScanResultStreamer_v1::read().

Friends And Related Function Documentation

friend class FitScanResultIOHelper [friend]

The IOHelper class.

Definition at line 182 of file FitScanResult.h.

Field Documentation

DefectList SctData::FitScanResult::defects [protected]

Contains all the defects discovered in doing the fits.

Definition at line 175 of file FitScanResult.h.
Referenced by getDefects().

RangedVector<shared_ptr<FitObject> > SctData::FitScanResult::m_channelFits [protected]

fits for each channel

Definition at line 171 of file FitScanResult.h.

RangedVector<shared_ptr<FitObject> > SctData::FitScanResult::m_chipFits [protected]

fits for each chip

Definition at line 172 of file FitScanResult.h.

RangedVector<shared_ptr<FitObject> > SctData::FitScanResult::m_linkFits [protected]

fits for each link

Definition at line 173 of file FitScanResult.h.

RangedVector<TH1D*> SctData::FitScanResult::m_summaryHist [protected]

summary histograms

Definition at line 174 of file FitScanResult.h.
Referenced by getNHist().

The documentation for this class was generated from the following files:

Generated on Thu Jul 15 09:52:40 2004 for SCT DAQ/DCS Software - C++ by

1.3.5

SctData::FitScanResult Class Reference

Public Member Functions

Static Public Member Functions

Protected Attributes

Private Member Functions

Static Private Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Field Documentation
