#include <configuration.h>

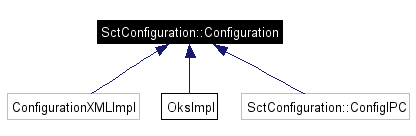

Inheritance diagram for SctConfiguration::Configuration:
Public Member Functions | |
| virtual | ~Configuration () |
| Free resources. | |
| virtual std::list< unsigned int > | listPartitions ()=0 |
| List partition ids Lookup the partitions defined in the configuration and return a list of integer ID's. | |
| virtual std::list< unsigned int > | listCratesInPartition (unsigned int partition)=0 |
| List crate ids with reference to the given partition Lookup the crates defined in the specified partition and return a list of integer ID's. | |
| virtual bool | isDummyCrate (unsigned int partition, unsigned int crate)=0 |
| Check if this should be a dummy crate. | |
| virtual std::list< unsigned int > | listRodsInCrate (unsigned int partition, unsigned int crate)=0 |
| List the rods present in a crate Lookup the RODs defined in the specified crate and return a list of integer ID's. | |
| virtual std::list< unsigned int > | listMURSInRod (unsigned int partition, unsigned int crate, unsigned int rod)=0 |
| List the MURs associated with a ROD Return integer id's of the MURs in the specified rod. | |
| virtual std::list< std::string > | listModulesInMUR (unsigned int partition, unsigned int MUR)=0 |
| List the modules in the given MUR Return a list of serial numbers associated with the specified MUR. | |
| virtual std::list< std::string > | listRModulesInMUR (unsigned int partition, unsigned int MUR)=0 |
| List the modules in the given MUR Return a list of serial numbers associated with the redundancy links of the specified MUR. | |
| virtual std::list< std::string > | listAllModules ()=0 |
| Return a list of serial numbers of all modules that have configuration. | |
| virtual std::list< std::string > | listUnusedModules ()=0 |
| Return a list of serial numbers of modules that have configuration but are not attached to an MUR. | |
| virtual ABCDModule | getModuleConfig (const std::string module)=0 |
| Return the configuration for the module. | |
| virtual short | getModuleGroup (const std::string module)=0 |
| Return the group for this module. | |
| virtual void | setModuleGroup (const std::string module, short group)=0 |
| Set the group for this module. | |
| virtual RodConfig | getRodConfig (unsigned int partition, unsigned int crate, unsigned int rod)=0 |
| Return the Rod configuration Find the configuration associated with the specified ROD. | |
| virtual SlaveConfig | getDefaultSlaveConfig (char type)=0 |
| Return the default slave configuration Find the configuration associated with the specified slave type. | |
| virtual BOCChannelConfig | getBOCConfig (unsigned int partition, unsigned int crate, unsigned int rod, unsigned int channel)=0 |
| Get the BOC configuration of one of 48 channels. | |
| virtual BOCGlobalConfig | getBOCGlobalConfig (unsigned int partition, unsigned int crate, unsigned int rod)=0 |
| Get the BOCs global configuration. | |
| virtual char * | getFibreMappings (unsigned int partition, unsigned int crate, unsigned int rod)=0 |
| Get the BOC fibre mappings. | |
| virtual TimConfig | getTimConfig (unsigned int partition, unsigned int crate)=0 |
| Return the TIM configuration Find the configuration associated with the specified TIM. | |
| virtual void | setFibreMapping (unsigned int partition, unsigned int crate, unsigned int rod, unsigned int channel, unsigned int tx, unsigned int rx0, unsigned int rx1)=0 |
| Set fibre mappings for one channel. | |
| virtual void | printModuleConfig (const ABCDModule &conf)=0 |
| Print module configuration to cout. | |
| virtual MURType | getMURType (unsigned int MUR)=0 |
| virtual unsigned int | getFreeMurId ()=0 |
| Return an unused MUR id. | |
| virtual void | translateToROD (unsigned int MUR, unsigned int module, unsigned int &partition, unsigned int &crate, unsigned int &rod, unsigned int &channel)=0 |
| Translate from MUR / module(1-6) number to p/k/r/c. | |
| virtual void | translateToRROD (unsigned int MUR, unsigned int module, unsigned int &partition, unsigned int &crate, unsigned int &rod, unsigned int &channel)=0 |
| Translate from MUR / redundant module(1-6) number to p/k/r/c. | |
| virtual void | translateToSN (unsigned int MUR, unsigned int module, std::string &sn)=0 |
| Translate from MUR / module(1-6) number to serial number. | |
| virtual void | translateToRMUR (unsigned int MUR, unsigned int module, unsigned int &RMUR, unsigned int &rmodule)=0 |
| Translate from MUR / module(1-6) number to MUR/module of redundant connection. | |
| virtual void | translateToBarrel (unsigned int MUR, unsigned int module, unsigned int &barrel, unsigned int &row, int &number)=0 |
| Translate from MUR / module(1-6) number to geographical barrel system. | |
| virtual void | translateToEndcap (unsigned int MUR, unsigned int module, int &disk, unsigned int &ring, unsigned int &number)=0 |
| Translate from MUR / module(1-6) number to geographical endcap system. | |
| virtual void | translateToPowerSupply (unsigned int MUR, unsigned int module, unsigned int &partition, unsigned int &crate, unsigned int &channel)=0 |
| Translate from MUR / module(1-6) number to power supply channel address. | |
| virtual void | translateFromROD (unsigned int partition, unsigned int crate, unsigned int rod, unsigned int channel, unsigned int &MUR, unsigned int &module)=0 |
| Translate to MUR / module(1-6) number from p/k/r/c. | |
| virtual void | translateFromRROD (unsigned int partition, unsigned int crate, unsigned int rod, unsigned int channel, unsigned int &MUR, unsigned int &module)=0 |
| Translate to MUR / module(1-6) number from address of redundant module. | |
| virtual void | translateFromSN (const std::string sn, unsigned int &MUR, unsigned int &module)=0 |
| Translate to MUR / module(1-6) number from serial number. | |
| virtual void | translateFromRMUR (unsigned int RMUR, unsigned int rmodule, unsigned int &MUR, unsigned int &module)=0 |
| Translate from redundant MUR / module(1-6) number to MUR/module via redundant connection. | |
| virtual void | translateFromBarrel (unsigned int barrel, unsigned int row, int number, unsigned int &MUR, unsigned int &module)=0 |
| Translate to MUR / module(1-6) number from geographical barrel system. | |
| virtual void | translateFromEndcap (int disk, unsigned int ring, unsigned int number, unsigned int &MUR, unsigned int &module)=0 |
| Translate to MUR / module(1-6) number from geographical endcap system. | |
| virtual void | translateFromPowerSupply (unsigned int partition, unsigned int crate, unsigned int channel, unsigned int &MUR, unsigned int &module)=0 |
| Translate from power supply channel address to MUR / module(1-6) number. | |
| virtual void | configureModuleFromStructure (const std::string module, const ABCDModule conf)=0 |
| Update or add the configuration of a module stored in memory Replace the configuration for the given module with the data stored in the given configuration. | |
| virtual void | configureModuleFromFile (const std::string filename)=0 |
| Update or add the configuration of a module stored in memory Replace the configuration for the given module with the data stored in the given file (the serial number is read from the file). | |
| virtual void | configureROD (unsigned int partition, unsigned int crate, unsigned int rod, RodConfig conf)=0 |
| Configure a ROD. | |
| virtual void | configureTIM (unsigned int partition, unsigned int crate, TimConfig conf)=0 |
| Configure a TIM. | |
| virtual void | configureBOC (unsigned int partition, unsigned int crate, unsigned int rod, const BOCGlobalConfig &conf)=0 |
| Set a BOC configuration. | |
| virtual void | clearAll ()=0 |
| Remove all configuration. | |
| virtual void | namePartition (unsigned int partition, const std::string name)=0 |
| Name a partition (for information, any use?). | |
| virtual void | configureBOCChannel (unsigned int MUR, unsigned int position, const BOCChannelConfig &conf)=0 |
| Set a BOC channel configuration. | |
| virtual void | mapModuleMUR (unsigned int MUR, unsigned int order, unsigned int RMUR, unsigned int rorder, std::string number)=0 |
| Map a module (by serial number) onto a position in an MUR. | |
| virtual void | unmapModuleMUR (unsigned int MUR, unsigned int order)=0 |
| Unmap a module from a position in an MUR. | |
| virtual void | mapRODMUR (unsigned int partition, unsigned int crate, unsigned int rod, unsigned int order, unsigned int MUR)=0 |
| Map an MUR to a ROD. | |
| virtual void | unmapRODMUR (unsigned int MUR)=0 |
| Unmap an MUR from a ROD. | |
| virtual void | mapBarrelMUR (unsigned int MUR, unsigned int barrel, unsigned int row, int position)=0 |
| Map Barrel MUR. | |
| virtual void | unmapBarrelMUR (unsigned int MUR)=0 |
| Unmap MUR from Barrel. | |
| virtual void | getMapMURROD (unsigned int MUR, unsigned int &partition, unsigned int &crate, unsigned int &rod, unsigned int &order)=0 |
| Get mapping of MUR to ROD. | |
| virtual void | getMapRODMUR (unsigned int partition, unsigned int crate, unsigned int rod, unsigned int order, unsigned int &number)=0 |
| Get mapping of ROD to MUR. | |
| virtual void | getMapMURPhysical (unsigned int MUR, MURType &type, int &plane, int §ion, int &position)=0 |
| virtual void | swapMURNames (unsigned int MUR1, unsigned int MUR2)=0 |
| Swap two MUR names around. | |
| virtual void | mapEndcapMUR (unsigned int MUR, int disk, unsigned int quadrant, unsigned int position)=0 |
| Map Endcap MUR. | |
| virtual void | unmapEndcapMUR (unsigned int MUR)=0 |
| Unmap Endcap MUR. | |
| virtual void | mapPowerChannel (unsigned int MUR, unsigned int number, unsigned int partition, unsigned int crate, unsigned int channel)=0 |
| Map Power channel. | |
| virtual void | unmapPowerChannel (unsigned int MUR, unsigned int number)=0 |
| Unmap Power channel. | |
| virtual void | modifyDefaultPowerParam (std::string state, std::string name, std::string type, float value)=0 |
| Set default value of any MoPS parameter. | |
| virtual void | modifyHVCardParam (unsigned int crate, unsigned int card, std::string name, std::string type, float value)=0 |
| Set MoPS HV card parameter. | |
| virtual void | modifyLVCardParam (unsigned int crate, unsigned int card, std::string name, std::string type, float value)=0 |
| Set MoPS LV card parameter. | |
| virtual void | modifyPowerParam (unsigned int MUR, unsigned int number, std::string state, std::string name, std::string type, float value)=0 |
| Set MoPS channel parameter referenced by MUR/number. | |
| virtual void | modifyPowerParamCC (unsigned int crate, unsigned int channel, std::string state, std::string name, std::string type, float value)=0 |
| Set MoPS channel parameter referenced by MoPS crate/channel. | |
| virtual float | getDefaultPowerParam (std::string state, std::string name, std::string type)=0 |
| Get default power of any MoPS parameter. | |
| virtual float | getHVCardParam (unsigned int crate, unsigned int card, std::string name, std::string type)=0 |
| Get MoPS HV card parameter. | |
| virtual float | getLVCardParam (unsigned int crate, unsigned int card, std::string name, std::string type)=0 |
| Get MoPS LV card parameter. | |
| virtual float | getPowerParam (unsigned int MUR, unsigned int number, std::string state, std::string name, std::string type)=0 |
| Get MoPS channel parameter referenced by MUR/number. | |
| virtual float | getPowerParamCC (unsigned int crate, unsigned int channel, std::string state, std::string name, std::string type)=0 |
| Get MoPS channel parameter referenced by MoPS crate/channel. | |
| virtual std::list< std::string > | listDefaultPowerParams ()=0 |
| List the defined parameters. | |
| virtual float | getCratePowerParam (unsigned int crate, std::string name)=0 |
| Get Crate level power supply parameter. | |
| virtual std::list< std::string > | listDCSChannelParams ()=0 |
| List the channel parameters for DCS. | |
| virtual std::list< std::string > | listDCSCardParams ()=0 |
| List the card parameters for DCS. | |
| virtual std::list< std::string > | listDCSCrateParams ()=0 |
| List the crate parameters for DCS. | |
| virtual void | loadConfiguration (const std::string &filename)=0 |
| Load configuration from named file. | |
| virtual void | saveConfiguration (const std::string filename="")=0 |
| Save the current configuration. | |
| virtual void | saveModuleConfiguration (const std::string modsn, const std::string filename)=0 |
| Save the current configuration for a module. | |
| virtual std::string | getModuleConfigurationString (const std::string modsn, const ABCDModule config)=0 |
| Construct the XML for a module configuration and return as a string. | |
| virtual void | writePowerSupplyConfiguration (std::string filename)=0 |
| Dump power supply configuration to a file. | |
This will be replaced by an interface to the DAQ confDB system.
The primary function of this class is the readout of configuration data from the database.
Translation functions:
Barrel barrel, row, number 3 to 6 0 to 55 -1 to -6 and 1 to 6
Internals: position on row given as -1 for -ve numbers and 1 for +ve numbers
Endcap disc quadrant number 0 to 17 0 to 3 0 to 32
Internals: position of MUR in quadrant number is left to right top to bottom 0000001222222 4444455555 1111133333
Definition at line 139 of file configuration.h.
|
|
Free resources.
Definition at line 144 of file configuration.h. |
|
|
Remove all configuration. Very dangerous!! Implemented in OksImpl. |
|
||||||||||||||||||||
|
Set a BOC configuration.
|
|
||||||||||||||||
|
Set a BOC channel configuration.
|
|
|
Update or add the configuration of a module stored in memory Replace the configuration for the given module with the data stored in the given file (the serial number is read from the file).
Implemented in OksImpl. |
|
||||||||||||
|
Update or add the configuration of a module stored in memory Replace the configuration for the given module with the data stored in the given configuration.
Implemented in OksImpl. |
|
||||||||||||||||||||
|
Configure a ROD. Replace the in memory configuration for the given ROD with the configuration provided. If no configuration then construct it Implemented in OksImpl. |
|
||||||||||||||||
|
Configure a TIM. Replace the in memory configuration for the given TIM with the configuration provided. If no configuration then construct it Implemented in OksImpl. |
|
||||||||||||||||||||
|
Get the BOC configuration of one of 48 channels.
Implemented in OksImpl. |
|
||||||||||||||||
|
Get the BOCs global configuration.
|
|
||||||||||||
|
Get Crate level power supply parameter.
|
|
||||||||||||||||
|
Get default power of any MoPS parameter.
|
|
|
Return the default slave configuration Find the configuration associated with the specified slave type. Return a SlaveConfig structure. |
|
||||||||||||||||
|
Get the BOC fibre mappings. An array of 48*3 chars (out, in0, in1) Implemented in OksImpl. |
|
|
Return an unused MUR id.
|
|
||||||||||||||||||||
|
Get MoPS HV card parameter.
|
|
||||||||||||||||||||
|
Get MoPS LV card parameter.
|
|
||||||||||||||||||||||||
|
Get mapping of MUR to ROD.
|
|
||||||||||||||||||||||||
|
Get mapping of ROD to MUR.
|
|
|
Return the configuration for the module. Deprecated: Should take MUR argument Implemented in OksImpl. |
|
||||||||||||
|
Construct the XML for a module configuration and return as a string.
Implemented in OksImpl. |
|
|
Return the group for this module.
|
|
||||||||||||||||||||||||
|
Get MoPS channel parameter referenced by MUR/number.
|
|
||||||||||||||||||||||||
|
Get MoPS channel parameter referenced by MoPS crate/channel.
|
|
||||||||||||||||
|
Return the Rod configuration Find the configuration associated with the specified ROD. Return a RodConfig structure. Implemented in OksImpl. |
|
||||||||||||
|
Return the TIM configuration Find the configuration associated with the specified TIM. Return a TimConfig structure. Implemented in OksImpl. |
|
||||||||||||
|
Check if this should be a dummy crate.
|
|
|
Return a list of serial numbers of all modules that have configuration. This includes those that are not attached to a ROD or MUR Implemented in OksImpl. |
|
|
List crate ids with reference to the given partition Lookup the crates defined in the specified partition and return a list of integer ID's.
Implemented in OksImpl. |
|
|
List the card parameters for DCS.
|
|
|
List the channel parameters for DCS.
|
|
|
List the crate parameters for DCS.
|
|
|
List the defined parameters.
|
|
||||||||||||
|
List the modules in the given MUR Return a list of serial numbers associated with the specified MUR. FIXME: Should be in numbered order Implemented in OksImpl. |
|
||||||||||||||||
|
List the MURs associated with a ROD Return integer id's of the MURs in the specified rod. FIXME: Should be in numbered order Implemented in OksImpl. |
|
|
List partition ids Lookup the partitions defined in the configuration and return a list of integer ID's.
Implemented in OksImpl. |
|
||||||||||||
|
List the modules in the given MUR Return a list of serial numbers associated with the redundancy links of the specified MUR. FIXME: Should be in numbered order (array?) Implemented in OksImpl. |
|
||||||||||||
|
List the rods present in a crate Lookup the RODs defined in the specified crate and return a list of integer ID's.
Implemented in OksImpl. |
|
|
Return a list of serial numbers of modules that have configuration but are not attached to an MUR.
Implemented in OksImpl. |
|
|
Load configuration from named file.
Implemented in OksImpl. |
|
||||||||||||||||||||
|
Map Barrel MUR.
|
|
||||||||||||||||||||
|
Map Endcap MUR.
|
|
||||||||||||||||||||||||
|
Map a module (by serial number) onto a position in an MUR.
|
|
||||||||||||||||||||||||
|
Map Power channel.
|
|
||||||||||||||||||||||||
|
Map an MUR to a ROD.
|
|
||||||||||||||||||||
|
Set default value of any MoPS parameter.
|
|
||||||||||||||||||||||||
|
Set MoPS HV card parameter.
|
|
||||||||||||||||||||||||
|
Set MoPS LV card parameter.
|
|
||||||||||||||||||||||||||||
|
Set MoPS channel parameter referenced by MUR/number.
|
|
||||||||||||||||||||||||||||
|
Set MoPS channel parameter referenced by MoPS crate/channel.
|
|
||||||||||||
|
Name a partition (for information, any use?).
|
|
|
Print module configuration to cout.
Implemented in OksImpl. |
|
|
Save the current configuration. Write configuration to disc. If no filename is provided a unique filename based on the date and time is created. Filename eg Conf_dump_20021210142311.xml.gz (in current directory) Implemented in OksImpl. |
|
||||||||||||
|
Save the current configuration for a module. Write the configuration for the module modsn to disc. Implemented in OksImpl. |
|
||||||||||||||||||||||||||||||||
|
Set fibre mappings for one channel. Any value over 48/96 leaves current value unchanged Implemented in OksImpl. |
|
||||||||||||
|
Set the group for this module.
|
|
||||||||||||
|
Swap two MUR names around. This means in regards to everything about one MUR you can use the other name If either doesn't exist then just one MUR is renamed |
|
||||||||||||||||||||||||
|
Translate to MUR / module(1-6) number from geographical barrel system.
Implemented in OksImpl. |
|
||||||||||||||||||||||||
|
Translate to MUR / module(1-6) number from geographical endcap system.
|
|
||||||||||||||||||||||||
|
Translate from power supply channel address to MUR / module(1-6) number.
Implemented in OksImpl. |
|
||||||||||||||||||||
|
Translate from redundant MUR / module(1-6) number to MUR/module via redundant connection.
|
|
||||||||||||||||||||||||||||
|
Translate to MUR / module(1-6) number from p/k/r/c.
Implemented in OksImpl. |
|
||||||||||||||||||||||||||||
|
Translate to MUR / module(1-6) number from address of redundant module. This returns the MUR/module of the module connected using its redundant link to the p/k/r/c address
Implemented in OksImpl. |
|
||||||||||||||||
|
Translate to MUR / module(1-6) number from serial number.
Implemented in OksImpl. |
|
||||||||||||||||||||||||
|
Translate from MUR / module(1-6) number to geographical barrel system.
Implemented in OksImpl. |
|
||||||||||||||||||||||||
|
Translate from MUR / module(1-6) number to geographical endcap system.
|
|
||||||||||||||||||||||||
|
Translate from MUR / module(1-6) number to power supply channel address.
Implemented in OksImpl. |
|
||||||||||||||||||||
|
Translate from MUR / module(1-6) number to MUR/module of redundant connection.
|
|
||||||||||||||||||||||||||||
|
Translate from MUR / module(1-6) number to p/k/r/c.
Implemented in OksImpl. |
|
||||||||||||||||||||||||||||
|
Translate from MUR / redundant module(1-6) number to p/k/r/c. This returns the channel to which the module referred to by MUR/module is connected in its redundant configuration
Implemented in OksImpl. |
|
||||||||||||||||
|
Translate from MUR / module(1-6) number to serial number.
Implemented in OksImpl. |
|
|
Unmap MUR from Barrel.
|
|
|
Unmap Endcap MUR.
|
|
||||||||||||
|
Unmap a module from a position in an MUR.
|
|
||||||||||||
|
Unmap Power channel.
|
|
|
Unmap an MUR from a ROD.
|
|
|
Dump power supply configuration to a file.
Implemented in OksImpl. |
1.3.5
