DisplayGUI.TestDataInfo

DisplayGUI.TestDataInfo Interface Reference

Detector parameters. More...

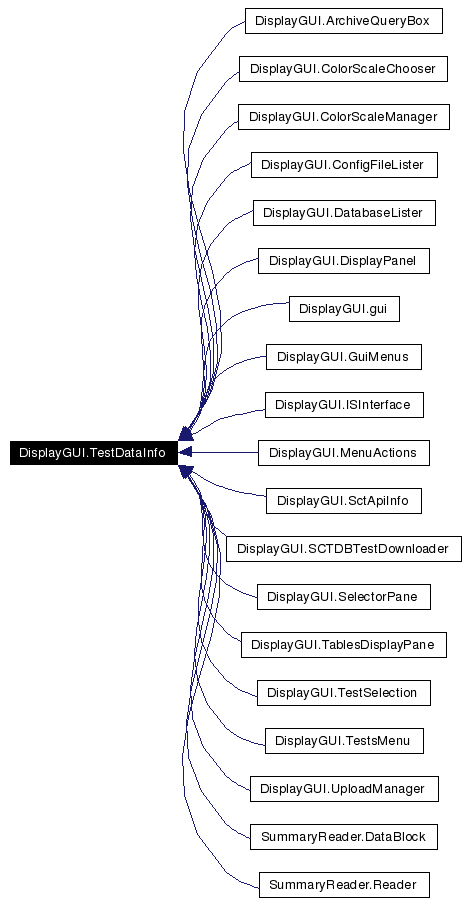

Inheritance diagram for DisplayGUI.TestDataInfo:

Inheritance graph
[legend]
List of all members.

Public Attributes

double[][] testDataTolerances
final String[] chipOptions
final String[] linkOptions = {"Link 0","Link 1"}
final String[] dcsOptions = {"Sensor HV(Volts)","Sensor Current(uA)","Hybrid T0(degC)","Hybrid T1(degC)","Chip VCC (Volts)","Chip ICC (mA)","Chip VDD (Volts)","Chip IDD (mA)","TDiff (degC)","Module Power (W)","Chip IPIN"}
final String[] dcsParams = {"HVchVolt","HVchCurr","MOch_Tm0","MOch_Tm1","LVch_Vcc","LVch_Icc","LVch_Vdd","LVch_Idd","LVchPINI"}
final String[] configParams = {"Module Group","TX Current","TX Coarse Delay","TX Fine Delay","Mark/Space","RX Threshold","RX Delay"}
final boolean[] configParams_links = {false,false,false,false,false,true,true}
final String[] configParamLabels = {"","ST_TX_CURRENT","ST_TX_COARSE","ST_TX_FINE","ST_TX_MARKSPACE","ST_RX_THRESHOLD","ST_RX_DELAY"}
final boolean[] testIsDefined = {false,false,true,true,true,true,true,true,true,true,false,false,true,true,true,true,true,true,true,true,false}
final boolean[] testIsSCTDAQ = {true,true,true,true,true,true,true,true,true,true,true,true,false,false,false,false,false,false,false,false,false}

Static Public Attributes

static final String[] testNames
static final String[] testMenuNames
static final String[] resultFileKeyNames
static final int parameterOffset = 4
static final String[][] testParameters
static final boolean[][] doComparisons
static final boolean[][] isSCTDAQCompatible
static final boolean[][] canBeZero
static final int TEST_RESET = 0
static final int TEST_REDUNDANCY = 1
static final int TEST_FULLBYPASS = 2
static final int TEST_PIPELINE = 3
static final int TEST_STROBEDELAY = 4
static final int TEST_3PTGAIN = 5
static final int TEST_TRIM = 6
static final int TEST_NPTGAIN = 7
static final int TEST_NOISE = 8
static final int TEST_TIMEWALK = 9
static final int TEST_LONGTERM = 10
static final int TEST_IV = 11
static final int TEST_NMASK = 12
static final int TEST_RXTHRESHOLD = 13
static final int TEST_RXTHRESHOLDBASEDONCONFIGREGISTER = 14
static final int TEST_RXDELAY = 15
static final int TEST_TXCURRENT = 16
static final int TEST_DOUBLETRIGGERNOISE = 17
static final int TEST_MARKSPACERATIO = 18
static final int TEST_CHIPCOUNTER = 19
static final int TEST_DEFAULT = 20

Detailed Description

Detector parameters.

Definition at line 6 of file TestDataInfo.java.

Member Data Documentation

final boolean [][] DisplayGUI.TestDataInfo.canBeZero [static]


Initial value:

 {
                {},
                {},
                {true,true,true,true,true,true,true,true},
                {true,true,true,true,true},
                {true,true,true,true,true},
                {true,true,true,true,true,true,true,true,true,true,true,true,true,true,true,true},
                {true,true,true,true,true,true,true,true,true,true,true,true,true},
                {true,true,true,true,true,true,true,true,true,true,true,true,true,true,true,true},
                {true,true,true,true,true,true,true,true,true,true},
                {true,true,true,true,true,true},
                {},
                {},
                {true,true,true,true},
                {true, true, true,true,true},
                {true, true, true,true,true,true,true,true},
                {true, true, true,true,true},
                {true, true, true,true,true,true,true,true},
                {true,true,true,true,true,true,true,true},
                {true,true,true,true,true},
                {true,true,true,true},
                {}
         }

Definition at line 106 of file TestDataInfo.java.

final String [] DisplayGUI.TestDataInfo.chipOptions


Initial value:

 {"Chip Maximum","Chip Minimum","Mean (Link0)","Mean (Link1)","Chip M0","Chip S1","Chip S2","Chip S3","Chip S4","Chip E5","Chip M8",
"Chip S9","Chip S10","Chip S11","Chip S12","Chip E13"}

Definition at line 153 of file TestDataInfo.java.

final boolean [][] DisplayGUI.TestDataInfo.doComparisons [static]


Initial value:

 {
                {},
                {},
                {false,false,false,false,true,true,false,false},
                {false,false,false,false,true},
                {false,false,false,false,true},
                {false,false,false,false,false,false,true,false,false,false,false,true,false,false,false,false},
                {false,false,false,false,false,false,true,false,false,false,false,false,false},
                {false,false,false,false,false,false,true,false,false,false,false,true,false,false,false,false},
                {false,false,false,false,false,true,false,true,false,false},
                {false,false,false,false,true,false},
                {},
                {},
                {false,false,false,false},
                {false,false,false,false,false},
                {false,false,false,false,false,false,false,false},
                {false,false,false,false,false},
                {false,false,false,false,false,false,false},
                {false,false,false,false,false,false,false,false},
                {false,false,false,false,false},
                {false,false,false,false},
                {}
         }

Definition at line 57 of file TestDataInfo.java.

final boolean [][] DisplayGUI.TestDataInfo.isSCTDAQCompatible [static]


Initial value:

 {
                {},
                {},
                {true,true,true,true,true,true,true,true},
                {true,true,true,true,true},
                {true,true,true,true,true},
                {true,true,true,true,true,true,true,true,true,true,true,true,true,false,false,false},
                {true,true,true,true,true,true,true,true,true,true,true,true,true},
                {true,true,true,true,true,true,true,true,true,true,true,true,true,false,false,false},
                {true,true,true,true,true,true,true,true,false,false},
                {true,true,true,true,true,true},
                {},
                {},
                {false,false,false,false},
                {false,false,false,false,false},
                {false,false,false,false,false,false,false,false},
                {false,false,false,false,false},
                {false,false,false,false,false,false,false,false},
                {false,false,false,false,false,false,false,false},
                {false,false,false,false,false},
                {false,false,false,false},
                {}
         }

Definition at line 81 of file TestDataInfo.java.

final String [] DisplayGUI.TestDataInfo.resultFileKeyNames [static]


Initial value:

 {"","","FullBypassTest","PipelineTest",
                                               "StrobeDelay","ThreePointGain","Trim","ResponseCurve",
                                               "NO","TimeWalkTest","","DetModIV",
                                               "NMaskTest", "RxThreshold", "RxThresholdBasedOnConfigRegisterTest",
                                               "RxDelay","TxCurrentTest","DoubleTriggerNoise","MarkSpaceRatioTest",
                                               "ChipCounterTest",
                                               "DefaultTest"}

Definition at line 24 of file TestDataInfo.java.

double [][] DisplayGUI.TestDataInfo.testDataTolerances


Initial value:

 {
                {},
                {},
                {0.0,0.0,0.0,0.0,0.1,0.1,1.0,1.0},
                {0.0,0.0,0.0,0.0,1.0},
                {0.0,0.0,0.0,0.0,3.0},
                {0.0,0.0,0.0,0.0,50.0,5.0,10.0,1.0,5.0,3.0,2.0,150.0,50.0,1.0,1.0,1.0},
                {0.0,0.0,0.0,0.0,4.0,200.0,1.0,100.0,10.0,100.0,20.0,10.0,1.0},
                {0.0,0.0,0.0,0.0,50.0,5.0,10.0,1.0,5.0,3.0,2.0,150.0,50.0,1.0,1.0,1.0},
                {0.0,0.0,0.0,0.0,10.0,5e-5,5e-5,150.0,0.0,0.0},
                {0.0,0.0,0.0,0.0,0.5,0.5},
                {},
                {},
                {0.0, 0.0,0.0,0.0,},
                {0.0, 0.0,0.0, 0.0,3.0},
                {0.0, 0.0,0.0, 0.0,3.0,3.0,3.0,3.0},
                {0.0, 0.0,0.0, 0.0,3.0},
                {0.0, 0.0,0.0, 0.0,3.0,3.0,3.0,3.0},
                {0.0, 0.0,0.0, 0.0,5e-5,5e-5,0.5,1.0},
                {0.0,0.0,0.0,0.0,0.0},
                {0.0, 0.0,0.0,0.0,},
                {}
          }

Definition at line 129 of file TestDataInfo.java.

final String [] DisplayGUI.TestDataInfo.testMenuNames [static]


Initial value:

 {"Reset","Redundancy","FullByPass","Pipeline",
                                          "StrobeDelay","3PtGain","Trim","NPtGain",
                                          "Noise","TimeWalk","LongTerm","IVscan",
                                          "NMask","RxThreshold", "RxThresholdFromConfigReg",
                                          "RxDelay", "TxCurrent","DoubleTriggerNoise","MarkSpaceRatio",
                                          "ChipCounter",
                                          "DefaultTest"}

Definition at line 16 of file TestDataInfo.java.

Referenced by DisplayGUI.DatabaseLister.initComponents().

final String [] DisplayGUI.TestDataInfo.testNames [static]


Initial value:

 {"ResetTest","RedundancyTest","FullBypassTest","PipelineTest",
                                      "StrobeDelayTest","3PtGainTest","TrimRangeTest","NPtGainTest",
                                      "NoiseOccupancyTest","TimeWalkTest","LongTermTest","IVScanTest",
                                      "NMaskTest", "RxThresholdTest", "RxThresholdBasedOnConfigRegisterTest",
                                      "RxDelayTest","TxCurrentTest", "DoubleTriggerNoise","MarkSpaceRatioTest",
                                      "ChipCounterTest",
                                      "DefaultTest"}

Definition at line 8 of file TestDataInfo.java.

Referenced by DisplayGUI.DatabaseLister.initComponents(), DisplayGUI.ArchiveQueryBox.initComponents(), DisplayGUI.SCTDBTestDownloader.SCTDBTestDownloader(), and DisplayGUI.TestSelection.TestSelection().

final String [][] DisplayGUI.TestDataInfo.testParameters [static]


Initial value:

 {
                {},
                {},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions","Token","RToken","Token Comment","RToken Comment"},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions","Defective pipelines"},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions","Strobe Delay"},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions","VT50(mV)","VT50(mV) RMS","Gain (mV/fC)","Gain RMS","Offset (mV)","Offset RMS","Output Noise (mV)","Input Noise (enc)","Noise RMS (enc)","ChipSlope Noise","ChipSlope Offset","ChipSlope Gain"},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions","Trim Range","Target","N(untrimmed)","VT50(mV)","VT50(mV) RMS","Offset (mV)","Offset RMS","Step size (mV)","Step Size RMS"},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions","VT50(mV)","VT50(mV) RMS","Gain (mV/fC)","Gain RMS","Offset (mV)","Offset RMS","Output Noise (mV)","Input Noise (enc)","Noise RMS (enc)","ChipSlope Noise","ChipSlope Offset","ChipSlope Gain"},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions","Offset (mV)","Occupancy","RMS Occupancy","Input Noise (enc)","MaxBadness","NoThreshold"},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions","TimeWalk(ns)","TCal"},
                {},
                {},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions"},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions","Rx Threshold"},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions","Min Rx Threshold","Max Rx Threshold","Best Rx Threshold"},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions","Rx Delay"},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions","Min Tx Current","Max Tx Current","Best Tx Current"},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions","Average Occupancy","Peak Occupancy","Peak Ratio","Peak Bin"},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions","Optimum MS Ratio"},
                {"Result Status","Defect Count","#Bad Chans","DCS Conditions"},
                {}
         }

Definition at line 34 of file TestDataInfo.java.

The documentation for this interface was generated from the following file:
Generated on Mon Feb 6 14:13:44 2006 for SCT DAQ/DCS Software - Java by  doxygen 1.4.6
