SctData.ModuleDefect Class Reference

This class represents a possible defect with a module. More...

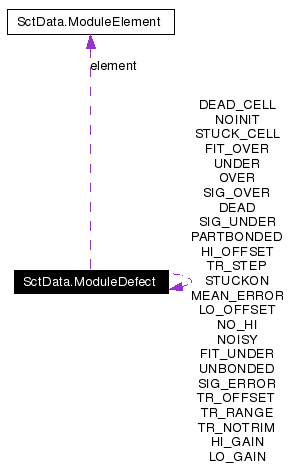

Collaboration diagram for SctData.ModuleDefect:

[legend]List of all members.

Other Defects
} {
	ModuleDefect (ModuleDefect prototype, ModuleElement element)
	Public constructor: Copy the given ModuleDefect and give ModuleElement.
boolean	isSevere ()
	Return true if this ModuleDefect is severe.
ModuleElement	getModuleElement ()
	Gets the module element affected by this defect.
boolean	isPrototype ()
	True if this is a prototype, false if it actually represents a defect.
boolean	isUnfittable ()
	returns true if defect is serious enough to prevent fitting to this channel.
boolean	isUnuseable ()
	SCTDAQ definitition of unusable is dead or stuckon.
boolean	isDodgy ()
	SCTDAQ definitition of `dodgy' is any defect other than dead or stuckon.
String	getName ()
	Gets the name of this defect.
String	getDescription ()
	Get a human readable description for this ModuleDefect.
double	getParameter ()
	Gets a parameter that can be used to determine if something is defective.
boolean	isSameTypeAs (ModuleDefect defect)
	Comparison operators Returns true if the defect types are the same.
boolean	equals (Object o)
	Returns true if the defect types are the same.
String	getClassName ()
void	write (OStream s, ObjectManager o) throws java.io.IOException
static ModuleDefect	read (IStream s, ObjectManager o) throws java.io.IOException
	For I/O use.
static ModuleDefect	NO_HI = new ModuleDefect(19, true, "NO_HI", "High noise occupancy", 0.0005)
static ModuleDefect	MEAN_ERROR = new ModuleDefect(16, true, "MEAN_ERROR", "Error in the mean", 0)
	high noise occupancy
static ModuleDefect	SIG_ERROR = new ModuleDefect(17, true, "SIG_ERROR", "Error in the sigma", 0)
static ModuleDefect	STUCK_CELL = new ModuleDefect(21, false, "STUCK_CELL","Stuck cell in the pipeline",0.)
	pipeline
static ModuleDefect	DEAD_CELL = new ModuleDefect(20, false, "DEAD_CELL","Dead cell in the pipeline",0.)
	pipeline
	ModuleDefect (int id, boolean severe, String name, String d, double parameter)
	Private constructor.
int	id
boolean	severe
String	name
String	description
double	parameter
ModuleElement	element
Static Public Attributes
static ModuleDefect	DEAD = new ModuleDefect(1, true, "DEAD", "Dead channel - output always <1%", 0.01)
	Output always v small.
static ModuleDefect	STUCKON = new ModuleDefect(2, true, "STUCKON", "Dead channel - output always > 98% occupancy", 0.98)
	Output always v high.
static ModuleDefect	OVER = new ModuleDefect(4, false, "OVER", "Occupancy greater than 100%", 1.)
	Occupancy larger than max.
static ModuleDefect	UNDER = new ModuleDefect(3, true, "UNDER", "Occupancy never reaches 100%", 1.)
	Occupancy never reaches mas.
static ModuleDefect	NOINIT = new ModuleDefect(18, true, "NOINIT", "Couldn't initialize fit", 0)
	Couldn't initialize the fit.
static ModuleDefect	FIT_UNDER = new ModuleDefect(5, true, "FIT_UNDER", "Fitted mean out of bounds low", 0)
static ModuleDefect	FIT_OVER = new ModuleDefect(6, true, "FIT_OVER", "Fitted mean out of bounds high", 0)
static ModuleDefect	SIG_UNDER = new ModuleDefect(7, true, "SIG_UNDER", "Fitted sigma out of bounds low", 0)
static ModuleDefect	SIG_OVER = new ModuleDefect(8, true, "SIG_OVER", "Fitted sigma out of bounds high", 0)
NPt Gain Defects
{
static ModuleDefect	LO_GAIN = new ModuleDefect(9, true, "LO_GAIN", "Gain is less than 0.75*chip average", 0.75)
	Gain < 0.75 * chip average.
static ModuleDefect	HI_GAIN = new ModuleDefect(10, true, "HI_GAIN", "Gain is higher than 1.25*chip average", 1.25)
	Gain > 1.25 * chip average.
static ModuleDefect	LO_OFFSET = new ModuleDefect(11, true, "LO_OFFSET", "Offset is less than -100", -100)
	Offset < -100.
static ModuleDefect	HI_OFFSET = new ModuleDefect(12, true, "HI_OFFSET", "Offset is higher than 12-", 120)
	Offset > 120.
static ModuleDefect	UNBONDED = new ModuleDefect(13, true, "UNBONDED", "Noise is less than 750", 750)
	Noise <= 750.
static ModuleDefect	PARTBONDED = new ModuleDefect(14, false, "PARTBONDED", "Noise is less than 1100", 1100)
	Noise <= 1100.
static ModuleDefect	NOISY = new ModuleDefect(15, true, "NOISY", "Noise is > 1.15*chip average", 1.15)
	Noise > 1.15* av chip noise.
Trim Defects
} {
static ModuleDefect	TR_RANGE = new ModuleDefect(22, false, "TR_RANGE","Unusual chip trim step size",0.)
	Unexpected chip trim step size.
static ModuleDefect	TR_STEP = new ModuleDefect(23, false, "TR_STEP","Channel trim step size different from chip",4.)
	Channel step different from chip.
static ModuleDefect	TR_OFFSET = new ModuleDefect(24, false, "TR_OFFSET","Channel trim range offset different from chip",4.)
	Channel offset different from chip.
static ModuleDefect	TR_NOTRIM = new ModuleDefect(25, true, "TR_NOTRIM","Untrimmable channel",0.)
	Untrimmable channel.
Static Private Attributes
static HashMap	defectMap = new HashMap(20)

---

Detailed Description

This class represents a possible defect with a module.

A ModuleDefect has a description and can be classified as severe or not severe.

Todo:

Is this enough? Do we need to add more classes here? Should we be able to add other ModuleDefect s anywhere in our code or is having a central repository here enough? Should this class be renamed ChannelDefect?

Author:

Matthew Palmer

Definition at line 14 of file ModuleDefect.java.

---

Member Function Documentation

boolean SctData.ModuleDefect.equals (  Object  o  )

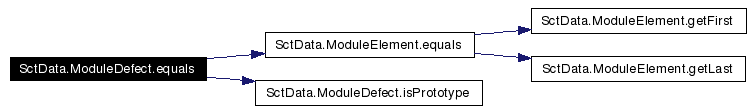

Returns true if the defect types are the same. Returns false if either is a prototype. Note: defects need NOT refer to the same (physical) channels. Definition at line 121 of file ModuleDefect.java. References SctData.ModuleDefect.element, SctData.ModuleElement.equals(), SctData.ModuleDefect.id, and SctData.ModuleDefect.isPrototype(). Here is the call graph for this function:

boolean SctData.ModuleDefect.isPrototype (   )

True if this is a prototype, false if it actually represents a defect. Todo: is this necessary? Definition at line 73 of file ModuleDefect.java. References SctData.ModuleDefect.element. Referenced by SctData.ModuleDefect.equals().

boolean SctData.ModuleDefect.isSameTypeAs (  ModuleDefect  defect  )

Comparison operators Returns true if the defect types are the same. AND defects refer to the same channels. Definition at line 112 of file ModuleDefect.java. References SctData.ModuleDefect.id. Referenced by SctData.ModuleDefect.isDodgy(), SctData.ModuleDefect.isUnfittable(), and SctData.ModuleDefect.isUnuseable().

---

The documentation for this class was generated from the following file:

• ModuleDefect.java

---
