GuiComponents.System.SystemInterface Class Reference

This class is an interface to the rest of the Software System It contains methods to get access to all the various components that may or may not be running. More...

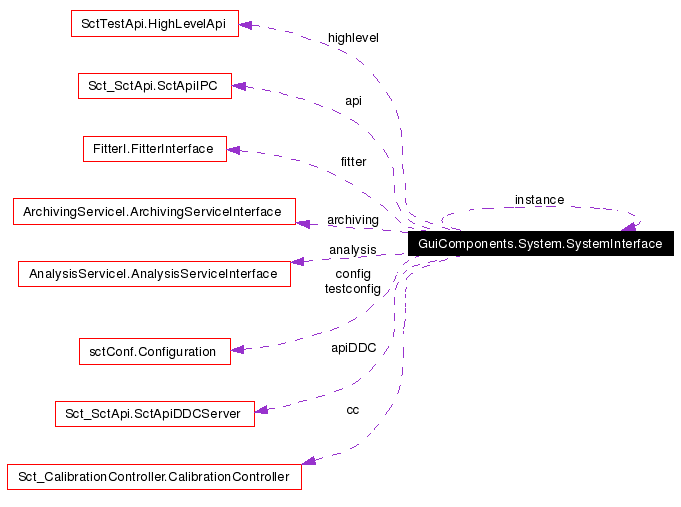

Collaboration diagram for GuiComponents.System.SystemInterface:

[legend]List of all members.

Public Member Functions
void	refresh ()
	Re-obtain all connections to external processes.
Partition	getPartition ()
	Get the IPC Partition that all our processes are contained in.
SctTestApi.Configuration	getTestConfiguration ()
	Get a reference to the SctTest Configuration interface.
HighLevelApi	getTestHighLevelApi ()
	Get a reference to the SctTest HighLevelApi interface.
CalibrationController	getCalibrationController ()
	Gets a reference to the CalibrationController.
SctApiIPC	getSctApi ()
	Gets a reference to the Api.
SctApiDDCServer	getSctApiDDCServer ()
	Gets a reference to the ApiDDCServer.
sctConf.Configuration	getConfigurationService ()
	Gets a reference to the configuration service.
AnalysisServiceInterface	getAnalysisService ()
	Gets a reference to the analysis service.
ArchivingServiceInterface	getArchivingService ()
	Gets a reference to the archiving service.
FitterInterface	getFittingService ()
	Gets a reference to the fitting service.
org.omg.CORBA.Object	lookup (java.lang.Class type, String name)
	Method that will only return valid corba objects on lookup!
Static Public Member Functions
static SystemInterface	getInstance ()
	Get the singleton interface.
Private Member Functions
	SystemInterface ()
	Creates a new instance of SCTInterface.
Private Attributes
Partition	p
Logger	logger
SctTestApi.Configuration	testconfig
HighLevelApi	highlevel
CalibrationController	cc
SctApiIPC	api
SctApiDDCServer	apiDDC
sctConf.Configuration	config
AnalysisServiceInterface	analysis
ArchivingServiceInterface	archiving
FitterInterface	fitter
Static Private Attributes
static SystemInterface	instance = new SystemInterface()
static final String	defaultPartitionName = "SCT"
static int	maxtries = 4

---

Detailed Description

This class is an interface to the rest of the Software System It contains methods to get access to all the various components that may or may not be running.

Users should probably not cache references for long periods of time

This class and ISInterface mirror some of the methods from SctNames in the C++ code

Author:

Matthew Palmer

Definition at line 32 of file SystemInterface.java.

---

The documentation for this class was generated from the following file:

• SystemInterface.java

---
