GuiComponents.Inspector.StreamableRep Class Reference

Inheritance diagram for GuiComponents.Inspector.StreamableRep:

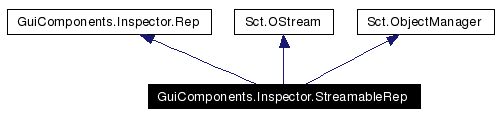

[legend]Collaboration diagram for GuiComponents.Inspector.StreamableRep:

[legend]List of all members.

Public Member Functions
String	toString ()
String	getName ()
String	getClassName ()
String	getValue ()
Name	writeObject (Serializable object)
	Write a Serializable object.
void	writeObject (OStream s, String name, Streamable object, boolean writeClassName)
	Write an object to the OStream.
void	writeBoolean (String name, boolean b)
void	writeBooleanArray (String name, boolean[] b)
void	writeByte (String name, byte b, boolean sign)
void	writeByteArray (String name, byte[] b, boolean sign)
void	writeDouble (String name, double d)
void	writeDoubleArray (String name, double[] d)
void	writeFloat (String name, float f)
void	writeFloatArray (String name, float[] f)
void	writeInt (String name, int i, boolean sign)
void	writeIntArray (String name, int[] i, boolean sign)
void	writeShort (String name, short s, boolean sign)
void	writeShortArray (String name, short[] s, boolean sign)
void	writeString (String name, String s)
void	writeStringArray (String name, String[] s)
Sct.Serializable	readObject (String name) throws UnsupportedOperationException
	Read a Serializable using the back-end specific identifier.
Sct.Streamable	readObject (IStream s, String name) throws UnsupportedOperationException
	Read an object from an IStream.
Sct.Serializable	readObject (String uniqueID, String className) throws UnsupportedOperationException
	Read a Serializable with uniqueID and className as given.
Sct.Streamable	readObject (IStream s, String name, String className) throws UnsupportedOperationException
	Read an object from an IStream.
void	writeLong (String name, long i, boolean sign) throws java.io.IOException
void	writeLongArray (String name, long[] i, boolean sign) throws java.io.IOException
Protected Attributes
ArrayList	streamables = new ArrayList()
ArrayList	primitives = new ArrayList()
String	className
String	name
Package Functions
	StreamableRep (String name, Serializable ob)
	Used to implement lazy writing.
	StreamableRep (String name, Streamable ob)
int	getChildCount ()
Rep	getChild (int index)
Private Member Functions
void	writeChildren ()
Private Attributes
Streamable	object
boolean	written = false

---

Detailed Description

Definition at line 74 of file StreamableRep.java.

---

Member Function Documentation

Sct.Streamable GuiComponents.Inspector.StreamableRep.readObject (  IStream  s, String  name, String  className )  throws UnsupportedOperationException

Read an object from an IStream. This method should be used if the object was written with writeClassName = false. Creates the object from the IStream See also: Streamable documentation Parameters: s  the IStream being read from in the current context. name  the name of the object in the current context. Should match the name passed to writeObject. className  the name of a class capable of streaming in the object. Exceptions: IOException  if a problem occurs during IO Implements Sct.ObjectManager. Definition at line 229 of file StreamableRep.java.

Sct.Serializable GuiComponents.Inspector.StreamableRep.readObject (  String  uniqueID, String  className )  throws UnsupportedOperationException

Read a Serializable with uniqueID and className as given. Exceptions: IOException  if a problem occurs during IO Implements Sct.ObjectManager. Definition at line 225 of file StreamableRep.java.

Sct.Streamable GuiComponents.Inspector.StreamableRep.readObject (  IStream  s, String  name )  throws UnsupportedOperationException

Read an object from an IStream. This method should be used if the object was written with writeClassName = true. First reads the className from the stream. Creates the object from the IStream See also: Streamable documentation Parameters: s  the IStream being read from in the current context. name  the name of the object in the current context. Should match the name passed to writeObject. Exceptions: IOException  if a problem occurs during IO Implements Sct.ObjectManager. Definition at line 221 of file StreamableRep.java.

Sct.Serializable GuiComponents.Inspector.StreamableRep.readObject (  String  name  )  throws UnsupportedOperationException

Read a Serializable using the back-end specific identifier. Exceptions: IOException  if a problem occurs during IO Implements Sct.ObjectManager. Definition at line 217 of file StreamableRep.java.

void GuiComponents.Inspector.StreamableRep.writeObject (  OStream  s, String  name, Streamable  object, boolean  writeClassName )

Write an object to the OStream. Class object's write method. object may not be null. Causes a WriteAbortedException if it is. Parameters: s  the OStream being used (note, not guranteed to be passed to object's write method) name  the name of the object in the current context. writeClassName  if true the className will be written. Exceptions: IllegalArgumentException  if object is null IOException  if a problem occurs during IO Implements Sct.ObjectManager. Definition at line 151 of file StreamableRep.java.

Name GuiComponents.Inspector.StreamableRep.writeObject (  Serializable  object  )

Write a Serializable object. Todo: Should this take an extra back-end dependant parameter? Returns: a Name object that can be used to read the written object Exceptions: IOException  if a problem occurs during IO Implements Sct.ObjectManager. Definition at line 142 of file StreamableRep.java.

---

The documentation for this class was generated from the following file:

• StreamableRep.java

---
