Sct::IOName Class Reference

Name an object has when being streamed to or from e.g. More...

#include <IOName.h>

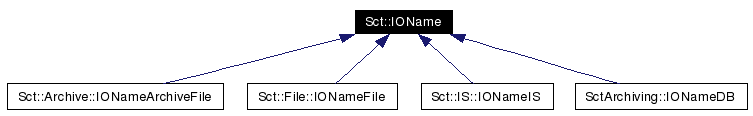

Inheritance diagram for Sct::IOName:

[legend]Collaboration diagram for Sct::IOName:

[legend]

Public Types
typedef std::list< shared_ptr< IOName > >::iterator	iterator
typedef std::list< shared_ptr< IOName > >::const_iterator	const_iterator
Public Member Functions
	IOName (const string &nameIO) throw (InvalidArgumentError)
	IOName (const UniqueID &uniqueID, const string &className) throw (InvalidArgumentError)
virtual	~IOName () throw ()
string	getIOName () const throw ()
UniqueID	getUniqueID () const throw ()
string	getClassName () const throw ()
virtual bool	wildcard () const
	return true if this name contains wildcards
iterator	begin ()
	iterator begin method
iterator	end ()
	iterator end method for wildcard
const_iterator	begin () const
	iterator const begin method for wildcard
const_iterator	end () const
	iterator const end method for wildcard
Protected Member Functions
virtual void	parse ()=0 throw (InvalidArgumentError)
	Must set uniqueID from nameIO.
virtual void	construct ()=0 throw ()
	Must set nameIO from uniqueID and className.
virtual void	expandWildcards ()
	expand all wildcards - to be over-written by sub-classes.
	IOName ()
Protected Attributes
UniqueID	uniqueID
string	className
string	nameIO
std::list< shared_ptr< IOName > >	m_list
bool	m_wildcardsExpanded

---

Detailed Description

Name an object has when being streamed to or from e.g.

IS or file. May contain wildcards in some cases - see derrived classes.

Definition at line 14 of file IOName.h.

---

Member Function Documentation

IOName::const_iterator Sct::IOName::begin (   )  const

iterator const begin method for wildcard Definition at line 36 of file IOName.cpp. References expandWildcards(), and m_list. Here is the call graph for this function:

IOName::iterator Sct::IOName::begin (   )

iterator begin method Definition at line 26 of file IOName.cpp. References expandWildcards(), and m_list. Here is the call graph for this function:

virtual void Sct::IOName::construct (   )  throw () [protected, pure virtual]

Must set nameIO from uniqueID and className. Implemented in SctArchiving::IONameDB, Sct::Archive::IONameArchiveFile, Sct::File::IONameFile, and Sct::IS::IONameIS.

IOName::const_iterator Sct::IOName::end (   )  const

iterator const end method for wildcard Definition at line 41 of file IOName.cpp. References expandWildcards(), and m_list. Here is the call graph for this function:

IOName::iterator Sct::IOName::end (   )

iterator end method for wildcard Definition at line 31 of file IOName.cpp. References expandWildcards(), and m_list. Here is the call graph for this function:

void Sct::IOName::expandWildcards (   )  [protected, virtual]

expand all wildcards - to be over-written by sub-classes. Reimplemented in Sct::Archive::IONameArchiveFile. Definition at line 50 of file IOName.cpp. Referenced by begin(), and end().

virtual void Sct::IOName::parse (   )  throw (InvalidArgumentError) [protected, pure virtual]

Must set uniqueID from nameIO. Exceptions: InvalidArgument  if this isn't possible. Implemented in SctArchiving::IONameDB, Sct::Archive::IONameArchiveFile, Sct::File::IONameFile, and Sct::IS::IONameIS.

bool Sct::IOName::wildcard (   )  const [virtual]

return true if this name contains wildcards Reimplemented in Sct::Archive::IONameArchiveFile. Definition at line 46 of file IOName.cpp.

---

The documentation for this class was generated from the following files:

• IOName.h
• IOName.cpp

---
