SctService::WorkerGroup< T > Class Template Reference

Control part of the observer/worker pattern. More...

#include <WorkerGroup.h>

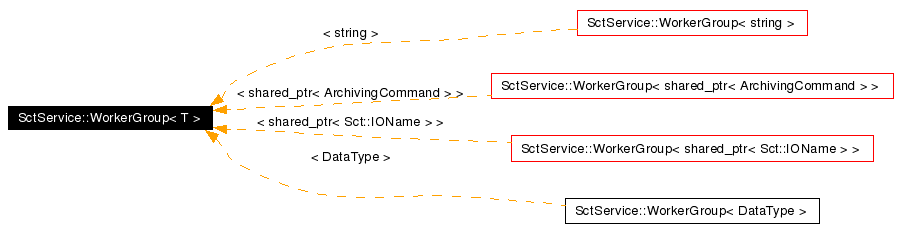

Inheritance diagram for SctService::WorkerGroup< T >:

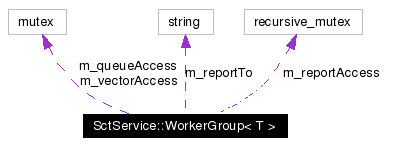

[legend]Collaboration diagram for SctService::WorkerGroup< T >:


Queue @{ the queue itself contains pointers to objects to be
worked on.
void	addTime (double t)
	timer watch
DataType	unlockedPopFrontOrBack ()
	gets from front or back of queue (no locking) depending on m_fifo
std::list< DataType >	m_queue
	timer watch
boost::thread_group	m_thread_group
	boost thread group from which threads can be created
volatile bool	m_run
	if false, threads are to stop.
volatile bool	m_pause
	does not execute work() if true
volatile unsigned	m_sleeptime
	time to sleep if queue is empty
std::string	m_reportTo
	name to report to IS
volatile int	m_reportInterval
	name to report to IS
boost::mutex	m_queueAccess
	queueLock
boost::mutex	m_vectorAccess
	vectorOfWorkersLock
boost::recursive_mutex	m_reportAccess
	vectorOfWorkersLock
volatile unsigned long	m_nDone
	count of number of jobs done
volatile double	m_time
	time taken working
bool	m_fifo
	FIFO if true, otherwise FILO.
class	Worker
	timer watch
class	Reporter
	timer watch
Public Types
typedef T	DataType
Public Member Functions
void	go (unsigned nWorker=1)
	Start this worker group.
unsigned	queueSize () const
	get the number of objects in the queue
unsigned	nWorkers () const
	get the number of workers in the map
unsigned long	nDone () const
	get the number of jobs done
unsigned	busy () const
	get the number of threads which are busy.
void	stop ()
	Raise flag to stop all worker threads.
void	setPaused (bool paused=true)
void	join ()
	Call this to make sure that Worker threads continue to completion.
unsigned	paused () const
	get the number of paused threads
void	setSleepTime (unsigned msec)
	Set sleep time for all workers, if no items are on the queue.
unsigned	getSleepTime () const
	Get the sleep time.
DataType	pop ()
void	push (DataType ob)
	Push an object onto the back of the queue.
void	setFifo (bool val)
bool	isFifo () const
virtual	~WorkerGroup ()
	destructor
	WorkerGroup ()
	Constructor.
void	reportTo (std::string isname)
	set name to report to IS as
void	reportInterval (int msec)
	set interval in msec between reports
Protected Types
typedef std::vector< Worker * >	WorkerStore
typedef WorkerStore::iterator	Iterator
typedef WorkerStore::const_iterator	ConstIterator
Protected Member Functions
virtual void	reportThreadMain (Reporter &reporter) throw ()
	thread which reports the progress of the workers to IS
virtual void	threadMain (Worker &worker) throw ()
	The threadMain method.
virtual bool	popAndWork (Worker &worker)
	If the queue length != 0, removes an element from the queue and class work.
virtual void	waitForData ()
	Called if there is no data on the queue.
virtual void	work (DataType data)=0 throw ()
	To be overriden! Should actually do something with the data!
void	wait (int msec)
	Causes this thread to sleep for msec milliseconds.
void	addWorker (Worker &worker)
	threadMain should call this with its parameter.
Protected Attributes
Worker thread information @{
This map allows each thread to access different particular information from its own Worker.
WorkerStore	m_workers
Data Structures
class	Reporter
	holds data used by the reporting thread More...
class	Worker
	Inner class to hold thread specific stuff. More...

Detailed Description

template<class T>
class SctService::WorkerGroup< T >

Control part of the observer/worker pattern.

Contains the queue to which objects of type T are pushed. Also useful functions to control and query the worker threads. The template class ``T'' is the data/instructions which the workers at to work on. Derive this class to implement/modify the behaviour of the worker threads. At the least, the work method needs an implementation. T must be DefaultConstructible For a simple example, see the test/MyWorkerGroup.h file

Definition at line 28 of file WorkerGroup.h.

Constructor & Destructor Documentation

template<class T>

virtual SctService::WorkerGroup< T >::~WorkerGroup ( ) [inline, virtual]

destructor

Definition at line 100 of file WorkerGroup.h.

template<class T>

SctService::WorkerGroup< T >::WorkerGroup ( ) [inline]

Constructor.

Definition at line 103 of file WorkerGroup.h.

Member Function Documentation

template<class W>

void SctService::WorkerGroup< W >::addTime ( double t ) [inline, protected]

timer watch

Definition at line 435 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::m_nDone, SctService::WorkerGroup< T >::m_reportAccess, and SctService::WorkerGroup< T >::m_time.
Referenced by SctService::WorkerGroup< T >::popAndWork().

template<class T>

void SctService::WorkerGroup< T >::addWorker ( Worker & worker ) [inline, protected]

threadMain should call this with its parameter.

Definition at line 302 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::m_vectorAccess, and SctService::WorkerGroup< T >::m_workers.

template<class W>

unsigned SctService::WorkerGroup< W >::busy ( ) const [inline]

get the number of threads which are busy.

Note:
for information only, not to be used in thread-control.

Definition at line 394 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::m_workers.
Referenced by SctFitter::Fitter::busy(), SctArchiving::Archiver::busy(), SctAnalysis::AnalysisService::busy(), SctArchiving::Archiver::getStatus(), SctFitter::Fitter::internal_status(), SctAnalysis::AnalysisService::queueLength(), and SctArchiving::Archiver::~Archiver().

template<class T>

unsigned SctService::WorkerGroup< T >::getSleepTime ( ) const [inline]

Get the sleep time.

Definition at line 78 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< T >::waitForData().

template<class T>

void SctService::WorkerGroup< T >::go ( unsigned nWorker = 1 ) [inline]

Start this worker group.

Parameters:

the number of worker threads to be started

Definition at line 226 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::m_thread_group.
Referenced by SctFitter::Fitter::go(), and SctAnalysis::AnalysisService::run().

template<class W>

void SctService::WorkerGroup< W >::join ( ) [inline]

Call this to make sure that Worker threads continue to completion.

Definition at line 375 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::m_thread_group.
Referenced by SctService::WorkerGroup< T >::stop().

template<class W>

unsigned long SctService::WorkerGroup< W >::nDone ( ) const [inline]

get the number of jobs done

Definition at line 359 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::m_nDone.

template<class W>

unsigned SctService::WorkerGroup< W >::nWorkers ( ) const [inline]

get the number of workers in the map

Definition at line 364 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::m_workers.
Referenced by SctFitter::Fitter::getAverageTimePerScan(), SctArchiving::Archiver::getStatus(), and SctFitter::Fitter::internal_status().

template<class W>

unsigned SctService::WorkerGroup< W >::paused ( ) const [inline]

get the number of paused threads

Definition at line 385 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::m_workers.

template<class W>

bool SctService::WorkerGroup< W >::popAndWork ( Worker & worker ) [inline, protected, virtual]

If the queue length != 0, removes an element from the queue and class work.

Returns:
false if the queue length is 0.

Definition at line 337 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::addTime(), SctService::WorkerGroup< T >::m_queue, SctService::WorkerGroup< T >::m_queueAccess, SctService::WorkerGroup< T >::Worker::setBusy(), SctService::WorkerGroup< T >::unlockedPopFrontOrBack(), and SctService::WorkerGroup< T >::work().
Here is the call graph for this function:

template<class T>

void SctService::WorkerGroup< T >::push ( DataType ob ) [inline]

Push an object onto the back of the queue.

Definition at line 308 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::m_queue, and SctService::WorkerGroup< T >::m_queueAccess.
Referenced by SctArchiving::Archiver::addCommand(), SctArchiving::Archiver::archiveISName(), SctFitter::Fitter::fitAll(), SctArchiving::Archiver::retrieveArchName(), and SctAnalysis::AnalysisService::scanResultCallback().

template<class W>

unsigned SctService::WorkerGroup< W >::queueSize ( ) const [inline]

get the number of objects in the queue

Note:
for information only, not to be used in thread-control.

Definition at line 354 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::m_queue.
Referenced by SctArchiving::Archiver::getStatus(), SctFitter::Fitter::internal_status(), SctFitter::Fitter::queueLength(), SctArchiving::Archiver::queueLength(), and SctArchiving::Archiver::~Archiver().

template<class T>

void SctService::WorkerGroup< T >::reportInterval ( int msec ) [inline]

set interval in msec between reports

Definition at line 427 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::m_reportAccess, and SctService::WorkerGroup< T >::m_reportInterval.

template<class T>

void SctService::WorkerGroup< T >::reportThreadMain ( Reporter & reporter ) throw () [inline, protected, virtual]

thread which reports the progress of the workers to IS

Definition at line 255 of file WorkerGroup.h.
References Sct::ISUtilities::addOrUpdateOrThrow(), and Sct::Throwable::sendToMrs().
Referenced by SctService::WorkerGroup< T >::Reporter::operator()().
Here is the call graph for this function:

template<class T>

void SctService::WorkerGroup< T >::reportTo ( std::string isname )

set name to report to IS as

Definition at line 421 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::m_reportAccess, and SctService::WorkerGroup< T >::m_reportTo.
Referenced by SctAnalysis::AnalysisService::AnalysisService(), and SctArchiving::Archiver::Archiver().

template<class W>

void SctService::WorkerGroup< W >::setSleepTime ( unsigned msec ) [inline]

Set sleep time for all workers, if no items are on the queue.

Parameters:

sleep time in msec

Definition at line 403 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::m_sleeptime.

template<class W>

void SctService::WorkerGroup< W >::stop ( ) [inline]

Raise flag to stop all worker threads.

Definition at line 369 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::join(), and SctService::WorkerGroup< T >::m_run.
Referenced by SctFitter::Fitter::shutdown(), and SctAnalysis::AnalysisService::shutdown().
Here is the call graph for this function:

template<class T>

void SctService::WorkerGroup< T >::threadMain ( Worker & worker ) throw () [inline, protected, virtual]

The threadMain method.
Can be overriden if sub-classes want to completly change the behaviour! Current implementation checks various flags for pausing, stopping etc, then calls popAndWork. If popAndWork returns false, then it calls waitForData
Definition at line 235 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< T >::Worker::operator()().

template<class T>

T SctService::WorkerGroup< T >::unlockedPopFrontOrBack ( ) [inline, protected]

gets from front or back of queue (no locking) depending on m_fifo

Definition at line 315 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::m_fifo, and SctService::WorkerGroup< T >::m_queue.
Referenced by SctService::WorkerGroup< T >::pop(), and SctService::WorkerGroup< T >::popAndWork().

template<class W>

void SctService::WorkerGroup< W >::wait ( int msec ) [inline, protected]

Causes this thread to sleep for msec milliseconds.

Definition at line 408 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< T >::waitForData().

template<class W>

void SctService::WorkerGroup< W >::waitForData ( ) [inline, protected, virtual]

Called if there is no data on the queue.
Calls wait in default implementation.
Definition at line 416 of file WorkerGroup.h.
References SctService::WorkerGroup< T >::getSleepTime(), and SctService::WorkerGroup< T >::wait().
Here is the call graph for this function:

template<class T>

virtual void SctService::WorkerGroup< T >::work ( DataType data ) throw () [protected, pure virtual]

To be overriden! Should actually do something with the data!

Implemented in SctFitter::FitterWorkerGroup.
Referenced by SctService::WorkerGroup< T >::popAndWork().

Friends And Related Function Documentation

template<class T>

friend class Reporter [friend]

timer watch

Definition at line 215 of file WorkerGroup.h.

template<class T>

friend class Worker [friend]

timer watch

Definition at line 214 of file WorkerGroup.h.

Field Documentation

template<class T>

bool SctService::WorkerGroup< T >::m_fifo [protected]

FIFO if true, otherwise FILO.

Definition at line 217 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< T >::isFifo(), SctService::WorkerGroup< T >::setFifo(), and SctService::WorkerGroup< T >::unlockedPopFrontOrBack().

template<class T>

volatile unsigned long SctService::WorkerGroup< T >::m_nDone [protected]

count of number of jobs done

Definition at line 212 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< T >::addTime(), and SctService::WorkerGroup< T >::nDone().

template<class T>

volatile bool SctService::WorkerGroup< T >::m_pause [protected]

does not execute work() if true

Definition at line 204 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< T >::setPaused().

template<class T>

std::list<DataType> SctService::WorkerGroup< T >::m_queue [protected]

timer watch

Definition at line 197 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< T >::popAndWork(), SctService::WorkerGroup< T >::push(), SctService::WorkerGroup< T >::queueSize(), and SctService::WorkerGroup< T >::unlockedPopFrontOrBack().

template<class T>

boost::mutex SctService::WorkerGroup< T >::m_queueAccess [mutable, protected]

queueLock

Definition at line 209 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< T >::isFifo(), SctService::WorkerGroup< T >::pop(), SctService::WorkerGroup< T >::popAndWork(), SctService::WorkerGroup< T >::push(), and SctService::WorkerGroup< T >::setFifo().

template<class T>

boost::recursive_mutex SctService::WorkerGroup< T >::m_reportAccess [mutable, protected]

vectorOfWorkersLock

Definition at line 211 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< T >::addTime(), SctService::WorkerGroup< T >::reportInterval(), and SctService::WorkerGroup< T >::reportTo().

template<class T>

volatile int SctService::WorkerGroup< T >::m_reportInterval [protected]

name to report to IS

Definition at line 207 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< T >::reportInterval().

template<class T>

std::string SctService::WorkerGroup< T >::m_reportTo [protected]

name to report to IS

Definition at line 206 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< T >::reportTo().

template<class T>

volatile bool SctService::WorkerGroup< T >::m_run [protected]

if false, threads are to stop.

Definition at line 203 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< T >::stop().

template<class T>

volatile unsigned SctService::WorkerGroup< T >::m_sleeptime [protected]

time to sleep if queue is empty

Definition at line 205 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< DataType >::getSleepTime(), and SctService::WorkerGroup< T >::setSleepTime().

template<class T>

boost::thread_group SctService::WorkerGroup< T >::m_thread_group [protected]

boost thread group from which threads can be created

Definition at line 201 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< T >::go(), and SctService::WorkerGroup< T >::join().

template<class T>

volatile double SctService::WorkerGroup< T >::m_time [protected]

time taken working

Definition at line 213 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< T >::addTime().

template<class T>

boost::mutex SctService::WorkerGroup< T >::m_vectorAccess [mutable, protected]

vectorOfWorkersLock

Definition at line 210 of file WorkerGroup.h.
Referenced by SctService::WorkerGroup< T >::addWorker().

The documentation for this class was generated from the following file:

WorkerGroup.h

Generated on Mon Feb 6 14:09:57 2006 for SCT DAQ/DCS Software - C++ by

1.4.6

SctService::WorkerGroup< T > Class Template Reference

Queue @{ the queue itself contains pointers to objects to be

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes
