SctData::TrimRangeTestResult Class Reference

Holds the results of the trim range test. More...

#include <TrimRangeTestResult.h>

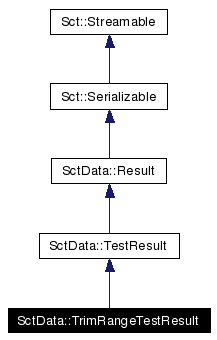

Inheritance diagram for SctData::TrimRangeTestResult:

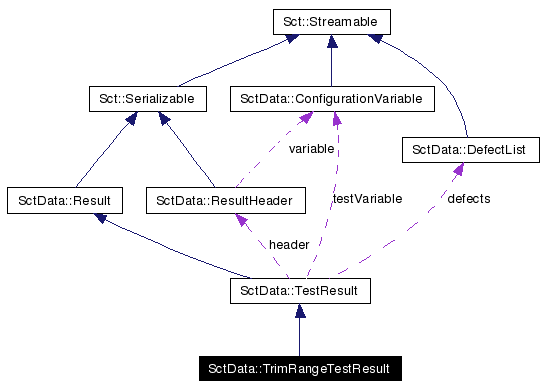

[legend]Collaboration diagram for SctData::TrimRangeTestResult:

[legend]

Public Member Functions
	TrimRangeTestResult () throw ()
	TrimRangeTestResult (unsigned int runNumber, const string &moduleName) throw ()
	Constructor.
virtual	~TrimRangeTestResult () throw ()
virtual string	getClassName () const throw ()
	Get the class name for this object.
Data Fields
std::vector< boost::shared_ptr< const ChipTrimData > >	chipTrimData
std::vector< boost::shared_ptr< const ChipTrim > >	chipTrim
float	charge
	injected charge
short signed	type
	range 0->3 or -1 for optimum
short unsigned	algorithm
	index indicates which chip-to-chip variations allowed in TrimRangeAlgorithm
Data Structures
class	ChipTrim
	The whole trim setting for a chip at a particular trim target. More...
class	ChipTrimData
	Represents all the data for a single chip and a single trim range. More...
class	Trim
	Represents the trim setting for an individual channel for a particular trim target. More...
class	TrimData
	Contains (representation of a) graph of TrimDAQ against target, and fitparameters, p0, and p1, such that trim=(int) p0 + target * p1. More...

---

Detailed Description

Holds the results of the trim range test.

Namely:

TrimRangeTestResult::ChipTrim objects, containing TrimRangeTestResult::Trim s for the best trim.
(each of which has the value of the trim, vthr and trim target).

TrimRangeTestResult::ChipTrimData objects, containing TrimRangeTestResult::TrimData s.
(each of which has a representation of the graph and fit to the trim vs vt50 graph.

Author:

Alan Barr

Date:

21 July 2003

Definition at line 24 of file TrimRangeTestResult.h.

---

Constructor & Destructor Documentation

SctData::TrimRangeTestResult::TrimRangeTestResult (  unsigned int  runNumber, const string &  moduleName )  throw ()

Constructor. Definition at line 18 of file TrimRangeTestResult.cpp.

---

Member Function Documentation

string SctData::TrimRangeTestResult::getClassName (   )  const throw () [virtual]

Get the class name for this object. This is used to identify the precise type. Returns: the class name Note: Nothrow Implements Sct::Streamable. Definition at line 11 of file TrimRangeTestResult.cpp.

---

Field Documentation

short unsigned SctData::TrimRangeTestResult::algorithm

index indicates which chip-to-chip variations allowed in TrimRangeAlgorithm Definition at line 120 of file TrimRangeTestResult.h. Referenced by TrimRangeCompare::compareChannel(), TrimRangeCompare::compareChip(), and SctData::TestSummary::TrimRangeSummaryWriter::write().

float SctData::TrimRangeTestResult::charge

injected charge Definition at line 118 of file TrimRangeTestResult.h. Referenced by TrimRangeCompare::compareChannel(), TrimRangeCompare::compareChip(), and SctData::TestSummary::TrimRangeSummaryWriter::write().

short signed SctData::TrimRangeTestResult::type

range 0->3 or -1 for optimum Definition at line 119 of file TrimRangeTestResult.h. Referenced by TrimRangeCompare::compareChannel(), TrimRangeCompare::compareChip(), and SctData::TestSummary::TrimRangeSummaryWriter::write().

---

The documentation for this class was generated from the following files:

• TrimRangeTestResult.h
• TrimRangeTestResult.cpp

---
