SctData::TopHatFitObject Class Reference

A fit function designed for use in, for example, the strobe-delay scan. More...

#include <TopHatFitObject.h>

Inheritance diagram for SctData::TopHatFitObject:

[legend]Collaboration diagram for SctData::TopHatFitObject:

[legend]

Public Member Functions
	TopHatFitObject ()
	Default Constructor.
	TopHatFitObject (const TF1 &rootfunc)
	Constructor from root function.
virtual shared_ptr< FitObject >	clone () const throw ()
	Allows any sub-class of FitObject to be used as a prototype.
virtual	~TopHatFitObject () throw ()
	destructor does nothing
virtual string	getClassName () const throw ()
	Get the class name for this object.
TopHatFitObject &	operator= (const TF1 &rootfunc) throw (LogicError)
	Equality with ROOT TF1.
Protected Member Functions
std::auto_ptr< TF1 >	makeBasicRootTF1 () const throw (LogicError)
	call the correct TF1 constructor when making a ROOT TF1
Static Private Member Functions
static std::vector< std::string >	createParNames ()
	file static method to create vector of parameter names
Static Private Attributes
static std::vector< std::string >	parNames

---

Detailed Description

A fit function designed for use in, for example, the strobe-delay scan.

A derrived class of FitObject Really just the product of an Erf and a Erfc function, so that the resolution on the leading and trailing edges can be different.

Author:

Alan Barr

Date:

16 Jan 2003

Definition at line 18 of file TopHatFitObject.h.

---

Constructor & Destructor Documentation

SctData::TopHatFitObject::TopHatFitObject (   )

Default Constructor. Definition at line 28 of file TopHatFitObject.cpp. Referenced by clone().

SctData::TopHatFitObject::TopHatFitObject (  const TF1 &  rootfunc  )

Constructor from root function. Definition at line 31 of file TopHatFitObject.cpp.

virtual SctData::TopHatFitObject::~TopHatFitObject (   )  throw () [inline, virtual]

destructor does nothing Definition at line 29 of file TopHatFitObject.h.

---

Member Function Documentation

shared_ptr< FitObject > SctData::TopHatFitObject::clone (   )  const throw () [virtual]

Allows any sub-class of FitObject to be used as a prototype. Returns: a new FitObject of the appropriate type which is a copy of this. Implements SctData::FitObject. Definition at line 34 of file TopHatFitObject.cpp. References TopHatFitObject(). Here is the call graph for this function:

vector< string > SctData::TopHatFitObject::createParNames (   )  [static, private]

file static method to create vector of parameter names Definition at line 16 of file TopHatFitObject.cpp. References parNames.

virtual string SctData::TopHatFitObject::getClassName (   )  const throw () [inline, virtual]

Get the class name for this object. This is used to identify the precise type. Returns: the class name Note: Nothrow Implements Sct::Streamable. Definition at line 31 of file TopHatFitObject.h.

auto_ptr< TF1 > SctData::TopHatFitObject::makeBasicRootTF1 (   )  const throw (LogicError) [protected, virtual]

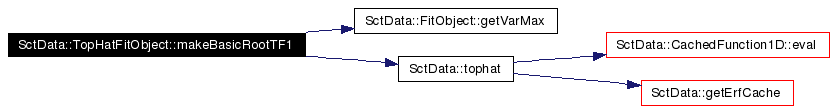

call the correct TF1 constructor when making a ROOT TF1 Implements SctData::FitObject. Definition at line 45 of file TopHatFitObject.cpp. References SctData::FitObject::getVarMax(), and SctData::tophat(). Here is the call graph for this function:

TopHatFitObject & SctData::TopHatFitObject::operator= (  const TF1 &  rootfunc  )  throw (LogicError)

Equality with ROOT TF1. Reimplemented from SctData::FitObject. Definition at line 38 of file TopHatFitObject.cpp. References SctData::FitObject::operator=(). Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• TopHatFitObject.h
• TopHatFitObject.cpp

---
