SctData::OccupancyProjector Class Reference

Altorithms for projecting TH1 occupancy histograms out of a RawScanResult. More...

#include <OccupancyProjector.h>

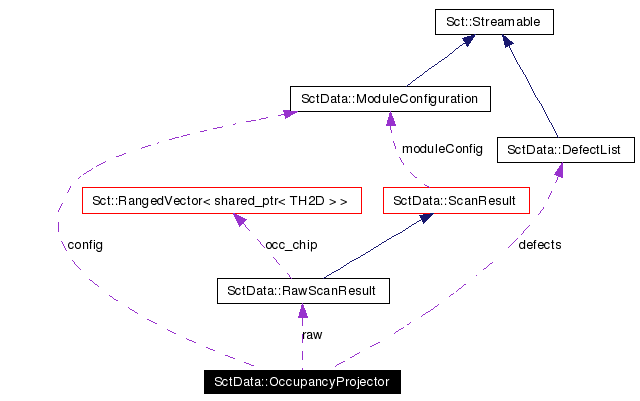

Collaboration diagram for SctData::OccupancyProjector:

[legend]

Public Member Functions
	OccupancyProjector (const RawScanResult &r) throw ()
	Make a default projector (no vetos) with a reference to a particular RawScanResult;.
	~OccupancyProjector () throw ()
	destructor
std::auto_ptr< TH1 >	getOccupancy (const char *name, const ModuleElement &element) const throw (LogicError)
	Utility function that gets a general occupancy hist.
void	vetoMaskedChannels (const ModuleConfiguration &) throw ()
	veto masked channels.
void	vetoAllDefects (const DefectList &) throw ()
	veto all defective channels.
void	vetoSeriousDefects (const DefectList &) throw ()
	veto all "seriously defective" channels.
void	unsetVetos () throw ()
	switch off all vetos
Private Member Functions
	OccupancyProjector () throw ()
Private Attributes
bool	m_vetoAllDefects
const RawScanResult *	raw
const ModuleConfiguration *	config
const DefectList *	defects

---

Detailed Description

Altorithms for projecting TH1 occupancy histograms out of a RawScanResult.

Allow skipping of masked/defective channels.

Definition at line 18 of file OccupancyProjector.h.

---

Constructor & Destructor Documentation

SctData::OccupancyProjector::OccupancyProjector (  const RawScanResult &  r  )  throw ()

Make a default projector (no vetos) with a reference to a particular RawScanResult;. Definition at line 20 of file OccupancyProjector.cpp.

SctData::OccupancyProjector::~OccupancyProjector (   )  throw ()

destructor Definition at line 24 of file OccupancyProjector.cpp.

---

Member Function Documentation

auto_ptr< TH1 > SctData::OccupancyProjector::getOccupancy (  const char *  name, const ModuleElement &  element )  const throw (LogicError)

Utility function that gets a general occupancy hist. Returns: a pointer to the new TH1D containing the occupancy. Parameters: the  name of the histogram the  ModuleElement for which the occupancy is required. Definition at line 40 of file OccupancyProjector.cpp. Referenced by SctAnalysis::NoiseOccupancyAlgorithm::analyzeChip(), SctDataDisplay::RawDisplayer::displayProjs(), and SctFitter::FitAlgorithm::doFit().

void SctData::OccupancyProjector::unsetVetos (   )  throw ()

switch off all vetos Definition at line 36 of file OccupancyProjector.cpp. References config, defects, and m_vetoAllDefects. Referenced by OccupancyProjector().

void SctData::OccupancyProjector::vetoAllDefects (  const DefectList &   )  throw ()

veto all defective channels. Parameters: ModuleDefectList  Definition at line 26 of file OccupancyProjector.cpp.

void SctData::OccupancyProjector::vetoMaskedChannels (  const ModuleConfiguration &   )  throw ()

veto masked channels. Parameters: ModuleConfiguration  containing the mask. Definition at line 33 of file OccupancyProjector.cpp.

void SctData::OccupancyProjector::vetoSeriousDefects (  const DefectList &   )  throw ()

veto all "seriously defective" channels. Parameters: ModuleDefectList  Definition at line 29 of file OccupancyProjector.cpp.

---

The documentation for this class was generated from the following files:

• OccupancyProjector.h
• OccupancyProjector.cpp

---
