SctData::IO::TGraphStreamer_v1 Class Reference

Allows serialization of root TGraph object to IS. More...

#include <TGraphStreamer_v1.h>

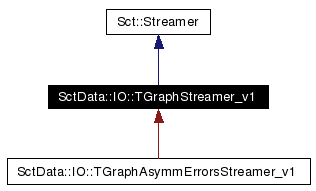

Inheritance diagram for SctData::IO::TGraphStreamer_v1:

[legend]Collaboration diagram for SctData::IO::TGraphStreamer_v1:

[legend]

Public Member Functions
virtual void	write (OStream &out, const Streamable &ob, const IOManager &manager) const throw (LogicError, IoError)
	Publishes ob to out.
virtual shared_ptr< Streamable >	read (IStream &in, const IOManager &manager) const throw (LogicError, IoError)
	Create a new Streamable object of the appropriate type from IS.
virtual void	read (IStream &in, Streamable &ob, const IOManager &manager) const throw (LogicError, IoError)
	Refreshes ob from in.
virtual unsigned	getVersion () const throw ()
Protected Member Functions
	TGraphStreamer_v1 () throw ()
	Protected constructor.
Static Private Attributes
static unsigned	s_version
static bool	inMap

---

Detailed Description

Allows serialization of root TGraph object to IS.

Definition at line 18 of file TGraphStreamer_v1.h.

---

Constructor & Destructor Documentation

SctData::IO::TGraphStreamer_v1::TGraphStreamer_v1 (   )  throw () [protected]

Protected constructor. Definition at line 17 of file TGraphStreamer_v1.cpp.

---

Member Function Documentation

void SctData::IO::TGraphStreamer_v1::read (  IStream &  in, Streamable &  ob, const IOManager &  manager )  const throw (LogicError, IoError) [virtual]

Refreshes ob from in. Parameters: in  The IStream ob  The Streamable object to be refreshed. manager  the IOManager to use Exceptions: IoException  if something bad happens Implements Sct::Streamer. Reimplemented in SctData::IO::TGraphAsymmErrorsStreamer_v1. Definition at line 33 of file TGraphStreamer_v1.cpp. References SctData::RootStreamableAdapter::getObject(), and SctData::ob. Here is the call graph for this function:

shared_ptr< Streamable > SctData::IO::TGraphStreamer_v1::read (  IStream &  in, const IOManager &  manager )  const throw (LogicError, IoError) [virtual]

Create a new Streamable object of the appropriate type from IS. Parameters: in  The IStream. manager  the IOManager to use Returns: a new Streamable object Exceptions: IoException  if something bad happens Implements Sct::Streamer. Reimplemented in SctData::IO::TGraphAsymmErrorsStreamer_v1. Definition at line 27 of file TGraphStreamer_v1.cpp.

void SctData::IO::TGraphStreamer_v1::write (  OStream &  out, const Streamable &  ob, const IOManager &  manager )  const throw (LogicError, IoError) [virtual]

Publishes ob to out. Parameters: out  The OStream. ob  The Streamable object to stream. manager  the IOManager to use Exceptions: IoException  if something bad happens Implements Sct::Streamer. Reimplemented in SctData::IO::TGraphAsymmErrorsStreamer_v1. Definition at line 19 of file TGraphStreamer_v1.cpp. References SctData::RootStreamableAdapter::getObject(), and SctData::ob. Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• TGraphStreamer_v1.h
• TGraphStreamer_v1.cpp

---
