SctData::IO::FullBypassTestResultStreamer_v1

SctData::IO::FullBypassTestResultStreamer_v1 Class Reference

This class allows publishing and refreshing of FullBypassTestResult objects. More...

#include <FullBypassTestResultStreamer_v1.h>

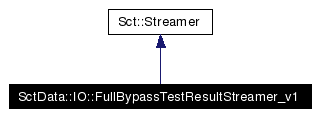

Inheritance diagram for SctData::IO::FullBypassTestResultStreamer_v1:

Inheritance graph
[legend]
Collaboration diagram for SctData::IO::FullBypassTestResultStreamer_v1:

Collaboration graph
[legend]

Public Member Functions

virtual void write (OStream &out, const Streamable &ob, const IOManager &manager) const throw (LogicError, IoError)
 Publishes ob to out.
virtual shared_ptr< Streamable > read (IStream &in, const IOManager &manager) const throw (LogicError, IoError)
 Create a new Streamable object of the appropriate type from IS.
virtual void read (IStream &in, Streamable &ob, const IOManager &manager) const throw (LogicError, IoError)
 Refreshes ob from in.
void writeChipResult (OStream &out, const FullBypassTestResult::ChipFBResult &, const IOManager &manager) const throw (LogicError, IoError)
void readChipResult (IStream &in, FullBypassTestResult::ChipFBResult &, const IOManager &manager) const throw (LogicError, IoError)
virtual unsigned getVersion () const throw ()

Private Member Functions

 FullBypassTestResultStreamer_v1 () throw ()

Static Private Attributes

static unsigned s_version
static bool inMap

Detailed Description

This class allows publishing and refreshing of FullBypassTestResult objects.

Definition at line 15 of file FullBypassTestResultStreamer_v1.h.

Member Function Documentation

void SctData::IO::FullBypassTestResultStreamer_v1::read (  IStream &  in,
Streamable &  ob,
const IOManager &  manager
)  const throw (LogicError, IoError) [virtual]


Refreshes ob from in.

Parameters:
in The IStream
ob The Streamable object to be refreshed.
manager the IOManager to use
Exceptions:
IoException if something bad happens

Implements Sct::Streamer.

Definition at line 35 of file FullBypassTestResultStreamer_v1.cpp.

References SctData::FullBypassTestResult::getChipResult(), Sct::nChipModule, SctData::ob, SctData::FullBypassTestResult::setNConfig(), and SctData::FullBypassTestResult::setVddNom().

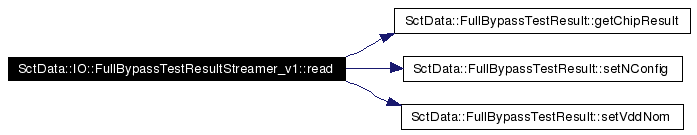

Here is the call graph for this function:

shared_ptr< Streamable > SctData::IO::FullBypassTestResultStreamer_v1::read (  IStream &  in,
const IOManager &  manager
)  const throw (LogicError, IoError) [virtual]


Create a new Streamable object of the appropriate type from IS.

Parameters:
in The IStream.
manager the IOManager to use
Returns:
a new Streamable object
Exceptions:
IoException if something bad happens

Implements Sct::Streamer.

Definition at line 15 of file FullBypassTestResultStreamer_v1.cpp.

void SctData::IO::FullBypassTestResultStreamer_v1::write (  OStream &  out,
const Streamable &  ob,
const IOManager &  manager
)  const throw (LogicError, IoError) [virtual]


Publishes ob to out.

Parameters:
out The OStream.
ob The Streamable object to stream.
manager the IOManager to use
Exceptions:
IoException if something bad happens

Implements Sct::Streamer.

Definition at line 21 of file FullBypassTestResultStreamer_v1.cpp.

References SctData::FullBypassTestResult::getChipResult(), SctData::FullBypassTestResult::getNConfig(), SctData::FullBypassTestResult::getVddNom(), Sct::nChipModule, and SctData::ob.

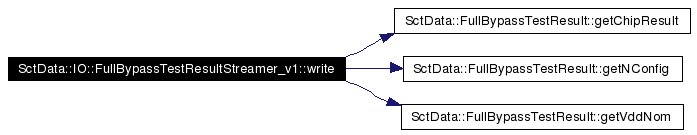

Here is the call graph for this function:

The documentation for this class was generated from the following files:
