SctAnalysis::AnalysisAlgorithm Class Reference

An abstract base class for all the analysis algorithms. More...

#include <AnalysisAlgorithm.h>

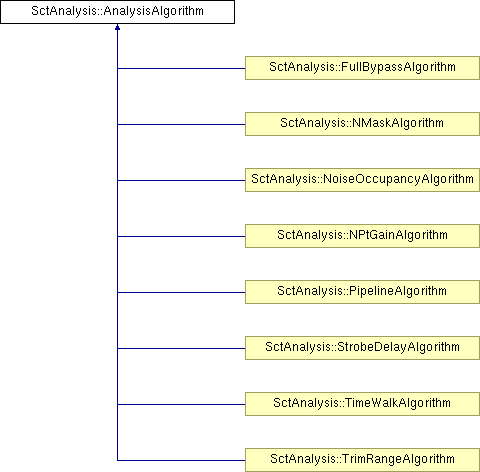

Inheritance diagram for SctAnalysis::AnalysisAlgorithm:


Public Member Functions
	AnalysisAlgorithm (const TestData &testData, const string &moduleName) throw ()
	Default constructor, to be used in creation of map.
virtual	~AnalysisAlgorithm () throw ()
	Destructor.
const TestData &	getTestData () const throw ()
	get a pointer to the cached TestData;
const std::string	getModuleName () const throw ()
	Get the name of the module which this algorithm is working on.
virtual boost::shared_ptr< AnalysisAlgorithm >	clone (const TestData &testData, const string &moduleName) const=0 throw ()
	Must be overridden by sub-classes.
virtual void	canAddFitScanResult (const std::string &name) throw (Sct::LogicError, Sct::IoError)
	Notify algorithm that it may add a named FitScanResult to this TestResult.
virtual void	canAddRawScanResult (const std::string &name) throw (Sct::LogicError, Sct::IoError)
	Notify algorithm that it may add a named RawScanResult to this TestResult.
bool	isDone () const throw ()
	Method indicates when a particular analysis is finished.
boost::shared_ptr< SctData::TestResult >	getTestResult () const
	Access to the TestResult if required.
boost::recursive_mutex &	getMutex () const
	Access the mutex.
Protected Member Functions
void	setTestResult (boost::shared_ptr< SctData::TestResult > testresult)
	Allows concrete classes to set the TestResult member after they create one of the appropriate type.
void	checkTestResultExists () const throw (Sct::LogicError)
	Used by other methods to ensure that a TestResult has been made.
void	addFit (const std::string &name) throw (Sct::LogicError, Sct::IoError)
	Convenience method can called by derived class when notification is given that a new FitScanResult is available.
void	addRaw (const std::string &name) throw (Sct::LogicError, Sct::IoError)
	Convenience method can called by derived class when notification is given that a new RawScanResult is available.
void	initializeTestResult () throw (Sct::LogicError)
	Useful function that initializes TestResult from Test and module name.
void	finish () throw (Sct::IoError, Sct::LogicError)
	Method callable by published the TestResult, and sets `done'.
	AnalysisAlgorithm ()
Private Attributes
const std::string	m_modulename
	name of the module being worked on.
boost::shared_ptr< SctData::TestResult >	m_result
	pointer to the result. Note: it is up to the Concrete class to make one!
const TestData &	m_test
	pointer to the testdata.
bool	m_done
	true if finish() has been called.
boost::recursive_mutex	m_access
	access to the algorithm can be locked for thread-safeness.

Detailed Description

An abstract base class for all the analysis algorithms.

Author:: Matthew Palmer

Date:: 11 June 2003

Definition at line 24 of file AnalysisAlgorithm.h.

Constructor & Destructor Documentation

SctAnalysis::AnalysisAlgorithm::AnalysisAlgorithm ( const TestData & testData,

const string & moduleName

) throw () [inline]

Default constructor, to be used in creation of map.

Definition at line 29 of file AnalysisAlgorithm.h.

SctAnalysis::AnalysisAlgorithm::~AnalysisAlgorithm ( ) throw () [virtual]

Destructor.

Definition at line 22 of file AnalysisAlgorithm.cpp.

SctAnalysis::AnalysisAlgorithm::AnalysisAlgorithm ( ) [protected]

Definition at line 20 of file AnalysisAlgorithm.cpp.

Member Function Documentation

void SctAnalysis::AnalysisAlgorithm::addFit ( const std::string & name ) throw (Sct::LogicError, Sct::IoError) [protected]

Convenience method can called by derived class when notification is given that a new FitScanResult is available.

Definition at line 48 of file AnalysisAlgorithm.cpp.
References Sct::IS::IOManagerIS::instance().

void SctAnalysis::AnalysisAlgorithm::addRaw ( const std::string & name ) throw (Sct::LogicError, Sct::IoError) [protected]

Convenience method can called by derived class when notification is given that a new RawScanResult is available.

Definition at line 59 of file AnalysisAlgorithm.cpp.
References Sct::IS::IOManagerIS::instance().

virtual void SctAnalysis::AnalysisAlgorithm::canAddFitScanResult ( const std::string & name ) throw (Sct::LogicError, Sct::IoError) [inline, virtual]

Notify algorithm that it may add a named FitScanResult to this TestResult.
Default is to do nothing, but concrete classes should react as they see fit!
Parameters:

name the IS name of the FitScanResult.

t the test result to add it to.

Definition at line 56 of file AnalysisAlgorithm.h.

virtual void SctAnalysis::AnalysisAlgorithm::canAddRawScanResult ( const std::string & name ) throw (Sct::LogicError, Sct::IoError) [inline, virtual]

Notify algorithm that it may add a named RawScanResult to this TestResult.
Default is to do nothing, but concrete classes can react as they see fit!
Parameters:

name the IS name of the RawScanResult.

t the test result to add it to.

Definition at line 63 of file AnalysisAlgorithm.h.

void SctAnalysis::AnalysisAlgorithm::checkTestResultExists ( ) const throw (Sct::LogicError) [protected]

Used by other methods to ensure that a TestResult has been made.

Exceptions:

LogicError if TestResult member is not initialised.

Definition at line 28 of file AnalysisAlgorithm.cpp.

virtual boost::shared_ptr<AnalysisAlgorithm> SctAnalysis::AnalysisAlgorithm::clone ( const TestData & testData,

const string & moduleName

) const throw () [pure virtual]

Must be overridden by sub-classes.
Returns a shared pointer to a concrete AnalysisAlgorithm of the correct type. Primarily used by the map to get an AnalysisAlgorithm of the correct type.
Implemented in SctAnalysis::FullBypassAlgorithm, SctAnalysis::NMaskAlgorithm, SctAnalysis::NoiseOccupancyAlgorithm, SctAnalysis::NPtGainAlgorithm, SctAnalysis::PipelineAlgorithm, SctAnalysis::StrobeDelayAlgorithm, SctAnalysis::TimeWalkAlgorithm, and SctAnalysis::TrimRangeAlgorithm.

void SctAnalysis::AnalysisAlgorithm::finish ( ) throw (Sct::IoError, Sct::LogicError) [protected]

Method callable by published the TestResult, and sets `done'.

Definition at line 70 of file AnalysisAlgorithm.cpp.
References TestSummaryIS::dataString, SctData::TestSummary::SummaryManager::instance(), and Sct::IS::IOManagerIS::instance().

const std::string SctAnalysis::AnalysisAlgorithm::getModuleName ( ) const throw () [inline]

Get the name of the module which this algorithm is working on.

Definition at line 43 of file AnalysisAlgorithm.h.
References m_modulename.

boost::recursive_mutex& SctAnalysis::AnalysisAlgorithm::getMutex ( ) const [inline]

Access the mutex.

Definition at line 76 of file AnalysisAlgorithm.h.
References m_access.

const TestData& SctAnalysis::AnalysisAlgorithm::getTestData ( ) const throw () [inline]

get a pointer to the cached TestData;

Definition at line 38 of file AnalysisAlgorithm.h.
References m_test.

boost::shared_ptr<SctData::TestResult> SctAnalysis::AnalysisAlgorithm::getTestResult ( ) const [inline]

Access to the TestResult if required.

Definition at line 71 of file AnalysisAlgorithm.h.
References m_result.

void SctAnalysis::AnalysisAlgorithm::initializeTestResult ( ) throw (Sct::LogicError) [protected]

Useful function that initializes TestResult from Test and module name.

Note:
TestResult must have been created first!

Definition at line 34 of file AnalysisAlgorithm.cpp.

bool SctAnalysis::AnalysisAlgorithm::isDone ( ) const throw () [inline]

Method indicates when a particular analysis is finished.

Definition at line 67 of file AnalysisAlgorithm.h.
References m_done.

void SctAnalysis::AnalysisAlgorithm::setTestResult ( boost::shared_ptr< SctData::TestResult > testresult ) [inline, protected]

Allows concrete classes to set the TestResult member after they create one of the appropriate type.

Definition at line 82 of file AnalysisAlgorithm.h.
References m_result.

Field Documentation

boost::recursive_mutex SctAnalysis::AnalysisAlgorithm::m_access [mutable, private]

access to the algorithm can be locked for thread-safeness.

Definition at line 115 of file AnalysisAlgorithm.h.
Referenced by getMutex().

bool SctAnalysis::AnalysisAlgorithm::m_done [private]

true if finish() has been called.

Definition at line 114 of file AnalysisAlgorithm.h.
Referenced by isDone().

const std::string SctAnalysis::AnalysisAlgorithm::m_modulename [private]

name of the module being worked on.

Definition at line 111 of file AnalysisAlgorithm.h.
Referenced by getModuleName().

boost::shared_ptr<SctData::TestResult> SctAnalysis::AnalysisAlgorithm::m_result [private]

pointer to the result.
Note:
it is up to the Concrete class to make one!

Definition at line 112 of file AnalysisAlgorithm.h.
Referenced by getTestResult(), and setTestResult().

const TestData& SctAnalysis::AnalysisAlgorithm::m_test [private]

pointer to the testdata.

Definition at line 113 of file AnalysisAlgorithm.h.
Referenced by getTestData().

The documentation for this class was generated from the following files:
