SctData::StandardDefects Class Reference

This is a holder class for all the DefectPrototype objects that are used. More...

#include <StandardDefects.h>

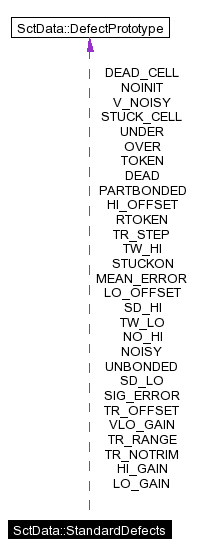

Collaboration diagram for SctData::StandardDefects:

[legend]

Static Public Attributes
Fit Defects
const DefectPrototype	DEAD
	Output always v small.
const DefectPrototype	STUCKON
	Output always v high.
const DefectPrototype	OVER
	Occupancy larger than max.
const DefectPrototype	UNDER
	Occupancy never reaches mas.
const DefectPrototype	NOINIT
	Couldn't initialize the fit.
Strobe Delay Defects
const DefectPrototype	SD_LO
	Low edge is not between 0 and 35.
const DefectPrototype	SD_HI
	Low edge is above 63.
NPt Gain Defects
const DefectPrototype	VLO_GAIN
	Gain < 0.3 * chip average.
const DefectPrototype	LO_GAIN
	Gain < 0.75 * chip average.
const DefectPrototype	HI_GAIN
	Gain > 1.25 * chip average.
const DefectPrototype	LO_OFFSET
	Offset < -100.
const DefectPrototype	HI_OFFSET
	Offset > 120.
const DefectPrototype	UNBONDED
	Noise <= 750.
const DefectPrototype	PARTBONDED
	Noise <= 1100.
const DefectPrototype	NOISY
	Noise > 1.15* av chip noise.
const DefectPrototype	V_NOISY
	Noise > 1.25* av chip noise.
Trim Defects
const DefectPrototype	TR_RANGE
	Unexpected chip trim step size.
const DefectPrototype	TR_STEP
	Channel step different from chip.
const DefectPrototype	TR_OFFSET
	Channel offset different from chip.
const DefectPrototype	TR_NOTRIM
	Untrimmable channel.
const DefectPrototype	NO_HI
	Other defects.
const DefectPrototype	MEAN_ERROR
	high noise occupancy
const DefectPrototype	SIG_ERROR
	Other defects.
const DefectPrototype	STUCK_CELL
	pipeline
const DefectPrototype	DEAD_CELL
	pipeline
const DefectPrototype	TOKEN
	full bypass token
const DefectPrototype	RTOKEN
	full bypass token
const DefectPrototype	TW_HI
	time walk too big
const DefectPrototype	TW_LO
	time walk too small

---

Detailed Description

This is a holder class for all the DefectPrototype objects that are used.

Author:

Matthew Palmer

Definition at line 13 of file StandardDefects.h.

---

Field Documentation

const DefectPrototype SctData::StandardDefects::DEAD [static]

Output always v small.

const DefectPrototype SctData::StandardDefects::DEAD_CELL [static]

pipeline

const DefectPrototype SctData::StandardDefects::HI_GAIN [static]

Gain > 1.25 * chip average.

const DefectPrototype SctData::StandardDefects::HI_OFFSET [static]

Offset > 120.

const DefectPrototype SctData::StandardDefects::LO_GAIN [static]

Gain < 0.75 * chip average.

const DefectPrototype SctData::StandardDefects::LO_OFFSET [static]

Offset < -100.

const DefectPrototype SctData::StandardDefects::MEAN_ERROR [static]

high noise occupancy

const DefectPrototype SctData::StandardDefects::NO_HI [static]

Other defects.

const DefectPrototype SctData::StandardDefects::NOINIT [static]

Couldn't initialize the fit.

const DefectPrototype SctData::StandardDefects::NOISY [static]

Noise > 1.15* av chip noise.

const DefectPrototype SctData::StandardDefects::OVER [static]

Occupancy larger than max.

const DefectPrototype SctData::StandardDefects::PARTBONDED [static]

Noise <= 1100.

const DefectPrototype SctData::StandardDefects::RTOKEN [static]

full bypass token

const DefectPrototype SctData::StandardDefects::SD_HI [static]

Low edge is above 63.

const DefectPrototype SctData::StandardDefects::SD_LO [static]

Low edge is not between 0 and 35.

const DefectPrototype SctData::StandardDefects::SIG_ERROR [static]

Other defects.

const DefectPrototype SctData::StandardDefects::STUCK_CELL [static]

pipeline

const DefectPrototype SctData::StandardDefects::STUCKON [static]

Output always v high.

const DefectPrototype SctData::StandardDefects::TOKEN [static]

full bypass token

const DefectPrototype SctData::StandardDefects::TR_NOTRIM [static]

Untrimmable channel.

const DefectPrototype SctData::StandardDefects::TR_OFFSET [static]

Channel offset different from chip.

const DefectPrototype SctData::StandardDefects::TR_RANGE [static]

Unexpected chip trim step size.

const DefectPrototype SctData::StandardDefects::TR_STEP [static]

Channel step different from chip.

const DefectPrototype SctData::StandardDefects::TW_HI [static]

time walk too big

const DefectPrototype SctData::StandardDefects::TW_LO [static]

time walk too small

const DefectPrototype SctData::StandardDefects::UNBONDED [static]

Noise <= 750.

const DefectPrototype SctData::StandardDefects::UNDER [static]

Occupancy never reaches mas.

const DefectPrototype SctData::StandardDefects::V_NOISY [static]

Noise > 1.25* av chip noise.

const DefectPrototype SctData::StandardDefects::VLO_GAIN [static]

Gain < 0.3 * chip average.

---

The documentation for this class was generated from the following files:

• StandardDefects.h
• StandardDefects.cpp

---
