SctData::IO::SingleVariableTestResultStreamer_v2 Class Reference

This class allows publishing and refreshing of SingleVariableTestResult objects to and from IS. More...

#include <SingleVariableTestResultStreamer_v2.h>

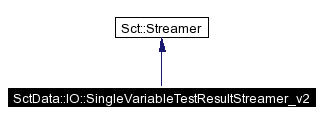

Inheritance diagram for SctData::IO::SingleVariableTestResultStreamer_v2:

[legend]Collaboration diagram for SctData::IO::SingleVariableTestResultStreamer_v2:

[legend]

Public Member Functions
virtual void	write (OStream &out, const Streamable &ob, const IOManager &manager) const throw (LogicError, IoError)
	Publishes ob to out.
virtual shared_ptr< Streamable >	read (IStream &in, const IOManager &manager) const throw (LogicError, IoError)
	Create a new Streamable object of the appropriate type from IS.
virtual void	read (IStream &in, Streamable &ob, const IOManager &manager) const throw (LogicError, IoError)
	Refreshes ob from in.
virtual unsigned	getVersion () const throw ()
Private Member Functions
	SingleVariableTestResultStreamer_v2 () throw ()
	Constructor is private.
Static Private Attributes
unsigned	s_version
bool	inMap
	The static dummy variable for the IOManager map.

---

Detailed Description

This class allows publishing and refreshing of SingleVariableTestResult objects to and from IS.

The published and refreshed elements are: -> The fraction of the distance from the leading edge to the falling edge with which the optima were found. -> the (usually 12 - 1 per chip) opimum values found by the analysis.

Definition at line 16 of file SingleVariableTestResultStreamer_v2.h.

---

Constructor & Destructor Documentation

SctData::IO::SingleVariableTestResultStreamer_v2::SingleVariableTestResultStreamer_v2 (   )  throw () [private]

Constructor is private. Definition at line 13 of file SingleVariableTestResultStreamer_v2.cpp.

---

Member Function Documentation

void SctData::IO::SingleVariableTestResultStreamer_v2::read (  IStream &  in, Streamable &  ob, const IOManager &  manager )  const throw (LogicError, IoError) [virtual]

Refreshes ob from in. Parameters: in  The IStream ob  The Streamable object to be refreshed. manager  the IOManager to use Exceptions: IoException  if something bad happens Implements Sct::Streamer. Definition at line 35 of file SingleVariableTestResultStreamer_v2.cpp. References Sct::IoError, SctData::SingleVariableTestResult::setNOptima(), and SctData::SingleVariableTestResult::setOptimum().

Here is the call graph for this function:

shared_ptr< Streamable > SctData::IO::SingleVariableTestResultStreamer_v2::read (  IStream &  in, const IOManager &  manager )  const throw (LogicError, IoError) [virtual]

Create a new Streamable object of the appropriate type from IS. Parameters: in  The IStream. manager  the IOManager to use Returns: a new Streamable object Exceptions: IoException  if something bad happens Implements Sct::Streamer. Definition at line 18 of file SingleVariableTestResultStreamer_v2.cpp. References Sct::IoError.

void SctData::IO::SingleVariableTestResultStreamer_v2::write (  OStream &  out, const Streamable &  ob, const IOManager &  manager )  const throw (LogicError, IoError) [virtual]

Publishes ob to out. Parameters: out  The OStream. ob  The Streamable object to stream. manager  the IOManager to use Exceptions: IoException  if something bad happens Implements Sct::Streamer. Definition at line 22 of file SingleVariableTestResultStreamer_v2.cpp. References SctData::SingleVariableTestResult::getNOptima(), SctData::SingleVariableTestResult::getOptimum(), and Sct::IoError.

Here is the call graph for this function:

---

Field Documentation

bool SctData::IO::SingleVariableTestResultStreamer_v2::inMap [static, private]

The static dummy variable for the IOManager map. Definition at line 16 of file SingleVariableTestResultStreamer_v2.cpp.

---

The documentation for this class was generated from the following files:

• SingleVariableTestResultStreamer_v2.h
• SingleVariableTestResultStreamer_v2.cpp

---
