SctArchiving::IOManagerDB Class Reference

This IOManager reads from and writes to a database. More...

#include <IOManagerDB.h>

Inheritance diagram for SctArchiving::IOManagerDB:

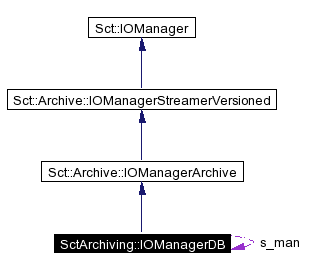

[legend]Collaboration diagram for SctArchiving::IOManagerDB:

[legend]

Public Member Functions
virtual void	write (const Sct::Serializable &ob, const Sct::IOParams *params=0) const
	write using default streamers
virtual shared_ptr< Sct::Serializable >	read (const string &name, const Sct::IOParams *params=0) const
	read using appropriate streamers
virtual std::string	status () const
	get some status information
Static Public Member Functions
IOManagerDB &	instance ()
	retrieve access to singleton
Private Member Functions
	IOManagerDB ()
	constructor.
MysqlQuery	getQuery () const
	get a null query.
void	prepareInsertion (const Sct::Serializable &ob, MysqlQuery &q) const
	change query to prepare to insert ob.
Static Private Member Functions
const SctData::ResultHeader &	getHeader (const Sct::Serializable &ob)
	get the header from a TestResult or ScanResult
std::string	getQueryMatching (const string &name)
	make the "`WHERE'" part of the query matching the name by building a IOName from it.
std::string	getTable (const Sct::Serializable &ob)
	find the name of the table which the ob should to into.
Private Attributes
boost::shared_ptr< ZlibStringCompressor >	m_compressor
	keep a string compressor handy to zip and unzip BLOB data.
boost::shared_ptr< MysqlConnection >	m_connection
	pointer to the database connection
Static Private Attributes
IOManagerDB *	s_man
	pointer to singleton

---

Detailed Description

This IOManager reads from and writes to a database.

It is expected to be used in archival, and so also makes use of streamer versioning by inheriting from IOManagerStreamerVersioned. Uses a mysql back-end.

Definition at line 21 of file IOManagerDB.h.

---

Constructor & Destructor Documentation

SctArchiving::IOManagerDB::IOManagerDB (   )  [private]

constructor. Definition at line 36 of file IOManagerDB.cpp. References m_compressor, and m_connection. Referenced by instance().

---

Member Function Documentation

const SctData::ResultHeader & SctArchiving::IOManagerDB::getHeader (  const Sct::Serializable &  ob  )  [static, private]

get the header from a TestResult or ScanResult Definition at line 68 of file IOManagerDB.cpp. References Sct::Streamable::getClassName(), and Sct::Serializable::getUniqueID(). Referenced by prepareInsertion().

Here is the call graph for this function:

Query SctArchiving::IOManagerDB::getQuery (   )  const [private]

get a null query. Definition at line 63 of file IOManagerDB.cpp. References m_connection. Referenced by read(), and write().

std::string SctArchiving::IOManagerDB::getQueryMatching (  const string &  name  )  [static, private]

make the "`WHERE'" part of the query matching the name by building a IOName from it. Referenced by read().

string SctArchiving::IOManagerDB::getTable (  const Sct::Serializable &  ob  )  [static, private]

find the name of the table which the ob should to into. Definition at line 104 of file IOManagerDB.cpp. Referenced by prepareInsertion().

IOManagerDB & SctArchiving::IOManagerDB::instance (   )  [static]

retrieve access to singleton Definition at line 46 of file IOManagerDB.cpp. References IOManagerDB(), and s_man.

Here is the call graph for this function:

void SctArchiving::IOManagerDB::prepareInsertion (  const Sct::Serializable &  ob, MysqlQuery &  q )  const [private]

change query to prepare to insert ob. Definition at line 86 of file IOManagerDB.cpp. References Sct::Streamable::getClassName(), Sct::Archive::IOManagerArchive::getCompressionLevel(), SctData::ResultHeader::getEndTime(), getHeader(), SctData::UniqueID::getModule(), SctData::UniqueID::getRunNumber(), SctData::UniqueID::getScanNumber(), SctData::ResultHeader::getStartTime(), getTable(), SctData::ResultHeader::getUniqueID(), m_compressor, and Sct::Archive::IOManagerStreamerVersioned::writeImpl(). Referenced by write().

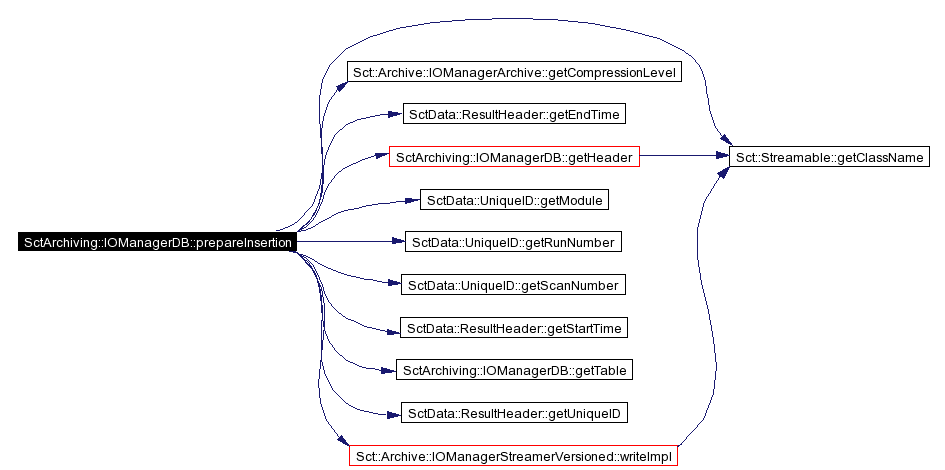

Here is the call graph for this function:

boost::shared_ptr< Serializable > SctArchiving::IOManagerDB::read (  const string &  name, const Sct::IOParams *  params = 0 )  const [virtual]

read using appropriate streamers Definition at line 146 of file IOManagerDB.cpp. References Sct::Archive::IOManagerStreamerVersioned::getMutex(), getQuery(), getQueryMatching(), Sct::Archive::IOManagerStreamerVersioned::getReadVersionMap(), m_compressor, Sct::Archive::IOManagerStreamerVersioned::readImpl(), and Sct::Archive::IOManagerStreamerVersioned::setReadMode().

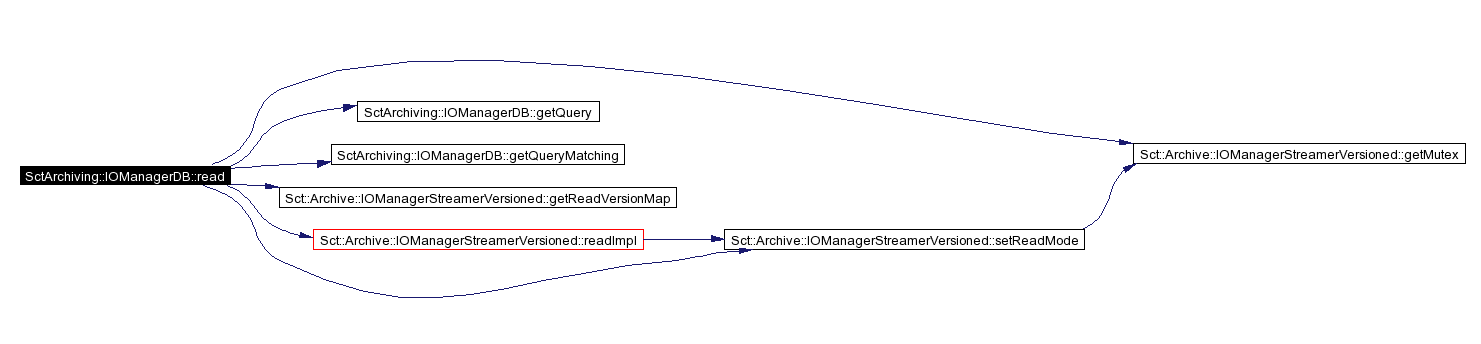

Here is the call graph for this function:

std::string SctArchiving::IOManagerDB::status (   )  const [virtual]

get some status information Implements Sct::Archive::IOManagerArchive. Definition at line 51 of file IOManagerDB.cpp. References m_compressor.

void SctArchiving::IOManagerDB::write (  const Sct::Serializable &  ob, const Sct::IOParams *  params = 0 )  const [virtual]

write using default streamers Definition at line 108 of file IOManagerDB.cpp. References Sct::Archive::IOManagerStreamerVersioned::getMutex(), getQuery(), prepareInsertion(), and Sct::Archive::IOManagerStreamerVersioned::setReadMode().

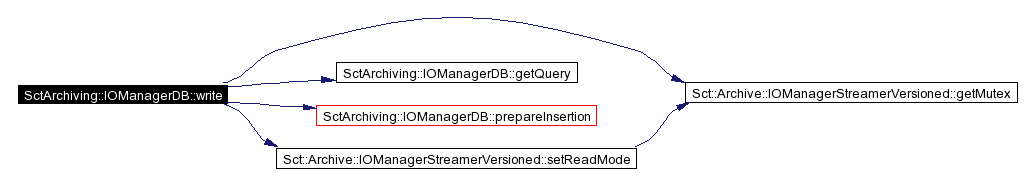

Here is the call graph for this function:

---

Field Documentation

boost::shared_ptr<ZlibStringCompressor> SctArchiving::IOManagerDB::m_compressor [private]

keep a string compressor handy to zip and unzip BLOB data. Definition at line 39 of file IOManagerDB.h. Referenced by IOManagerDB(), prepareInsertion(), read(), and status().

boost::shared_ptr<MysqlConnection> SctArchiving::IOManagerDB::m_connection [private]

pointer to the database connection Definition at line 40 of file IOManagerDB.h. Referenced by getQuery(), and IOManagerDB().

IOManagerDB * SctArchiving::IOManagerDB::s_man [static, private]

pointer to singleton Definition at line 44 of file IOManagerDB.cpp. Referenced by instance().

---

The documentation for this class was generated from the following files:

• IOManagerDB.h
• IOManagerDB.cpp

---
