Java Graphical User Interface to the SCT Database

Detector Tests Tab

Select this tab to retrieve any test information about any SCT detector.

Detector Type Selection
Use this section to select which detectors you want to view information on.

Manufacturer - Hamamtsu or CiS
Type - shape of detector
Institute - for the Manufacturer Data selection tab (see below), then this is the institute that the detector was sent to when it left the manufacturer. For the ATLAS Data tab, this is the institute where the test was performed
Serial Number range - the range in serial numbers you want to generate reports for, eg from 1 to 99999. Note: this corresponds to the last 5 digits of the 14-digit serial number
Current Locn - restrict your report to include detectors currently located at this institute

Manufacturer Data and ATLAS Data Tabs:
Select the data you want to view, for the detectors you selected in the 'Detector Type Selection' section. You can sort the data by selecting the appropriate item in the 'Order Results By' menu.

Examples of Report Generation

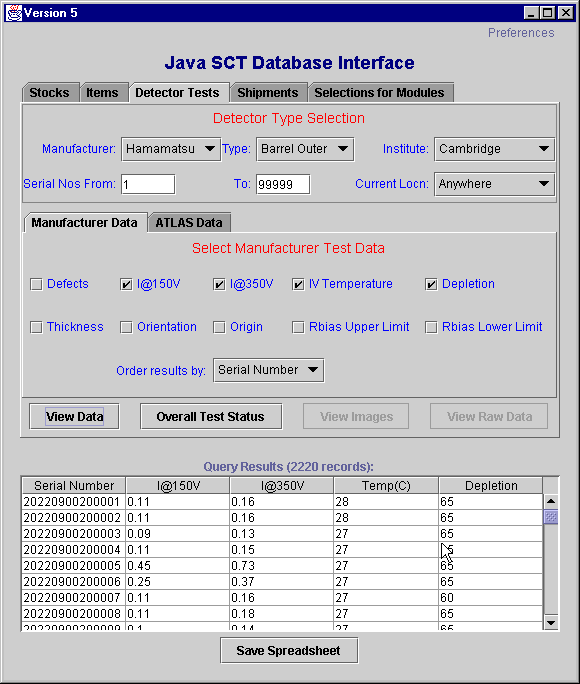

Example 1 - view Manufacturer Data summary for all Hamamatsu Barrel detectors delivered to Cambridge

Manufacturer - Hamamatsu
Device Type - Barrel Outer
Institute - Cambridge
Serial No from: - 1 (ie the lowest number possible)
Serial No to: - 99999 (ie the highest number possible)
Current Locn - 'Anywhere' (ie I don't care where the detector is now)
Select 'Manufacturer Data' tab
Select the data you want to see

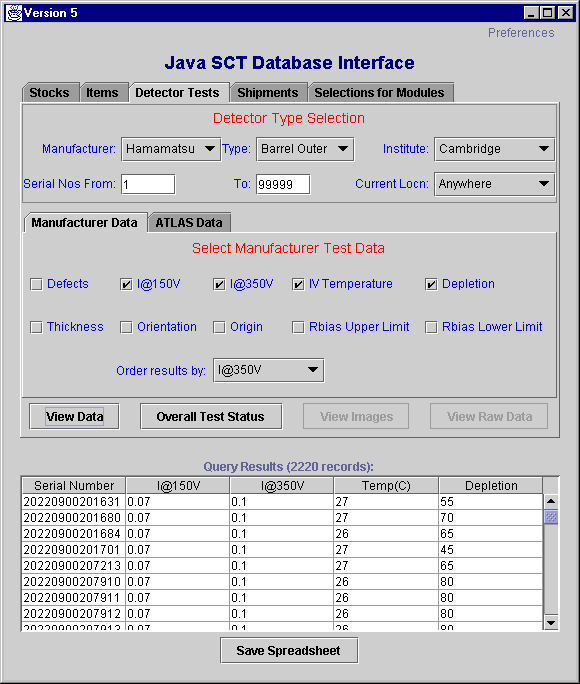

Example 2 - view Manufacturer Data summary for all Hamamatsu Barrel detectors delivered to Cambridge, ordered by lowest current detectors first

Manufacturer - Hamamatsu

Device Type - Barrel Outer

Institute - Cambridge

Serial No from: - 1 (ie the lowest number possible)

Serial No to: - 99999 (ie the highest number possible)

Current Locn - 'Anywhere' (ie I don't care where the detector is now)

Select 'Manufacturer Data' tab

Select the data you want to see

Select 'Order by 'I@350V'

Click on 'View Data'

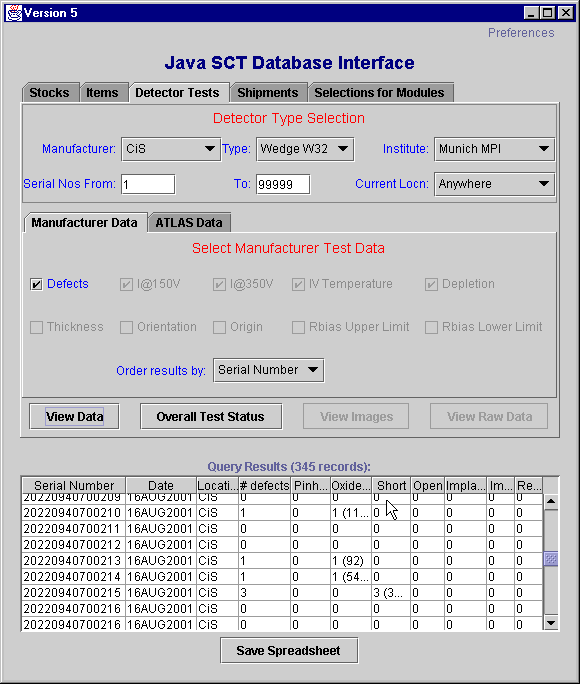

Example 3 - view manufacturer-supplied strip defects for all CiS W32 Wedge detectors delivered to Munich-MPI

Manufacturer - CiA

Device Type - W32

Institute - Munich MPI

Serial No from: - 1 (ie the lowest number possible)

Serial No to: - 99999 (ie the highest number possible)

Current Locn - 'Anywhere' (ie I don't care where the detector is now)

Select 'Manufacturer Data' tab

Select 'Defects' box

Click on 'View Data'

Example 4 - view IV data taken by Geneva for any W32 Hamamatsu detectors

Manufacturer - Hamamatsu

Device Type = W32

Institute - Geneva

Serial No from: - 1 (ie the lowest number possible)

Serial No to: - 99999 (ie the highest number possible)

Current Locn - 'Anywhere' (ie I don't care where the detector is now)

Select 'ATLAS Data' tab

Select 'IV' box

Click on 'View Data'

Example 5 - view raw data listing of IV scan taken by Geneva for detector 20220900700013

select Detector Tests Tab

Manufacturer - Hamamatsu

Device Type - W32

Institute - Geneva

Serial No from: - 13

Serial No to: - 13

Current Locn - 'Anywhere' (ie I don't care where the detector is now)

Select 'ATLAS Data' tab

Select 'IV' box

Click on 'View Data'

When data listing is complete, select row for detector 20220900700013

Click on 'View Raw Data'

Example 6 - View summary of all visual inspections of Hamamatsu barrels at Cambridge

Manufacturer - Hamamatsu

Device Type - Barrel Outer

Institute - Cambridge

Serial No from: - 1 (ie the lowest number possible)

Serial No to: - 99999 (ie the highest number possible)

Current Locn - 'Anywhere' (ie I don't care where the detector is now)

Select 'ATLAS Data' tab

Select 'Visual' box

Click on 'View Data'

To view any images, or raw data, select the appropriate row in the table as shown

Example 7 - View visual sinpection images of detector 20220900202658 taken at Cambridge

select 'Detector Tests' tab

Manufacturer - Hamamatsu

Device Type = Barrel Outer

Institute - Cambridge

Serial No from: - 2658

Serial No to: - 2658

Current Locn - 'Anywhere' (ie I don't care where the detector is now)

Select 'ATLAS Data' tab

Select 'Visual' box

Click on 'View Data'

Click on 'View Images'

Example 8 - View status of detector testing at an institute
By clicking the 'Overall Test Status' button, you can list the status of all tests carried out by a specified ATLAS institute on the selected range of detectors.

Suppose, for example, you to view the number, percentage, and pass/problem/fail perecentages of all Hamamatsu barrel detectors tested at Cambridge between 20220900201000 and 20220900209000.

In 'Detector Type Selection', select the following:

Manufacturer: Hamamatsu

Type: Barrel Outer

Institute: Cambridge

Serial Nos from 1000 to 9000

Current Locn: Anywhere (ie don't care where they are now)

Select ATLAS Data tab

Click on 'Overall Test Status'

For each type of test, the status flag is listed (Pass, Problem or FAIL), together with an 'Overall Status' column indicating the overall status for that detector (which is 'FAIL' if ANY test fails, 'Problem' if any test shows a problem, or 'Pass' if all tests are ok. NOTE: if the compulsory tests (IV and visual check) have not been completed, the overall status is listed as '*Pending', indicating that the overall status is not yet known).
