What is a Spark Chamber?

A spark chamber is a stack of conducting plates separated by a gas gap. When an energetic ionising particle passes through the device, a control circuit applies a high voltage between each pair of neighbouring plates. The voltage generates a spark between each of the plates. The spark prefers to form at the spot where the particle passed through, due to the ionisation trail left by the particle. The path of the traversing particle is thus revealed by the array or line of sparks, which may be seen or photographed through the side of the device. They hey-day of the spark chamber as a research tool for detecting high energy cosmic rays came to an end in the 1960s when it was replaced by better techniques (drift chambers, bubble chambers, silicon detectors etc). Nevertheless, spark chambers are still designed for museums and used in education as they are an exciting, visually direct and simple way of demonstrating cosmic rays to an audience.

Find pictures in the Gallery

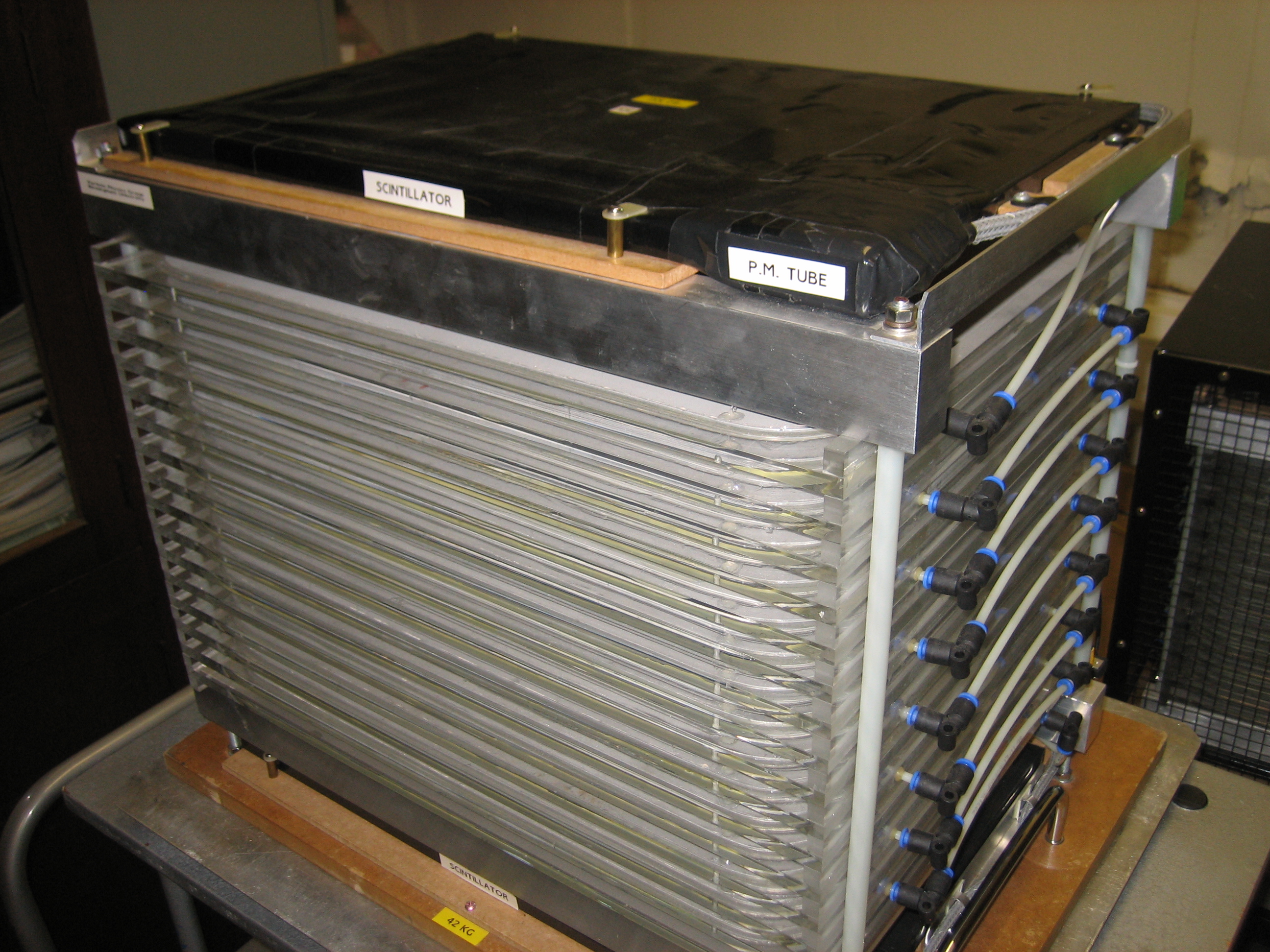

Sparks in the Birmingham spark chamber on which ours will be based The Birmingham spark chamber on which ours will be based

Intended impact

When a member of the public first sees a spark chamber in action, they are usually astonished. Although they may have heard of "Cosmic Rays" and "sub-atomic particles", they usually believe that these are ephemeral things that have nothing to do with reality.

A working spark chamber demolishes this notion instantly, demonstrating that each person is being "stabbed" in every minute of every day by a "cosmic rain" made of the same subatomic particles we observe in CERN. Adults and school children alike are astounded to learn that some of the particles generating the rays come from cataclysmic events in or outside the galaxy that are not yet understood by the science of today.

In two minutes, this piece of apparatus can:

(1) demonstrate the "reality" of particle physics,

(2) show the existence of sub-atomic particles,

(3) visualise real Cosmic Rays in real time,

(4) link particle physics "on earth" to astrophysics and astronomy "in space",

(5) excite people with the revelation that the source/existence of the highest energy cosmic rays is still a major topic of cutting-edge research, and remains largely unknown,

(6) encourage further discussion between demonstrators and the public on the work of CERN, astrophysicists and other STFC research areas.

Phases of project development

(1) The first objectve is to evaluate the best design for the chamber. To first order we aim to build a transportable spark-chamber identical to the one built and run successfully by Birmingham University for almost ten years (also supported by Small Award Funding). Their chamber has seen much use in the midlands. We hope to be able to make use of advances in technology since the Birmingam chamber was built to reduce weight, reliance on HV, improve reliability, and perhaps reduce cost. Some test pieces will have to be built in order to determine the optimal design - and large fraction of the money requested accounts for this. CHaOS and the Cambridge HEP group will work together on the design at all times to ensure the transportability and safety of the chamber.

(2) Having finalized the chamber design, we will build it.

(3) Exploitation phase: Once built, the chamber will be used in four areas:

(3a) The chamber will become a part of the CHaOS Road-Show (a multi-week summer event) and other CHaOS events throughout the year will take the chamber into schools, town halls and county shows around the country. To give an example of audience numbers: the 2007 "Road-Show" reached over 4000 people, and was accomplished over 20 days of demonstrating over a 4 week tour, and exhibited in Devon, Milton Keynes, Oxford, Nottinghamshire, Suffolk, Monmouthshire, Herefordshire and Lincolnshire. The annual "Crash Bang Squelch" event in Cambridge draws in a further crowd of 1000.

(3b) The chamber will form the centre-piece of the Particle Physics contribution to "The Physics at Work outreach programme" which gains an annual attendance of 2100 school children, as well as any other smaller outreach days.

(3c) The chamber will make its way to schools as a demo to support "schools talks" requested of suitably trained members of the Particle Physics staff.


The spark chamber itself will (subject to changes in the design that may be determined during the development phase) be modelled on the one successfully operated by Birmingham University. This will make it likely to be a sandwich of aluminuim plates held at alternating high voltage, separated by gaps (in which the sparks will appear) containing a re-fillable Helium-Neon gas mixture. The gas to be retained behind transparent windows also acting as insualtors for the aluminum plates. Above and below, scintilators and photomultipliers or silicon avalance photo diodes (APDs) to trigger the HV supply to the plates on passage of a cosmic ray. The chamber and any necessary electrical apparatus to be contained within a Faraday cage to reduce unwanted EM-interference, and the whole to be sufficiently enclosed/insulated such that the unit presents no HV risk to viewers or demonstrators. The unit to be constructed to survive up to two weeks off-site in a "back of the van" environment were access to maintenance facilities will be limited. This will place particular constraints on mechanical integrity, weight, packaging, and how to ensure gas-tightness or refillability. Once built the project will progress to an exploitation phase where the emphasis will be on providing support, such as (but not limited to): maintenance, availability of consumables (eg gases), training for demonstrators, and production of associated publicity material, eg posters, which may be used to accompany the unit.
